Adjustable Pipe Clamp Scaffolding Hot Dip Galvanized Steel Pipe Scaffolding With High Bearing Capacity

Adjustable Pipe Clamp Scaffolding Hot Dip Galvanized Steel Pipe Scaffolding With High Bearing Capacity

Brand Name:	WKS
MOQ:	200/ Set
Price:	US $1.00 - 2.00/ Set
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Pipe Clamp Scaffolding

Material:

Steel

Surface Treatment:

Hot Dip Galvanized Or PVC Coated

Design Style:

Industrial

Colour:

Customer's Request

Size:

3.56 Kg/m -4.37 Kg/m

Advantage:

Stable

Packing:

37 Or 61 Pieces/bundle.

Keyword:

Quick Clamp Pipe Fittings

Usage:

Buidling Constrcution

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Adjustable Pipe Clamp Scaffolding

Hot Dip Galvanized Steel Pipe Scaffolding

High Bearing Capacity Steel Pipe Scaffolding

Product Description

Hot Dip Galvanized Tube and Clamp Scaffold with High Bearing Capacity and Adjustable Steel Pipe Lengths

Tube and clamp scaffold is a versatile scaffolding system primarily composed of steel tubes and couplers. This system enables connection of steel pipes and couplers at any interval, subject to engineering regulations, creating a flexible geometry scaffold system with strong adaptability to buildings and structures with complex geometries for construction and maintenance work platforms.

This scaffold type is ideal where extensive versatility is required and is commonly used in construction worldwide. Horizontal tubes and walking decks can be positioned at any height along vertical tubes, while vertical tubes (legs) can be spaced at any distance up to engineering maximums.

Tube and clamp equipment offers efficient dismantling, storage, and transportation compared to other scaffolding types, featuring the highest built volume to storage space ratio.

System Advantages

High Bearing Capacity: Single tube columns typically support 15kN to 35kN when meeting specified dimensions and structure requirements
Easy Assembly & Flexible Setup: Adjustable steel pipe lengths and simple fastener connections accommodate various building and structural configurations
Cost Effective: Careful design and improved steel pipe turnover optimize material consumption with approximately 15 kg of steel per square meter
Long Service Life: Galvanized surface treatment ensures extended durability and performance

Specifications & Features

Steel Tube Specifications

Execution Standard	Tube Diameter	Tube Wall Thickness	Tube Weight	Tube Length	Zinc Content
EN39	48.3mm	3.2mm	3.56kg/m	0.3-6.3m	≥40 microns
JGJ130	48.3mm	3.6mm	3.97kg/m	0.3-6.3m	≥40 microns
EN74	48.3mm	4mm	4.37kg/m	0.3-6.3m	≥40 microns

Steel Tube Specifications: EN 39/BS 1139 / ASTM A513-07 standards, Q235 or Q345 steel material, hot dip galvanized or PVC coated surface treatment

British Type Couplers

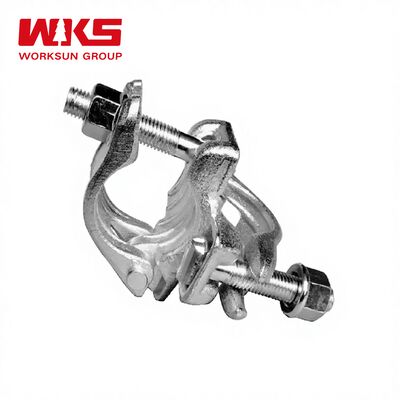

Double Coupler

Types	Size(mm)	Weight
Forged British Type	48.3x48.3	1.05KG

Connects two steel tubes that intersect vertically, relying on friction force between coupler and steel tube to transfer load.

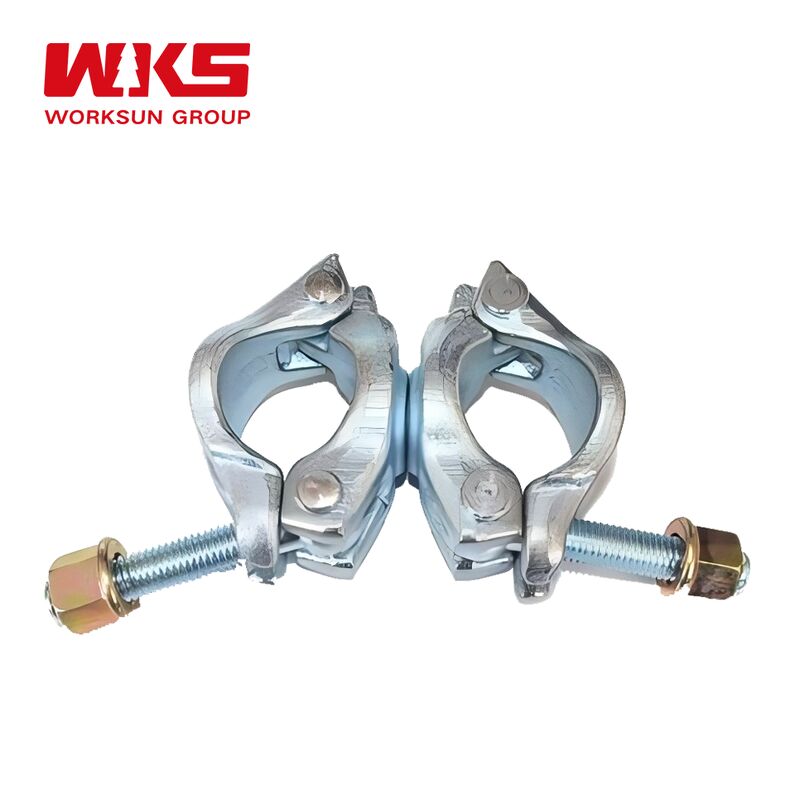

Swivel Coupler

Types	Size(mm)	Weight
Forged British Type	48.3x48.3	1.25KG

Connects two steel pipes that intersect at any angle.

Sleeve Coupler

Types	Size(mm)	Weight
Forged British Type	48.3x48.3	0.95KG

Connects and extends the length of two steel pipes.

Japanese Type Couplers

Double Coupler

Types	Size(mm)	Weight
Pressed Japanese type	48.6*48.6	0.55KG

Connects two steel tubes that intersect vertically, relying on friction force between coupler and steel tube to transfer load.

Swivel Coupler

Types	Size(mm)	Weight
Pressed Japanese type	48.6*48.6	0.58KG

Connects two steel pipes that intersect at any angle.

Sleeve Coupler

Types	Size(mm)	Weight
Pressed japanses type	48.6*48.6	0.60KG

Connects and extends the length of two steel pipes.

Chinese Type Couplers

Double Coupler

Types	Size(mm)	Weight
Cast steel Chinese Type	48.3x48.3	1KG

Connects two steel tubes that intersect vertically, relying on friction force between coupler and steel tube to transfer load.

Swivel Coupler

Types	Size(mm)	Weight
Cast steel Chinese Type	48.3x48.3	1KG

Connects two steel pipes that intersect at any angle.

Sleeve Coupler

Types	Size(mm)	Weight
Cast steel Chinese Type	48.3x48.3	1KG

Connects and extends the length of two steel pipes.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We operate as a trading company for export business, with ownership of a production base operating for over 20 years, specializing in templates and scaffolding related products.

What do you do?

We provide professional implementation solutions, high-quality products, and efficient technical support services in templates and scaffolding.

Do you provide samples? Is the sample chargeable or free?

Yes, we provide samples. Customers are responsible for shipping costs.

How to get quotation?

Provide a required list with product quality, specifications, and quantity details, or supply construction drawings for our engineers to calculate material requirements and provide quotation.

How long is your delivery cycle?

Standard delivery is approximately 5 days. Fully customized production typically requires 10-15 days.

What is your terms of payment?

T/T 30% deposit payment before manufacture, with 70% balanced payment against B/L Copy, or L/C.
