| Brand Name: | WKS |
| MOQ: | 200/ Set |
| Price: | US $1.00 - 2.00/ Set |
| Payment Terms: | T/T |
| Supply Ability: | 1000 piece in 10 days |
Tube and Clamp Scaffold (also known as tubular scaffolding) is a traditional yet highly versatile access system consisting of steel tubes connected by forged clamps. Unlike modular systems, it offers infinite adjustability, making it the preferred choice for complex structures, irregular facades, and heavy-duty industrial maintenance where standard frames cannot fit. It is widely used in building construction, bridge work, and plant shutdowns.
Ideal for contractors needing a customizable and budget-friendly solution for complex construction sites.
| Execution Standard | Tube Diameter | Tube Wall Thickness | Tube Weight | Tube Length | Zinc Content |
|---|---|---|---|---|---|
| EN39 | 48.3mm | 3.2mm | 3.56kg/m | 0.3-6.3m | ≥40 microns |
| JGJ130 | 48.3mm | 3.6mm | 3.97kg/m | 0.3-6.3m | ≥40 microns |
| EN74 | 48.3mm | 4mm | 4.37kg/m | 0.3-6.3m | ≥40 microns |
Steel Tube Specifications: EN 39/BS 1139 / ASTM A513-07 standards, Q235 or Q345 steel material, hot dip galvanized or PVC coated surface treatment
| Types | Size(mm) | Weight |
|---|---|---|
| Forged British Type | 48.3x48.3 | 1.05KG |
Connects two steel tubes that intersect vertically, relying on friction force between coupler and steel tube to transfer load.
| Types | Size(mm) | Weight |
|---|---|---|
| Forged British Type | 48.3x48.3 | 1.25KG |
Connects two steel pipes that intersect at any angle.
| Types | Size(mm) | Weight |
|---|---|---|
| Forged British Type | 48.3x48.3 | 0.95KG |
Connects and extends the length of two steel pipes.

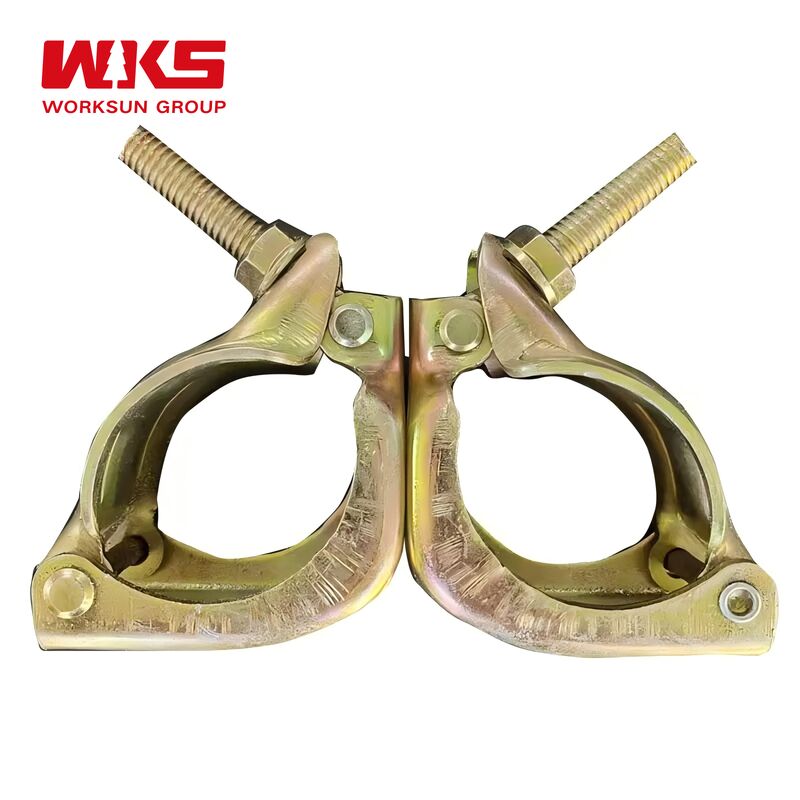

| Types | Size(mm) | Weight |
|---|---|---|
| Pressed Japanese type | 48.6*48.6 | 0.55KG |
Connects two steel tubes that intersect vertically, relying on friction force between coupler and steel tube to transfer load.
| Types | Size(mm) | Weight |
|---|---|---|
| Pressed Japanese type | 48.6*48.6 | 0.58KG |
Connects two steel pipes that intersect at any angle.
| Types | Size(mm) | Weight |
|---|---|---|
| Pressed japanses type | 48.6*48.6 | 0.60KG |
Connects and extends the length of two steel pipes.
| Types | Size(mm) | Weight |
|---|---|---|
| Cast steel Chinese Type | 48.3x48.3 | 1KG |
Connects two steel tubes that intersect vertically, relying on friction force between coupler and steel tube to transfer load.
| Types | Size(mm) | Weight |
|---|---|---|
| Cast steel Chinese Type | 48.3x48.3 | 1KG |
Connects two steel pipes that intersect at any angle.
| Types | Size(mm) | Weight |
|---|---|---|
| Cast steel Chinese Type | 48.3x48.3 | 1KG |
Connects and extends the length of two steel pipes.
We operate as a trading company for export business, with ownership of a production base operating for over 20 years, specializing in templates and scaffolding related products.
We provide professional implementation solutions, high-quality products, and efficient technical support services in templates and scaffolding.
Yes, we provide samples. Customers are responsible for shipping costs.
Provide a required list with product quality, specifications, and quantity details, or supply construction drawings for our engineers to calculate material requirements and provide quotation.
Standard delivery is approximately 5 days. Fully customized production typically requires 10-15 days.
T/T 30% deposit payment before manufacture, with 70% balanced payment against B/L Copy, or L/C.
