| Brand Name: | WKS |
| MOQ: | 200/Piece |
| Price: | US $6.00 - 11.00/ Piece |
| Payment Terms: | T/T |
| Supply Ability: | 1000 piece in 10 days |

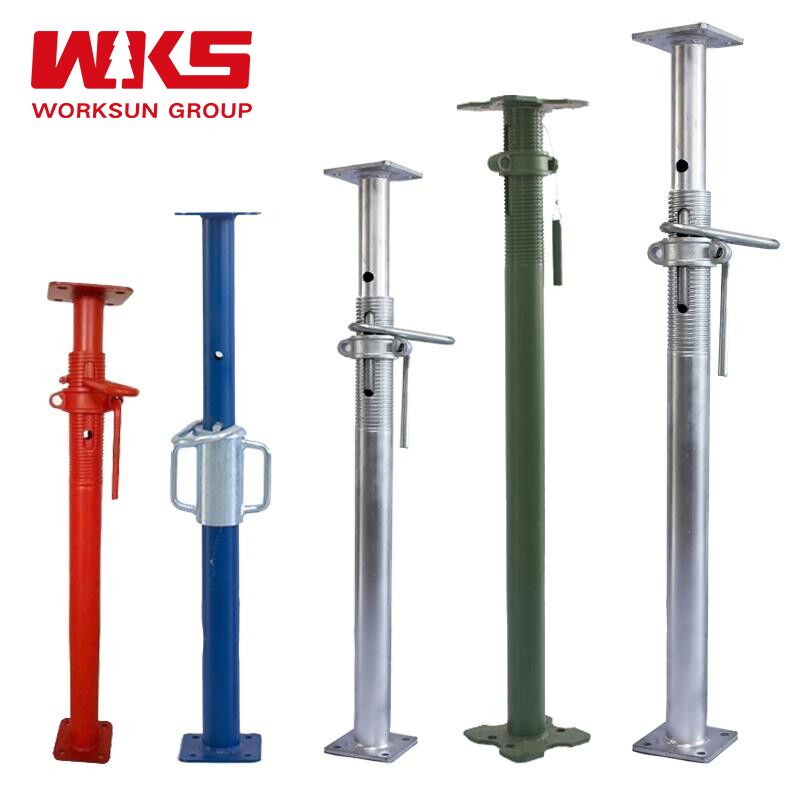

Adjustable Steel Prop (Acrow Prop) is a telescopic steel column used for temporary vertical support of concrete slabs, beams, and formwork during construction. It consists of an outer tube, inner tube, pin-hole coarse adjustment, and threaded fine-adjustment collar, providing reliable load-bearing capacity for high-rise buildings and civil engineering projects.
Our Adjustable Steel Props feature full-penetration welding and cold-rolled threads for maximum joint strength. Compared to traditional pipe scaffolding, they require 30-50% fewer units per square meter, drastically cutting labor and transport costs while providing certified load capacity for demanding construction applications.
| Code | Adjustable Height | Inner Tube | Outer Tube | Tube Thickness |
|---|---|---|---|---|
| WKS-HDP601730 | 1.7 - 3.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP601830 | 1.8 - 3.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP601832 | 1.8 - 3.2 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP602035 | 2.0 - 3.5 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP602036 | 2.0 - 3.6 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP602240 | 2.2 - 4.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP602545 | 2.5 - 4.5 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP602750 | 2.7 - 5.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP603050 | 3.0 - 5.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| Code | Adjustable Height | Inner Tube | Outer Tube | Tube Thickness |
|---|---|---|---|---|
| WKS-LDPS480611 | 0.6 - 1.1 m | 40 mm | 48 mm | 1.4 - 2.5 mm |
| WKS-LDPS480814 | 0.8 - 1.4 m | 40 mm | 48 mm | 1.4 - 2.5 mm |
| WKS-LDPS481629 | 1.6 - 2.9 m | 40 mm | 48 mm | 1.4 - 2.5 mm |
| WKS-LDPS481832 | 1.8 - 3.2 m | 40 mm | 48 mm | 1.4 - 2.5 mm |
| WKS-LDPS482036 | 2.0 - 3.6 m | 40 mm | 48 mm | 1.4 - 2.5 mm |
| WKS-LDPS482240 | 2.2 - 4.0 m | 40 mm | 48 mm | 1.4 - 2.5 mm |
| Code | Adjustable Height | Inner Tube | Outer Tube | Tube Thickness |
|---|---|---|---|---|
| WKS-LDPI481629 | 1.6 - 2.9 m | 48 mm | 56 mm | 1.4 - 2.5 mm |
| WKS-LDPI481832 | 1.8 - 3.2 m | 48 mm | 56 mm | 1.4 - 2.5 mm |
| WKS-LDPI481832 | 2.0 - 3.5 m | 48 mm | 56 mm | 1.4 - 2.5 mm |
| WKS-LDPI482036 | 2.0 - 3.6 m | 48 mm | 56 mm | 1.4 - 2.5 mm |
| WKS-LDPI482240 | 2.2 - 4.0 m | 48 mm | 56 mm | 1.4 - 2.5 mm |
| Code | Adjustable Height | Inner Tube | Outer Tube | Tube Thickness |
|---|---|---|---|---|
| WKS-PPP561730 | 1.7 - 3.0 m | 48 mm | 56 mm | 1.4 - 4.0 mm |
| WKS-PPP562035 | 2.0 - 3.5 m | 48 mm | 56 mm | 1.4 - 4.0 mm |
| WKS-PPP562240 | 2.2 - 4.0 m | 48 mm | 56 mm | 1.4 - 4.0 mm |
| WKS-PPP562545 | 2.5 - 4.5 m | 48 mm | 56 mm | 1.4 - 4.0 mm |
| WKS-PPP562750 | 2.7 - 5.0 m | 48 mm | 56 mm | 1.4 - 4.0 mm |
| WKS-PPP601730 | 1.7 - 3.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-PPP602035 | 2.0 - 3.5 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-PPP602240 | 2.2 - 4.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-PPP602545 | 2.5 - 4.5 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-PPP602750 | 2.7 - 5.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| Code | Adjustable Height | Inner Tube | Outer Tube | Weight | Load-Bearing Range |
|---|---|---|---|---|---|
| WKS-ALP800120 | 0.8 - 1.2 m | 715 mm | 421 mm | 10.47 kg | 70 - 90 kN |
| WKS-ALP145250 | 1.45 - 2.5 m | 1365 mm | 1071 mm | 15.75 kg | 60 - 70 kN |
| WKS-ALP198350 | 1.98 - 3.5 m | 1865 mm | 1571 mm | 19.45 kg | 42 - 88 kN |
| WKS-ALP260480 | 2.6 - 4.8 m | 2515 mm | 2221 mm | 24.6 kg | 25 - 85 kN |
| WKS-ALP430625 | 4.3 - 6.25 m | 4211 mm | 1975 mm | 30.48 kg | 20 - 56 kN |
Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in production and processing for over 20 years.
How can I get a quotation?
For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects requiring plastic formwork, our consultants will communicate with you and develop application plans based on engineering drawings.
How long does it take to complete the plan and quotation?
Generally takes about 5-8 days to complete specific plans and detailed quotations after receiving engineering drawings.
Can you provide free samples?
Yes, we can provide samples. You will need to pay for the shipping cost.
How long is the estimated delivery time?
According to project complexity, usually takes 30-60 days to complete stocking. More accurate delivery times are estimated during planning and quotation.
Is the plastic template prone to deformation?
In long-term high temperature environments, concrete pouring may cause slight deformation. We recommend using aluminum alloy formwork or steel frame wood formwork systems in high temperature areas.
What are the defects of the plastic template system?
Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.
What is the payment method you require?
Payment ≤1,000 USD: 100% in advance. Payment ≥10,000 USD: 30% T/T in advance, balance before shipment. Or L/C.
