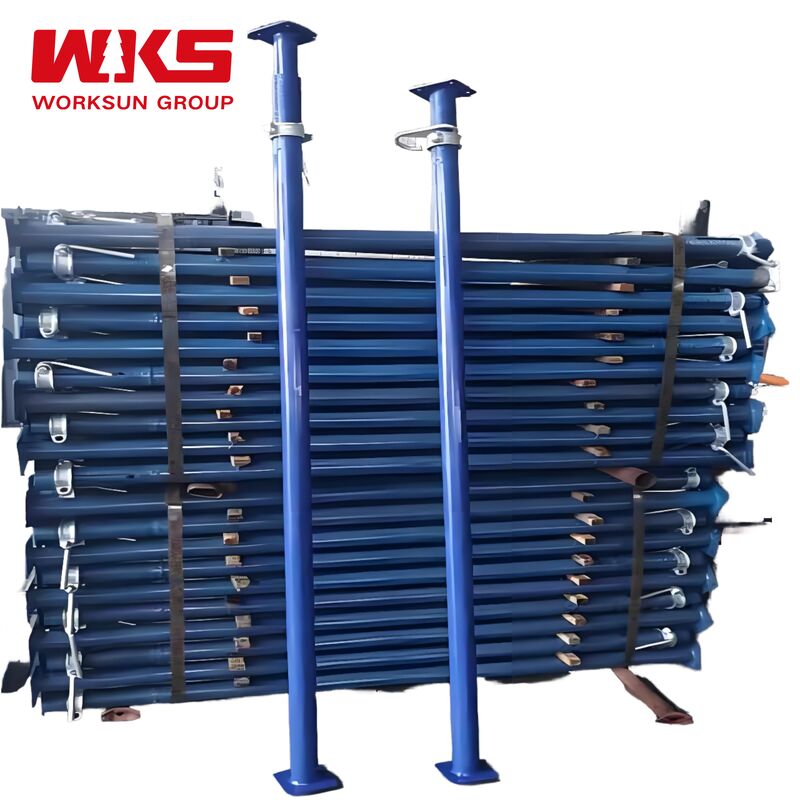

Blue Adjustable Steel Prop 1.6m - 3.0m Scaffolding Steel Prop For Concrete Slab and Beam Support

Blue Adjustable Steel Prop 1.6m - 3.0m Scaffolding Steel Prop For Concrete Slab and Beam Support

Brand Name:	WKS
MOQ:	200/Piece
Price:	US $6.00 - 11.00/ Piece
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Adjustable Steel Prop

Scaffolding Part Type:

Scaffolding Props

Colour:

Blue Red Yellow Green Silver Orange Purple Black Or Customized

Usage:

Construction Usage

Type:

Spain/Italy/Middle East

Thickness:

1.4mm-4mm

Size:

2200-4000mm Or Customized

Inner Tube Diameter:

48mm

Outer Tube Diameter:

60mm

Surface Treatment:

Painting, Powder Coating, Electro-galvanizing Or Hot-dip Galvanizing

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Blue Adjustable Steel Prop

Adjustable Steel Prop 1.6m

3.0m Scaffolding Steel Prop

Product Description

Adjustable Steel Prop 1.6m to 3.0m for Concrete Slab and Beam Support

Product Overview

Adjustable Steel Prop (Acrow Prop/Post Shore) is a heavy-duty telescopic support system for vertical shoring in concrete construction. Engineered to provide reliable temporary support for slabs, beams, and walls, it ensures safe load transfer during concrete pouring and curing stages.

Features & Functions

Telescopic Height Adjustment: Combines pin-hole coarse adjustment with threaded sleeve fine-tuning for precise height setting, accommodating varying floor heights and uneven surfaces.
High Load-Bearing Capacity: Designed to withstand significant vertical loads (typically 20-50 kN), providing stable support for wet concrete, workers, and construction equipment.
Rapid Deployment: Simple two-tube (inner/outer) design with minimal components enables quick setup and striking by general labor, speeding up project cycles.
Corrosion Resistance: Available in hot-dip galvanized or painted finishes to withstand harsh site conditions and ensure long service life with minimal maintenance.

Key Specifications

Standard Sizes: 48/60 series (Medium Duty), 75/60 series (Heavy Duty)
Adjustable Height Range: 1.5m - 5.5m (varies by model)
Material: Q235 Steel, Wall Thickness: 2.0mm - 3.5mm
Working Load: 20 kN - 50 kN (Class B/C per EN 1065)
Top/Bottom: U-Head, Fork Head, or Square Plate (120x120mm)

Competitive Advantages

Cost-Efficient Shoring: Replaces cumbersome traditional scaffolding with a compact, reusable system, reducing rental costs and on-site labor time.
Space-Saving Design: Narrow profile allows for dense placement in tight spaces and easy stacking for transport and storage.
Global Compliance: Manufactured to EN 1065 standards, ensuring compatibility with international formwork systems and meeting stringent safety regulations.

Heavy Duty Prop Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-HDP601730	1.7 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP601830	1.8 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP601832	1.8 - 3.2 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602035	2.0 - 3.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602036	2.0 - 3.6 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602240	2.2 - 4.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602545	2.5 - 4.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602750	2.7 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP603050	3.0 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm

Light Duty Prop - Spanish

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-LDPS480611	0.6 - 1.1 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS480814	0.8 - 1.4 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS481629	1.6 - 2.9 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS481832	1.8 - 3.2 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS482036	2.0 - 3.6 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS482240	2.2 - 4.0 m	40 mm	48 mm	1.4 - 2.5 mm

Light Duty Prop - Italian

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-LDPI481629	1.6 - 2.9 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI481832	1.8 - 3.2 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI481832	2.0 - 3.5 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI482036	2.0 - 3.6 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI482240	2.2 - 4.0 m	48 mm	56 mm	1.4 - 2.5 mm

Push-Pull Prop

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-PPP561730	1.7 - 3.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562035	2.0 - 3.5 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562240	2.2 - 4.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562545	2.5 - 4.5 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562750	2.7 - 5.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP601730	1.7 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602035	2.0 - 3.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602240	2.2 - 4.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602545	2.5 - 4.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602750	2.7 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm

Aluminum Prop

Code	Adjustable Height	Inner Tube	Outer Tube	Weight	Load-Bearing Range
WKS-ALP800120	0.8 - 1.2 m	715 mm	421 mm	10.47 kg	70 - 90 kN
WKS-ALP145250	1.45 - 2.5 m	1365 mm	1071 mm	15.75 kg	60 - 70 kN
WKS-ALP198350	1.98 - 3.5 m	1865 mm	1571 mm	19.45 kg	42 - 88 kN
WKS-ALP260480	2.6 - 4.8 m	2515 mm	2221 mm	24.6 kg	25 - 85 kN
WKS-ALP430625	4.3 - 6.25 m	4211 mm	1975 mm	30.48 kg	20 - 56 kN

Our Services

Customized Production Services: Assist in completing customized product configurations based on architectural and structural drawings. Professional engineering team provides detailed product application solutions.
Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs. Provide reasonable suggestions for engineering application plans.
Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects. Independent service teams ensure product production matches demand perfectly.

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in production and processing for over 20 years.

How can I get a quotation?
For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects requiring plastic formwork, our consultants will communicate with you and develop application plans based on engineering drawings.

How long does it take to complete the plan and quotation?
Generally takes about 5-8 days to complete specific plans and detailed quotations after receiving engineering drawings.

Can you provide free samples?
Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time?
According to project complexity, usually takes 30-60 days to complete stocking. More accurate delivery times are estimated during planning and quotation.

Is the plastic template prone to deformation?
In long-term high temperature environments, concrete pouring may cause slight deformation. We recommend using aluminum alloy formwork or steel frame wood formwork systems in high temperature areas.

What are the defects of the plastic template system?
Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.

What is the payment method you require?
Payment ≤1,000 USD: 100% in advance. Payment ≥10,000 USD: 30% T/T in advance, balance before shipment. Or L/C.
