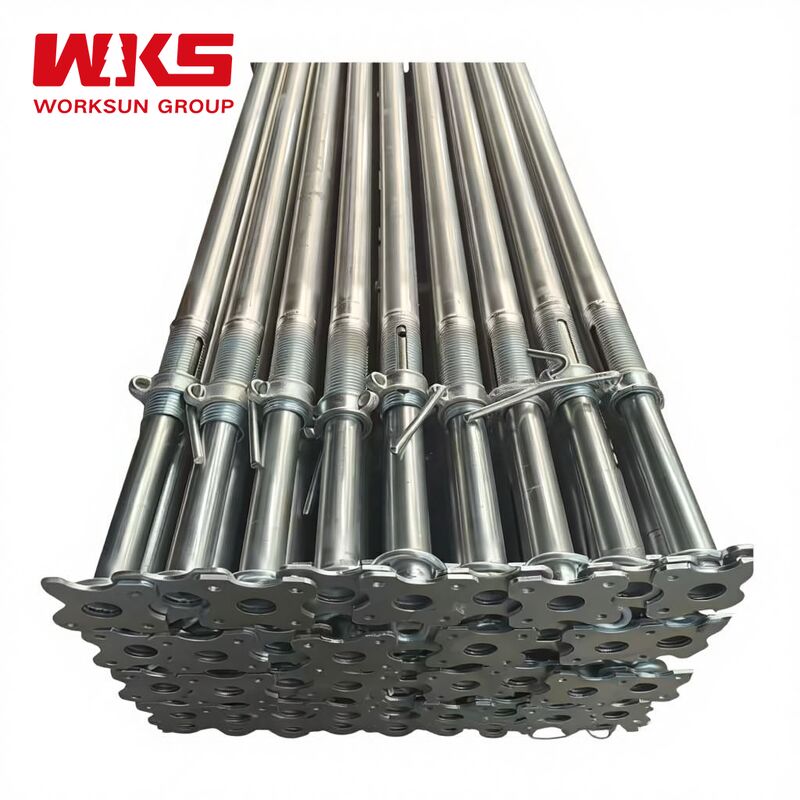

Robust Adjustable Steel Prop 2.0m - 3.5m Heavy Duty Acrow Props With 2.0t Load Capacity

Robust Adjustable Steel Prop 2.0m - 3.5m Heavy Duty Acrow Props With 2.0t Load Capacity

Brand Name:	WKS
MOQ:	200/Piece
Price:	US $6.00 - 11.00/ Piece
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Adjustable Steel Prop

Scaffolding Part Type:

Scaffolding Props

Thickness:

1.4mm-4mm

Inner Tube Diameter:

48mm

Outer Tube Diameter:

60mm

Size:

2200-4000mm Or Customized

Usage:

Construction Usage

Type:

Spain/Italy/Middle East

Colour:

Blue Red Yellow Green Silver Orange Purple Black Or Customized

Surface Treatment:

Painting, Powder Coating, Electro-galvanizing Or Hot-dip Galvanizing

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Robust Adjustable Steel Prop

Adjustable Steel Prop 2.0m

3.5m Heavy Duty Acrow Props

Product Description

Heavy Duty Adjustable Steel Prop 2.0m to 3.5m with 2.0t Load Capacity

Overview:

Adjustable Steel Prop (also known as Acrow Prop or Scaffolding Prop) is a heavy-duty telescopic support system made from high-strength steel. It is the go-to solution for providing temporary vertical shoring in concrete slab formwork, beam support, and scaffolding reinforcement, ensuring structural stability during the curing process.

Features & Functions:

Telescopic Height Adjustment: Features a dual-tube design with a threaded collar or pin system, allowing for quick and precise height adjustments to accommodate varying floor heights and uneven surfaces.

High Load-Bearing Capacity: Engineered to withstand significant axial loads from wet concrete and construction live loads, providing a critical safety margin for slab and beam shoring.

Robust Construction: Built from Q235 or Q345 steel with reinforced base plates and U-heads, ensuring maximum stability and resistance to buckling under pressure.

Easy Deployment: Requires no special tools for setup or dismantling, enabling rapid installation and strike by general labor, which accelerates project timelines.

Key Specifications:

Material: Q235B / Q345B Carbon Steel

Surface Treatment: Hot-Dip Galvanized / Powder Coated

Outer Tube Diameter: 48mm / 60mm (Heavy Duty)

Standard Sizes: 1.7m - 3.5m (Closed: 1.7m-2.0m, Extended: 3.0m-4.0m)

Safe Working Load (SWL): 10kN - 35kN (depending on extension)

Standards: EN 1065, BS 4074, ISO9001

Competitive Advantages:

Cost-Efficiency: Offers a lower total cost of ownership compared to timber or proprietary systems due to its high reusability (100+ cycles) and minimal maintenance requirements.

Jobsite Versatility: A universal component that seamlessly integrates with all major formwork systems (flying tables, slab panels) and scaffolding, making it indispensable for contractors.

All-Weather Durability: The galvanized finish provides superior corrosion resistance, making it suitable for long-term outdoor projects and harsh site conditions without performance degradation.

Robust Adjustable Steel Prop 2.0m - 3.5m Heavy Duty Acrow Props With 2.0t Load Capacity 0

Heavy Duty Prop Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-HDP601730	1.7 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP601830	1.8 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP601832	1.8 - 3.2 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602035	2.0 - 3.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602036	2.0 - 3.6 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602240	2.2 - 4.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602545	2.5 - 4.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602750	2.7 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP603050	3.0 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm

Light Duty Prop - Spanish Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-LDPS480611	0.6 - 1.1 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS480814	0.8 - 1.4 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS481629	1.6 - 2.9 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS481832	1.8 - 3.2 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS482036	2.0 - 3.6 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS482240	2.2 - 4.0 m	40 mm	48 mm	1.4 - 2.5 mm

Light Duty Prop - Italian Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-LDPI481629	1.6 - 2.9 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI481832	1.8 - 3.2 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI481832	2.0 - 3.5 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI482036	2.0 - 3.6 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI482240	2.2 - 4.0 m	48 mm	56 mm	1.4 - 2.5 mm

Push-Pull Prop Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-PPP561730	1.7 - 3.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562035	2.0 - 3.5 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562240	2.2 - 4.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562545	2.5 - 4.5 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562750	2.7 - 5.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP601730	1.7 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602035	2.0 - 3.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602240	2.2 - 4.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602545	2.5 - 4.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602750	2.7 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm

Aluminum Prop Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Weight	Load-Bearing Range
WKS-ALP800120	0.8 - 1.2 m	715 mm	421 mm	10.47 kg	70 - 90 kN
WKS-ALP145250	1.45 - 2.5 m	1365 mm	1071 mm	15.75 kg	60 - 70 kN
WKS-ALP198350	1.98 - 3.5 m	1865 mm	1571 mm	19.45 kg	42 - 88 kN
WKS-ALP260480	2.6 - 4.8 m	2515 mm	2221 mm	24.6 kg	25 - 85 kN
WKS-ALP430625	4.3 - 6.25 m	4211 mm	1975 mm	30.48 kg	20 - 56 kN

Our Services

Customized Production Services: Assist in completing customized product configurations based on architectural and structural drawings. Professional engineering team provides detailed product application solutions.
Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs. Provide reasonable suggestions for engineering application plans.
Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects. Independent service teams ensure product production matches demand perfectly.

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in production and processing for over 20 years.

How can I get a quotation?
For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects requiring plastic formwork, our consultants will communicate with you and develop application plans based on engineering drawings.

How long does it take to complete the plan and quotation?
Generally takes about 5-8 days to complete specific plans and detailed quotations after receiving engineering drawings.

Can you provide free samples?
Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time?
According to project complexity, usually takes 30-60 days to complete stocking. More accurate delivery times are estimated during planning and quotation.

Is the plastic template prone to deformation?
In long-term high temperature environments, concrete pouring may cause slight deformation. We recommend using aluminum alloy formwork or steel frame wood formwork systems in high temperature areas.

What are the defects of the plastic template system?
Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.

What is the payment method you require?
Payment ≤1,000 USD: 100% in advance. Payment ≥10,000 USD: 30% T/T in advance, balance before shipment. Or L/C.
