48mm Outer Tube Construction Props Red Yellow Orange Black Props For Shuttering And Formwork

48mm Outer Tube Construction Props Red Yellow Orange Black Props For Shuttering And Formwork

Brand Name:	WKS
MOQ:	200/Piece
Price:	US $6.00 - 11.00/ Piece
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Construction Props

Scaffolding Part Type:

Scaffolding Props

Colour:

Blue Red Yellow Green Silver Orange Purple Black Or Customized

Thickness:

1.4mm-4mm

Inner Tube Diameter:

48mm

Outer Tube Diameter:

60mm

Usage:

Construction Usage

Size:

2200-4000mm Or Customized

Type:

Spain/Italy/Middle East

Surface Treatment:

Painting, Powder Coating, Electro-galvanizing Or Hot-dip Galvanizing

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

48mm Outer Tube Construction Props

Construction Props Yellow

Orange Props For Shuttering

Product Description

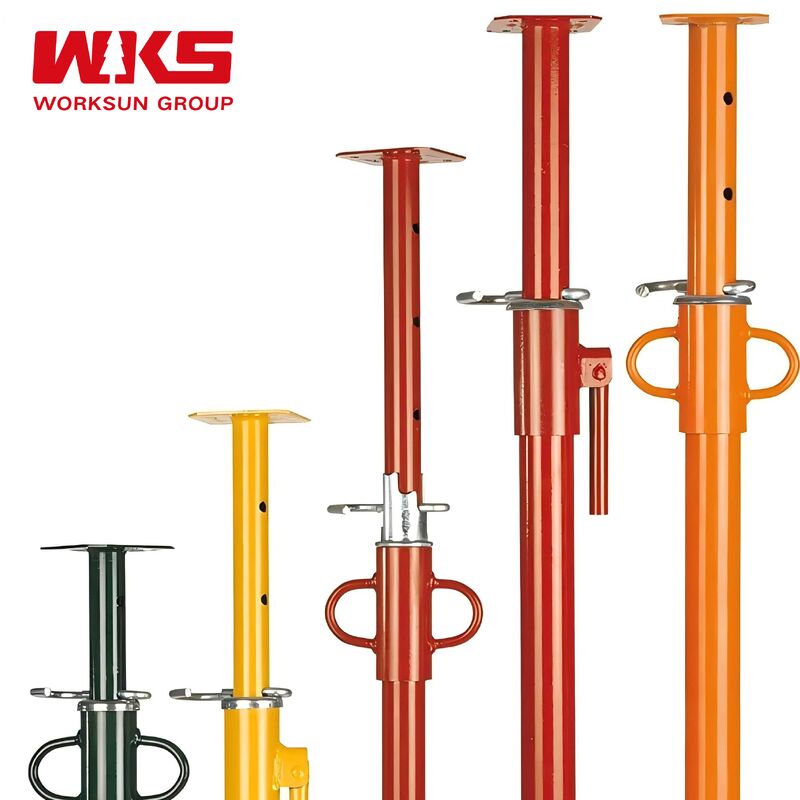

48mm Outer Tube Adjustable Steel Prop for Shuttering and Formwork

Adjustable Steel Prop is a heavy-duty telescopic support system engineered for vertical shoring of concrete slabs, beams, and temporary structures. Featuring a robust steel tube design with open-thread adjustment, it provides reliable, high-capacity support for formwork in building and civil engineering projects.

Features & Functions

Telescopic Height Adjustment: Offers flexible working heights through a dual-tube telescopic design with pin-hole coarse adjustment and threaded sleeve fine-tuning, ensuring precise leveling for slab formwork.
High Load-Bearing Capacity: Constructed from high-strength steel tubes with reinforced base plates and U-heads, capable of withstanding significant axial compression loads for safe shoring operations.
Quick & Tool-Free Setup: Utilizes a simple pin-and-wedge or threaded collar mechanism, allowing for rapid deployment and dismantling by a single worker without specialized tools.
Corrosion-Resistant Coating: Hot-dip galvanized or painted finish provides excellent resistance to rust and harsh site conditions, extending service life and ensuring consistent performance.

Key Specifications

Material: Q235 / Q345 Steel Tube
Common Sizes: 48x2.5mm (Inner) / 60x2.5mm (Outer)
Adjustable Range: 1.8m - 5.0m (Standard Series)
Working Load: 20kN - 35kN (EN1065 Class C/D)
Surface: Hot-Dip Galvanized / Painted

Competitive Advantages

Cost-Effective Reusability: Significantly lower cost-per-use compared to timber shores, with a long service life and high reusability across multiple projects when properly maintained.
Space-Efficient Storage: Nests compactly when collapsed, reducing transportation volume and on-site storage space requirements.
Global Standard Compliance: Manufactured to meet international standards (EN 1065, BS, AS), ensuring compatibility with European and global formwork systems and enhancing project safety credibility.

Product Specifications

Heavy Duty Prop Specifications
Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-HDP601730	1.7 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP601830	1.8 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP601832	1.8 - 3.2 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602035	2.0 - 3.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602036	2.0 - 3.6 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602240	2.2 - 4.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602545	2.5 - 4.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602750	2.7 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP603050	3.0 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm

Light Duty Prop - Spanish Specifications
Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-LDPS480611	0.6 - 1.1 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS480814	0.8 - 1.4 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS481629	1.6 - 2.9 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS481832	1.8 - 3.2 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS482036	2.0 - 3.6 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS482240	2.2 - 4.0 m	40 mm	48 mm	1.4 - 2.5 mm

Light Duty Prop - Italian Specifications
Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-LDPI481629	1.6 - 2.9 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI481832	1.8 - 3.2 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI481832	2.0 - 3.5 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI482036	2.0 - 3.6 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI482240	2.2 - 4.0 m	48 mm	56 mm	1.4 - 2.5 mm

Push-Pull Prop Specifications
Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-PPP561730	1.7 - 3.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562035	2.0 - 3.5 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562240	2.2 - 4.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562545	2.5 - 4.5 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562750	2.7 - 5.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP601730	1.7 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602035	2.0 - 3.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602240	2.2 - 4.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602545	2.5 - 4.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602750	2.7 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm

Aluminum Prop Specifications
Code	Adjustable Height	Inner Tube	Outer Tube	Weight	Load-Bearing Range
WKS-ALP800120	0.8 - 1.2 m	715 mm	421 mm	10.47 kg	70 - 90 kN
WKS-ALP145250	1.45 - 2.5 m	1365 mm	1071 mm	15.75 kg	60 - 70 kN
WKS-ALP198350	1.98 - 3.5 m	1865 mm	1571 mm	19.45 kg	42 - 88 kN
WKS-ALP260480	2.6 - 4.8 m	2515 mm	2221 mm	24.6 kg	25 - 85 kN
WKS-ALP430625	4.3 - 6.25 m	4211 mm	1975 mm	30.48 kg	20 - 56 kN

Our Services

Customized Production Services: Assist in completing customized product configurations based on architectural and structural drawings. Professional engineering team provides detailed product application solutions.
Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs. Provide reasonable suggestions for engineering application plans.
Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects. Independent service teams ensure product production matches demand perfectly.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in production and processing for over 20 years.

How can I get a quotation?

For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects requiring plastic formwork, our consultants will communicate with you and develop application plans based on engineering drawings.

How long does it take to complete the plan and quotation?

Generally takes about 5-8 days to complete specific plans and detailed quotations after receiving engineering drawings.

Can you provide free samples?

Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time?

According to project complexity, usually takes 30-60 days to complete stocking. More accurate delivery times are estimated during planning and quotation.

Is the plastic template prone to deformation?

In long-term high temperature environments, concrete pouring may cause slight deformation. We recommend using aluminum alloy formwork or steel frame wood formwork systems in high temperature areas.

What are the defects of the plastic template system?

Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.

What is the payment method you require?

Payment ≤1,000 USD: 100% in advance. Payment ≥10,000 USD: 30% T/T in advance, balance before shipment. Or L/C.
