| Brand Name: | WKS |
| MOQ: | 200/Piece |
| Price: | US $10.00 - 11.40/ Piece |
| Payment Terms: | T/T |
| Supply Ability: | 1000 piece in 10 days |
The Ring Lock Scaffold is a high-strength modular scaffolding system designed for fast assembly and superior load-bearing capacity in construction and industrial applications. It features vertical standards with rosette connectors that allow for quick connection of ledgers and braces at multiple angles, providing a stable and versatile working platform for high-rise buildings, bridges, and complex structures.
| Parameter | Specification |
|---|---|
| Material | Q235B/Q355B Steel, Hot-Dip Galvanized Finish |
| Standard Sizes | Verticals: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m; Ledgers: 0.73m, 1.09m, 1.57m, 2.07m, 2.57m |
| Load Capacity | Single standard leg safe working load up to 60kN; Platform load capacity typically 6kN/m² |
| Compliance | EN 12810, EN 12811, and OSHA safety standards |

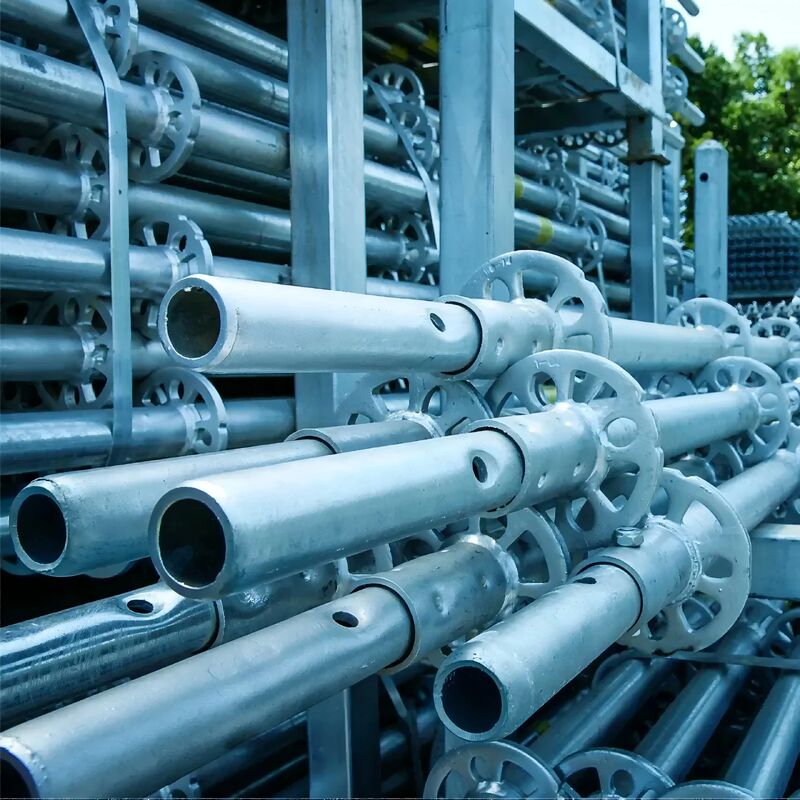

| Component | Vertical Standards |
|---|---|
| Materials | Q345/Q355B |
| Diameter | 60mm & 48mm |
| Pipe Wall Thickness | 3.0mm/3.2mm/3.25mm or customized |
| Surface Treatment | Powder Coated/Hot Dip Galvanizing |
| Weight | 1.8KG-18.75KG according to different sizes |
| Length | 200mm-3000mm various sizes available |
| Description | Main stressed part of ring-lock scaffold with inner fittings for height adjustment |
| Component | Adjustable Base Jack |
|---|---|
| Materials | Q235/Q345 |
| Pipe Type | Hollow or Solid |
| Screw Rod Diameter | 30mm-48mm or customized |
| Pipe Wall Thickness | 4mm/4.75mm or customized |
| Surface Treatment | Powder Coated/Hot Dip Galvanizing |
| Weight | 2.7KG-8KG according to different sizes |
| Adjustable Length | 100mm To 1000mm as required |
| Description | Arranged at the bottom of ring-lock scaffolding system |
| Component | U Head Jack |
|---|---|
| Materials | Q235/Q235B/Q345 |
| Pipe Type | Hollow or Solid |
| Screw Rod Diameter | 30mm-48mm or customized |
| Pipe Wall Thickness | 3.5mm-4.75mm or customized |
| Surface Treatment | Powder Coated/Hot Dip Galvanizing |
| Weight | 2.91KG-8KG according to different sizes |
| Adjustable Length | 100mm To 1000mm as required |
| Description | Used to support keel and adjust scaffold height |
| Component | Truss (Bridge) Ledger |
|---|---|
| Materials | Q235/Q355 |
| Diameter | 48.3mm |
| Pipe Wall Thickness | 3.25mm |
| Surface Treatment | Powder Coated/Hot Dip Galvanizing |
| Weight | 9.35KG-19KG according to different sizes |
| Length | 1.52m-3.05m or customized |
| Description | Enhances scaffolding stability |
| Component | Lattice Beam (Girder) |
|---|---|
| Materials | Q235/Q355 |
| Diameter | 48.3mm |
| Pipe Wall Thickness | 3.0mm-4.0mm |
| Surface Treatment | Powder Coated/Hot Dip Galvanizing |
| Weight | 25KG-150KG according to different sizes |
| Length | 2070mm-6140mm or customized |
| Description | Enhances scaffolding stability |
| Component | Side Bracket |
|---|---|
| Materials | Q355 |
| Diameter | 48.3mm |
| Pipe Wall Thickness | 3.2mm/3.25mm or customized |
| Surface Treatment | Powder Coated/Hot Dip Galvanizing |
| Length | 360mm-1090mm or customized |
| Description | Used when main frame cannot reach required positions |
| Component | Steel Plank |
|---|---|
| Materials | Q235 |
| Diameter | 48.3mm |
| Thickness | 1.2mm-2.0mm or customized |
| Surface Treatment | Powder Coated/Hot Dip Galvanizing |
| Size | Various standard and custom sizes available |
| Description | Facilitates safe worker movement during construction |
Widely used in bridge engineering including general elevated bridges, tunnel engineering, factory buildings, elevated water towers, power plants, refineries, and special factory building support design. Also suitable for pedestrian overpasses, span sheds, storage shelves, chimneys, water towers, indoor and outdoor decoration, large-scale concert stages, background frames, stands, viewing platforms, styling frames, staircase systems, stage construction, sports competition stands, and various other projects.
Assembly is 2-3 times faster than traditional scaffolding, significantly reducing on-site labor costs and project timelines.
The positive wedge lock and rigid node design minimize installation errors and prevent accidental dislodgement.
High durability and reusability across hundreds of projects make it cost-effective for rental companies and large contractors.
Average 10+ years working experience with over 20 years of production expertise ensuring stable product quality.
Factory located in industrial cluster area providing significant cost advantages.
Comprehensive project services ensuring smooth Ring-Lock Scaffold application.
