Q235 Ring Lock Style Scaffolding Customized High Rise Scaffold Flexible

Q235 Ring Lock Style Scaffolding Customized High Rise Scaffold Flexible

Brand Name:	WKS
MOQ:	200/Piece
Price:	US $10.00 - 11.40/ Piece
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Ring Lock Style Scaffolding

Material:

Q235

Diameter:

60mm&48mm

Pipe Wall Thickness:

3.0mm/3.2mm/3.25mm Or Customized

Surface Treatment:

Powder Coated/Hot Dip Galvanizing

Weight:

1.8KG-18.75KG According To Different Sizes

Length:

200mm/250mm/300mm/350mm/500mm/1000mm/1500mm/2000mm/2500mm/3000mm

Design Style:

Morden

Color:

Silver

Corrosionresistance:

Galvanized Coating

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Q235 Ring Lock Style Scaffolding

Ring Lock Style Scaffolding Customized

High Rise Scaffold Flexible

Product Description

Ring Lock Scaffold for Bridge Pier and High Rise Building Facade

Ring Lock Scaffold (Ringlock System) is a modular scaffolding system featuring vertical standards with rosette nodes and wedge-lock connections. Designed for heavy-duty access, formwork support, and shoring in high-rise and industrial projects, it offers superior load capacity and faster assembly compared to traditional tube-and-coupler systems.

Features & Functions

Wedge Lock Connection: Horizontal ledgers and diagonal braces lock into rosettes with a hammer-driven wedge, eliminating loose bolts and nuts for faster, safer assembly.
Multi-Directional Flexibility: Each rosette allows up to 8 connections at various angles (0°, 45°, 90°), enabling the construction of curved walls, complex structures, and high-bay platforms.
High Load-Bearing Capacity: Engineered for heavy-duty applications, including concrete formwork support and large temporary structures, with excellent vertical and lateral stability.
Hot-Dip Galvanized Finish: Provides superior corrosion resistance for long-term use in harsh environments like petrochemical plants and coastal areas.

Key Specifications

Standard Material: Q235 / Q355 Steel
Standard Tube: Ø48.3mm (OD) x 2.5-3.2mm (Thickness)
Common Module Lengths: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m
Safe Working Load (SWL): Up to 60-70 kN per standard (depending on configuration)
Surface: Hot-Dip Galvanized (EN 12811/ OSHA compliant)

Technical Specifications

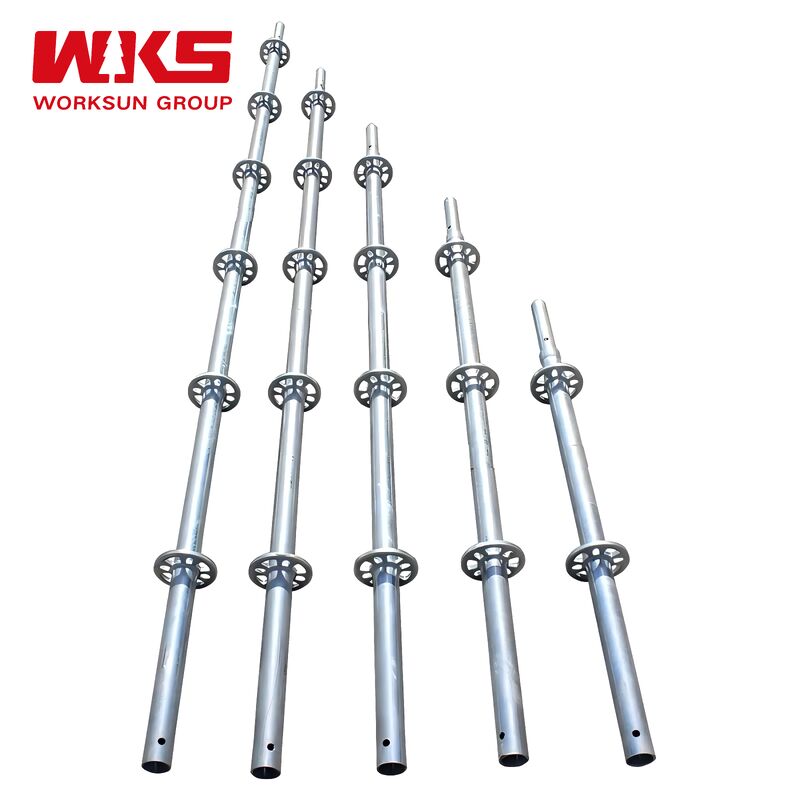

Vertical Standards

Materials: Q345/Q355B

Diameter: 60mm & 48mm

Pipe Wall Thickness: 3.0mm/3.2mm/3.25mm or customized

Surface Treatment: Powder Coated/Hot Dip Galvanizing

Weight: 1.8KG-18.75KG according to different sizes

Length: 200mm-3000mm various sizes available

Main stressed part of ring-lock scaffold with inner fittings for height adjustment

Adjustable Base Jack

Materials: Q235/Q345

Pipe Type: Hollow or Solid

Screw Rod Diameter: 30mm-48mm or customized

Pipe Wall Thickness: 4mm/4.75mm or customized

Surface Treatment: Powder Coated/Hot Dip Galvanizing

Weight: 2.7KG-8KG according to different sizes

Adjustable Length: 100mm To 1000mm as required

Arranged at the bottom of ring-lock scaffolding system

U Head Jack

Materials: Q235/Q235B/Q345

Pipe Type: Hollow or Solid

Screw Rod Diameter: 30mm-48mm or customized

Pipe Wall Thickness: 3.5mm-4.75mm or customized

Surface Treatment: Powder Coated/Hot Dip Galvanizing

Weight: 2.91KG-8KG according to different sizes

Adjustable Length: 100mm To 1000mm as required

Used to support keel and adjust scaffold height

Truss (Bridge) Ledger

Materials: Q235/Q355

Diameter: 48.3mm

Pipe Wall Thickness: 3.25mm

Surface Treatment: Powder Coated/Hot Dip Galvanizing

Weight: 9.35KG-19KG according to different sizes

Length: 1.52m-3.05m or customized

Enhances scaffolding stability

Lattice Beam (Girder)

Materials: Q235/Q355

Diameter: 48.3mm

Pipe Wall Thickness: 3.0mm-4.0mm

Surface Treatment: Powder Coated/Hot Dip Galvanizing

Weight: 25KG-150KG according to different sizes

Length: 2070mm-6140mm or customized

Enhances scaffolding stability

Side Bracket

Materials: Q355

Diameter: 48.3mm

Pipe Wall Thickness: 3.2mm/3.25mm or customized

Surface Treatment: Powder Coated/Hot Dip Galvanizing

Length: 360mm-1090mm or customized

Used when main frame cannot reach required positions

Steel Plank

Materials: Q235

Diameter: 48.3mm

Thickness: 1.2mm-2.0mm or customized

Surface Treatment: Powder Coated/Hot Dip Galvanizing

Size: Various standard and custom sizes available

Facilitates safe worker movement during construction

Application Scope

Widely used in bridge engineering including general elevated bridges, tunnel engineering, factory buildings, elevated water towers, power plants, refineries, and special factory building support design. Also suitable for pedestrian overpasses, span sheds, storage shelves, chimneys, water towers, indoor and outdoor decoration, large-scale concert stages, background frames, stands, viewing platforms, styling frames, staircase systems, stage construction, sports competition stands, and various other projects.

Competitive Advantages

Labor Efficiency: Assembly is 2-3 times faster than traditional scaffolding, significantly reducing on-site labor costs and project timelines.
Enhanced Safety: The positive wedge lock and rigid node design minimize installation errors and prevent accidental dislodgement, ensuring a safer working platform.
Long-Term ROI: High durability and reusability across hundreds of projects make it a cost-effective solution for rental companies and large contractors.
Experienced engineering team with average 10+ years working experience
Over 20 years of production experience ensuring stable product quality
Strategic factory location in industrial cluster area providing significant cost advantages
Full cycle project services ensuring smooth Ring-Lock Scaffold application

Professional Services

Professional engineering team provides detailed product application solutions
Expert consultation for optimized engineering application plans
Dedicated service teams for each project ensuring perfect product-demand matching
Efficient construction support through timely product delivery

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group company operates two major production bases with over 20 years of specialized production experience.
What services do you provide?
We provide professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.
Do you provide samples?
Yes, we can provide samples. Customers are responsible for shipping costs.
How to get a quotation?
Provide specific requirements list, or inform us of your intended product use - we will develop a customized plan based on your needs.
Quotation and delivery timeline?
Specific quotations typically completed within 2 days. Delivery time after contract signing usually 10-30 days depending on project complexity.
Payment terms?
T/T 30% deposit before manufacture, 70% balance against B/L Copy, or L/C.
