1.8KG - 18.75KG Ring Lock System Scaffolding Q235 Heavy Duty Scaffolding With 60mm Diameter Tube

1.8KG - 18.75KG Ring Lock System Scaffolding Q235 Heavy Duty Scaffolding With 60mm Diameter Tube

Brand Name:	WKS
MOQ:	200/Piece
Price:	US $10.00 - 11.40/ Piece
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Ring Lock System Scaffolding

Material:

Q235

Diameter:

60mm&48mm

Pipe Wall Thickness:

3.0mm/3.2mm/3.25mm Or Customized

Surface Treatment:

Powder Coated/Hot Dip Galvanizing

Weight:

1.8KG-18.75KG According To Different Sizes

Length:

200mm/250mm/300mm/350mm/500mm/1000mm/1500mm/2000mm/2500mm/3000mm

Design Style:

Morden

Color:

Silver

Scaffolding Part Type:

Cuplock Scaffolding Accessories

Corrosionresistance:

Galvanized Coating

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

1.8KG Ring Lock System Scaffolding

18.75KG Ring Lock System Scaffolding

Q235 Heavy Duty Scaffolding

Product Description

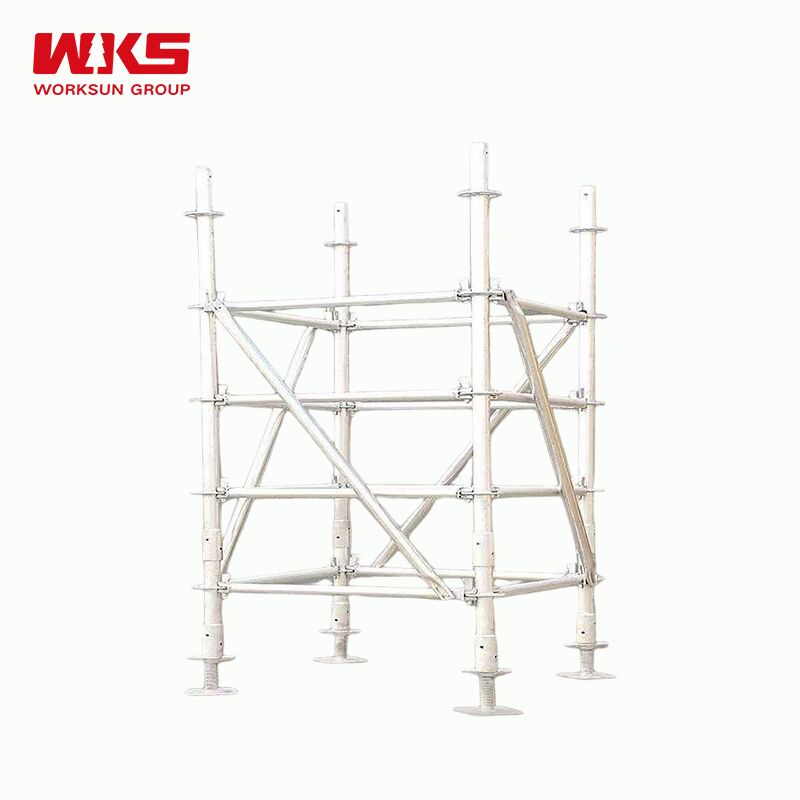

Ring Lock Scaffold with 60mm Diameter Tube for Heavy Duty Support

Ring Lock Scaffold (also called Rosette System) is a heavy-duty modular scaffolding system featuring vertical standards with welded rosette rings. It is engineered for high-load applications including bridge falsework, industrial access, and concrete shoring, offering a blend of structural integrity and rapid assembly.

Features & Functions

Tool-Free Wedge Connection: Horizontal ledgers and diagonal braces lock into the rosette with a single hammer-driven wedge, enabling 2-3 times faster assembly than traditional tube-and-coupler systems and reducing labor costs.
Multi-Directional Node: Each rosette ring allows connections in 8 directions (0°, 45°, 90°), providing exceptional flexibility to build curved walls, complex geometries, and large-span support towers.
Integrated Bracing: The system includes standardized diagonals that slot directly into the rosettes, ensuring triangulated stability without loose bolts or separate couplers, which minimizes on-site hazards.
Heavy-Duty Shoring: With high axial load capacity, it is commonly used as primary support for heavy concrete formwork, slab pouring, and temporary structural works.

Key Specifications

Standard Material: Q345B Low-Alloy Steel (High Strength)
Vertical Standard: Ø48.3mm / Ø60.3mm, lengths 0.5m, 1m, 2m, 2.5m, 3m
Rosette: Ø133mm forged or pressed steel ring, welded at 500mm or 600mm intervals
Safe Working Load: Up to 60 kN per standard (depending on configuration)
Finish: Hot-Dip Galvanized (Corrosion resistant)

Technical Specifications

Component	Vertical Standards
Materials	Q345/Q355B
Diameter	60mm & 48mm
Pipe Wall Thickness	3.0mm/3.2mm/3.25mm or customized
Surface Treatment	Powder Coated/Hot Dip Galvanizing
Weight	1.8KG-18.75KG according to different sizes
Length	200mm-3000mm various sizes available
Description	Main stressed part of ring-lock scaffold with inner fittings for height adjustment

Component	Adjustable Base Jack
Materials	Q235/Q345
Pipe Type	Hollow or Solid
Screw Rod Diameter	30mm-48mm or customized
Pipe Wall Thickness	4mm/4.75mm or customized
Surface Treatment	Powder Coated/Hot Dip Galvanizing
Weight	2.7KG-8KG according to different sizes
Adjustable Length	100mm To 1000mm as required
Description	Arranged at the bottom of ring-lock scaffolding system

Component	U Head Jack
Materials	Q235/Q235B/Q345
Pipe Type	Hollow or Solid
Screw Rod Diameter	30mm-48mm or customized
Pipe Wall Thickness	3.5mm-4.75mm or customized
Surface Treatment	Powder Coated/Hot Dip Galvanizing
Weight	2.91KG-8KG according to different sizes
Adjustable Length	100mm To 1000mm as required
Description	Used to support keel and adjust scaffold height

Component	Truss (Bridge) Ledger
Materials	Q235/Q355
Diameter	48.3mm
Pipe Wall Thickness	3.25mm
Surface Treatment	Powder Coated/Hot Dip Galvanizing
Weight	9.35KG-19KG according to different sizes
Length	1.52m-3.05m or customized
Description	Enhances scaffolding stability

Component	Lattice Beam (Girder)
Materials	Q235/Q355
Diameter	48.3mm
Pipe Wall Thickness	3.0mm-4.0mm
Surface Treatment	Powder Coated/Hot Dip Galvanizing
Weight	25KG-150KG according to different sizes
Length	2070mm-6140mm or customized
Description	Enhances scaffolding stability

Component	Side Bracket
Materials	Q355
Diameter	48.3mm
Pipe Wall Thickness	3.2mm/3.25mm or customized
Surface Treatment	Powder Coated/Hot Dip Galvanizing
Length	360mm-1090mm or customized
Description	Used when main frame cannot reach required positions

Component	Steel Plank
Materials	Q235
Diameter	48.3mm
Thickness	1.2mm-2.0mm or customized
Surface Treatment	Powder Coated/Hot Dip Galvanizing
Size	Various standard and custom sizes available
Description	Facilitates safe worker movement during construction

Application Scope

Widely used in bridge engineering including general elevated bridges, tunnel engineering, factory buildings, elevated water towers, power plants, refineries, and special factory building support design. Also suitable for pedestrian overpasses, span sheds, storage shelves, chimneys, water towers, indoor and outdoor decoration, large-scale concert stages, background frames, stands, viewing platforms, styling frames, staircase systems, stage construction, sports competition stands, and various other projects.

Competitive Advantages

Labor Efficiency: Assembly is 2-3 times faster than traditional scaffolding, significantly reducing on-site labor costs and project timelines.
Enhanced Safety: The positive wedge lock and rigid node design minimize installation errors and prevent accidental dislodgement, ensuring a safer working platform.
Long-Term ROI: High durability and reusability across hundreds of projects make it a cost-effective solution for rental companies and large contractors.
Experienced Engineering Team: Average 10+ years working experience.
Production Expertise: Over 20 years of production experience ensuring stable product quality.
Strategic Location: Factory located in industrial cluster area providing significant cost advantages.
Full Cycle Services: Comprehensive project services ensuring smooth Ring-Lock Scaffold application.

Professional Services

Professional engineering team provides detailed product application solutions
Expert consultation for optimized engineering application plans
Dedicated service teams for each project ensuring perfect product-demand matching
Efficient construction support through timely product delivery

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group company operates two major production bases with over 20 years of specialized production experience.

What services do you provide?
We provide professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.

Do you provide samples?
Yes, we can provide samples. Customers are responsible for shipping costs.

How to get a quotation?
Provide specific requirements list, or inform us of your intended product use - we will develop a customized plan based on your needs.

Quotation and delivery timeline?
Specific quotations typically completed within 2 days. Delivery time after contract signing usually 10-30 days depending on project complexity.

Payment terms?
T/T 30% deposit before manufacture, 70% balance against B/L Copy, or L/C.
