Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion Resistant

Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion Resistant

Brand Name:	WKS
MOQ:	200/Piece
Price:	US $10.00 - 11.40/ Piece
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Ring Lock Scaffold

Color:

Silver

Material:

Q235

Diameter:

60mm&48mm

Pipe Wall Thickness:

3.0mm/3.2mm/3.25mm Or Customized

Surface Treatment:

Powder Coated/Hot Dip Galvanizing

Weight:

1.8KG-18.75KG According To Different Sizes

Length:

200mm/250mm/300mm/350mm/500mm/1000mm/1500mm/2000mm/2500mm/3000mm

Design Style:

Morden

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Wedge Connection Ring Lock Scaffold

High Strength Modular Steel Scaffolding

Modular Steel Scaffolding Corrosion Resistant

Product Description

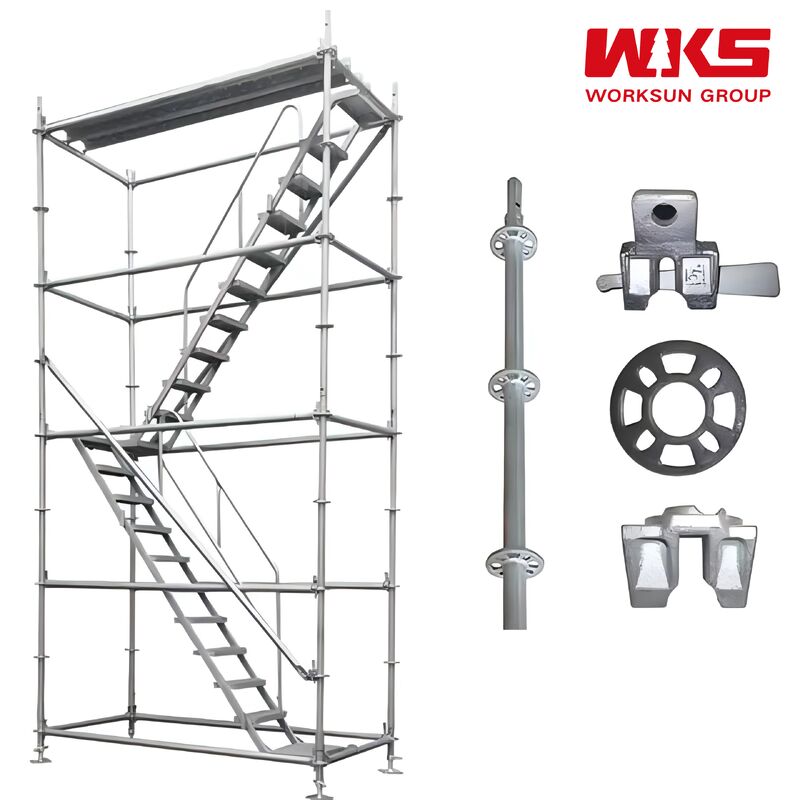

Ring-Lock Scaffolding System

Ring-Lock scaffold is an advanced modular scaffolding system, also known as chrysanthemum disc scaffold. Its robust supporting structure consists of upright poles, horizontal poles, and diagonal poles connected through an innovative disc system with eight holes - four small holes for horizontal poles and four large holes for diagonal poles.

System Advantages

Flexibility and Versatility

Single connection point accommodates multiple angles simultaneously
Capable of constructing complex scaffolding structures
Rapid installation reduces work time and saves space

Enhanced Safety Features

Single riser bearing capacity: 15-35kN, meeting safety technical specifications
Stable disc connections between vertical and cross rods improve overall structural stability
Reduced assembly errors for safer construction environments

Wide Application Range

Single and double row scaffolding for industrial and civil buildings
Horizontal concrete structure engineering formwork support
Construction of tall structures including chimneys and water towers
Trestle, wharf, and highway viaduct construction
Various temporary building structures

Technical Specifications

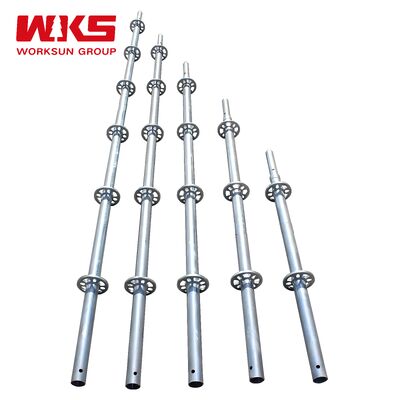

Vertical Standards

Materials: Q345/Q355B
Diameter: 60mm & 48mm
Pipe Wall Thickness: 3.0mm/3.2mm/3.25mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 1.8KG-18.75KG according to different sizes
Length: 200mm-3000mm various sizes available
Main stressed part of ring-lock scaffold with inner fittings for height adjustment

Adjustable Base Jack

Materials: Q235/Q345
Pipe Type: Hollow or Solid
Screw Rod Diameter: 30mm-48mm or customized
Pipe Wall Thickness: 4mm/4.75mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 2.7KG-8KG according to different sizes
Adjustable Length: 100mm To 1000mm as required
Arranged at the bottom of ring-lock scaffolding system

U Head Jack

Materials: Q235/Q235B/Q345
Pipe Type: Hollow or Solid
Screw Rod Diameter: 30mm-48mm or customized
Pipe Wall Thickness: 3.5mm-4.75mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 2.91KG-8KG according to different sizes
Adjustable Length: 100mm To 1000mm as required
Used to support keel and adjust scaffold height

Truss (Bridge) Ledger

Materials: Q235/Q355
Diameter: 48.3mm
Pipe Wall Thickness: 3.25mm
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 9.35KG-19KG according to different sizes
Length: 1.52m-3.05m or customized
Enhances scaffolding stability

Lattice Beam (Girder)

Materials: Q235/Q355
Diameter: 48.3mm
Pipe Wall Thickness: 3.0mm-4.0mm
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 25KG-150KG according to different sizes
Length: 2070mm-6140mm or customized
Enhances scaffolding stability

Side Bracket

Materials: Q355
Diameter: 48.3mm
Pipe Wall Thickness: 3.2mm/3.25mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Length: 360mm-1090mm or customized
Used when main frame cannot reach required positions

Steel Plank

Materials: Q235
Diameter: 48.3mm
Thickness: 1.2mm-2.0mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Size: Various standard and custom sizes available
Facilitates safe worker movement during construction

Application Scope

Widely used in bridge engineering including general elevated bridges, tunnel engineering, factory buildings, elevated water towers, power plants, refineries, and special factory building support design. Also suitable for pedestrian overpasses, span sheds, storage shelves, chimneys, water towers, indoor and outdoor decoration, large-scale concert stages, background frames, stands, viewing platforms, styling frames, staircase systems, stage construction, sports competition stands, and various other projects.

Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion Resistant 7

Competitive Advantages

Experienced engineering team with average 10+ years working experience
Over 20 years of production experience ensuring stable product quality
Strategic factory location in industrial cluster area providing significant cost advantages
Full cycle project services ensuring smooth Ring-Lock Scaffold application

Professional Services

Professional engineering team provides detailed product application solutions
Expert consultation for optimized engineering application plans
Dedicated service teams for each project ensuring perfect product-demand matching
Efficient construction support through timely product delivery

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group company operates two major production bases with over 20 years of specialized production experience.

What services do you provide?

We provide professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.

Do you provide samples?

Yes, we can provide samples. Customers are responsible for shipping costs.

How to get a quotation?

Provide specific requirements list, or inform us of your intended product use - we will develop a customized plan based on your needs.

Quotation and delivery timeline?

Specific quotations typically completed within 2 days. Delivery time after contract signing usually 10-30 days depending on project complexity.

Payment terms?

T/T 30% deposit before manufacture, 70% balance against B/L Copy, or L/C.
