| Brand Name: | WKS |
| MOQ: | 200/Piece |
| Price: | US $8.90 - 12.00/ Piece |
| Payment Terms: | T/T |
| Supply Ability: | 1000 piece in 10 days |

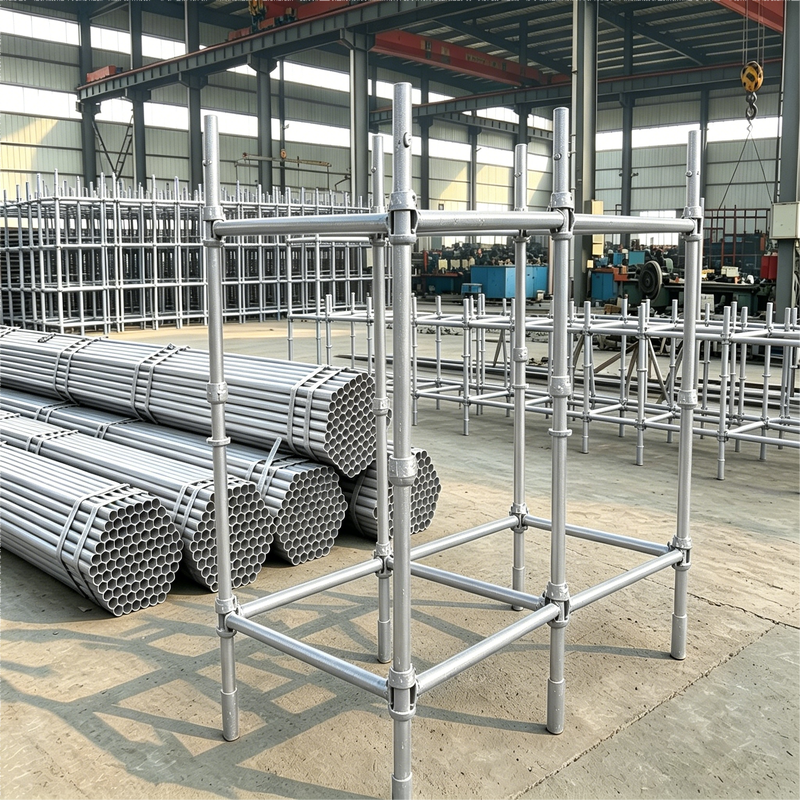

The Cuplock Scaffolding System is a modular steel scaffold featuring a cup-and-blade connection system - simply hammer down the upper cup to lock ledgers in seconds. Manufactured from Q355B steel with hot-dip galvanized finish (≥55μm), it offers up to 120 kN load capacity per standard and complies with EN 12810 standards.
Compared to frame or tube-clamp systems, Cuplock provides faster erection, higher strength, and 20+ years corrosion resistance - making it ideal for general construction and formwork falsework applications.
| Parameter | Value |
|---|---|
| Material | Q355B Steel |
| Pipe Size | 48.3mm × 3.2mm |
| Cup Spacing | 1.0m |
| Finish | Hot-dip galvanized (≥55μm) |
| Max Leg Load | Up to 120 kN |
| Standards | EN 12810, EN 12811 |
| Spacing | Height ≤5m |
|---|---|
| 1.2×1.2m | 120 kN |
| 1.5×1.5m | 80 kN |
| 1.8×1.8m | 50 kN |
| Aspect | Cuplock | Ring Lock |
|---|---|---|
| Connection | Cup + blade | Rosette + wedge |
| Angle | 90° only | 45° increments |
| Max Load | 120 kN | 150 kN |
| Cost | Moderate | Higher |
