1200mm 1800mm 2400mm Dimension Scaffolding Cuplock System Easy Assembling Cuplock Scaffolding

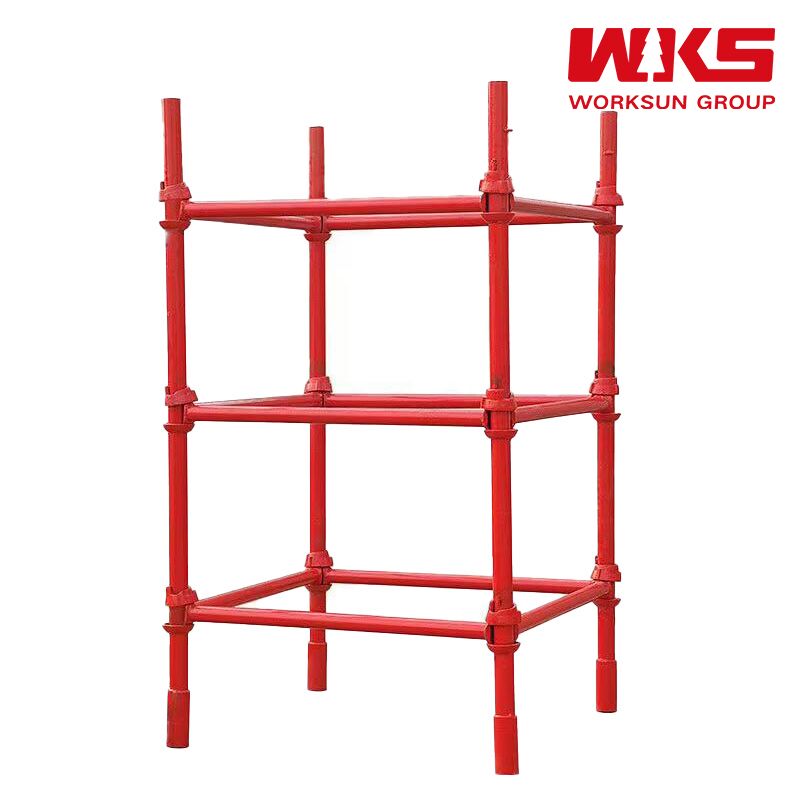

Cuplock Scaffolding is a modular steel tube scaffolding system distinguished by its key connecting component: a cup-like node plate welded at fixed intervals along the vertical standards (uprights). Horizontal and diagonal ledgers are connected by inserting their wedge-shaped spigot ends into these cups, which are then quickly secured with a hammer-driven pin or locking key. The system is named for this "cup and lock" connection. It is renowned for its extremely high load-bearing capacity, exceptional overall stability, and rapid assembly/disassembly. It is particularly favored for heavy-duty shoring, large-span structures, and high-load applications.

The core function of Cuplock scaffolding is to provide a safe, stable, and high-capacity temporary work platform and support structure. It is widely used in:

• Heavy-Duty Shoring and Formwork Systems: Bridge construction, large-span high-clearance structures, and high shoring systems for buildings with floor heights exceeding standard limits.
• Exterior Construction and Cladding: Work platforms for bricklaying, curtain wall installation, and painting on high-rise or complex facades.
• Large Equipment Installation and Maintenance Platforms: Used in industrial sectors like power plants, petrochemicals, and shipbuilding.
• Temporary Structures for Events: Construction of temporary grandstands, stage lighting rigs, and concert stages.

The system primarily consists of Standards (uprights), Ledgers (horizontal braces), Diagonal Braces, Adjustable Base Jacks/U-Heads, and other accessories. Erection involves setting the standards like "posts," inserting the ledger spigots into the node cups, and securing them with a pin or lock. Diagonal braces are then installed in a crisscross pattern at specified intervals, forming a stable three-dimensional truss structure.

• Exceptionally High Load Capacity and Structural Stability: Center-load transfer mechanism with high-strength steel and triangulated structure.
• Extremely Fast Assembly and Dismantling: Single hammer strike connections, 3-5 times faster than traditional scaffolding.
• High Modularity and Standardization: Fully standardized components with professional appearance.
• Outstanding Safety: Rigid connections with structural diagonal braces reducing collapse risk.
• Excellent Long-Term Economy: Long service life (20-30 years) with minimal maintenance and labor savings.
• High Adaptability and Material Efficiency: Flexible height adjustment and larger bay sizes reducing steel usage.

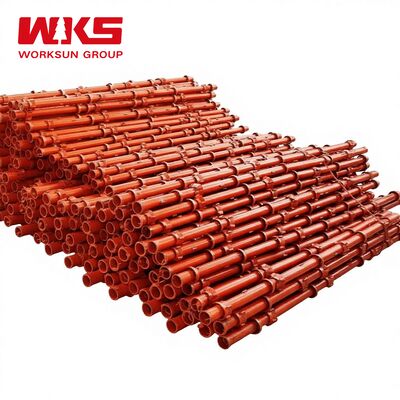

Item No.	Length	Weight	Picture
BSCS 300	3m/9'10"	17.5kg/38.25 Ibs
BSCS 250	2.5 m/8'2"	14.57 kg/32.12 Ibs
BSCS 200	2m/6'2"	11.82 kg/26.07 Ibs
BSCS 150	1.5 m/4'11"	9.05 kg/19.95 Ibs
BSCS 100	1 m/3'3"	6.3 kg/13.91 Ibs
BSCS O50	0.5m/1'8"	3.5 kg /7.77 Ibs

Item No.	Length	Weight	Picture
BSCL 250	2.5 m/8'2"	9.35 kg/20.61 Ib
BSCL 180	1.8 m/6'	6.85 kg / 15.1 Ibs
BSCL 150	1.5 m/4'11"	5.75 kg/9.46 Ibs
BSCL 120	1.2m/4	4.29 kg/13.91 Ibs
BSCL 090	0.9m/3'	3.55 kg /7.83 Ibs
BSCL 060	0.6m/2'	2.47 kg / 5.45 Ibs

• Customized Production Services: Professional engineering team provides detailed product application solutions based on your project drawings.
• Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs.
• Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects.
