Flexible Cuplock Scaffolding System Rigid Access Tower Scaffold Customized

Flexible Cuplock Scaffolding System Rigid Access Tower Scaffold Customized

Brand Name:	WKS
MOQ:	200/Piece
Price:	US $8.90 - 12.00/ Piece
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Cuplock Scaffolding System

Diameter:

48mm

Thickness:

3.0/3.25mm

Quality Guarantee:

2 Year

Peculiarity:

Easy Assembling

Technology:

CO2 Arc Welded

Surface Treatment:

Painted/Galvanized

Colour:

Customized Colour

Dimension:

1200,1800,2400mm Or As Your Request

Customize Or Not:

Available In Custom Or Standard Sizes

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Flexible Cuplock Scaffolding System

Rigid Access Tower Scaffold

Access Tower Scaffold Customized

Product Description

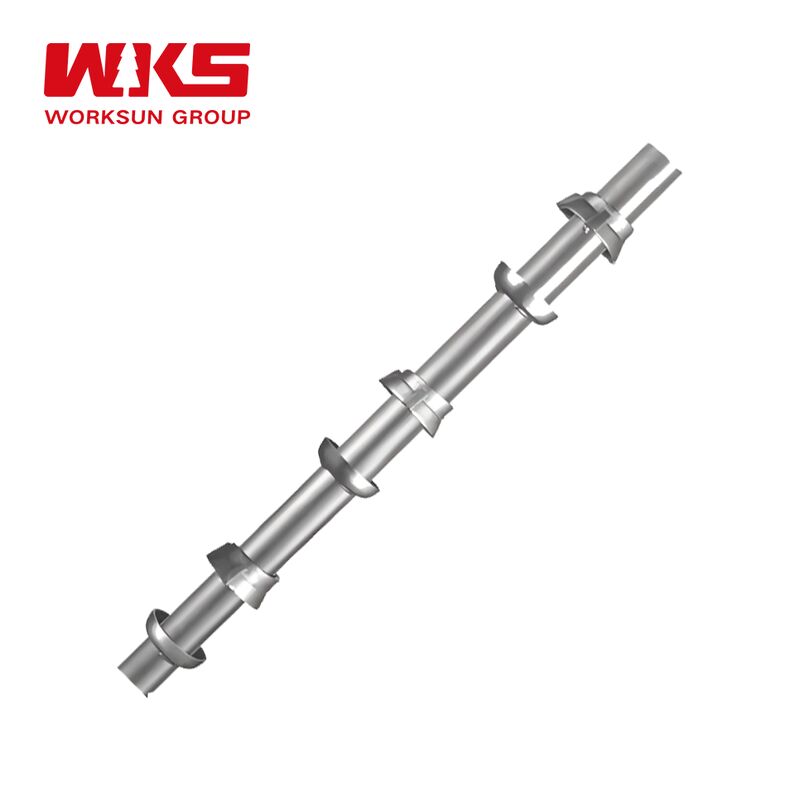

Cuplock Scaffolding with 1.8m Ledger and 2.0m Standard for Access Tower

Overview

Cuplock Scaffolding is a high-load modular system designed for fast assembly in building facades, bridge decks, and heavy-duty shoring. It uses a unique cup-and-blade locking mechanism on vertical standards, eliminating the need for loose bolts and enabling rapid, tool-free erection for large-scale projects.

Features & Functions

Tool-Free Quick Locking: Horizontal ledgers lock into welded cups with a simple hammer-driven twist. This design allows a single worker to secure multiple connections in seconds, drastically reducing assembly and dismantling time compared to tube-and-coupler systems.
High Load Capacity & Rigidity: Engineered with high-yield steel tubes and forged blade connections, the system provides exceptional axial strength and lateral stability, making it ideal for supporting heavy concrete pours and formwork loads.
Modular Flexibility: Standard 500mm cup spacing allows for precise height adjustments and easy adaptation to various floor heights and platform levels without custom cutting.
Enhanced Safety & Durability: The positive mechanical lock prevents accidental disengagement, while hot-dip galvanized finish ensures long-term corrosion resistance in harsh environments.

Key Specifications

Material: High-Yield Steel Q345 (S355)
Standard Tube: 48.3mm OD x 3.2mm / 4.0mm Wall Thickness
Cup Spacing: 500mm (Standard Intervals)
Load Capacity: Up to 30-40 kN per standard leg (varies by bracing)
Surface Finish: Hot-Dip Galvanized (HDG)

Competitive Advantages

Superior Cost Efficiency: Faster assembly translates to significant labor cost savings. The system offers a lower total cost of ownership than ringlock for standard rectangular layouts, with high reusability and minimal maintenance.
Optimized for Speed: The intuitive connection system requires no specialized skills or tools, enabling crews to erect structures up to 40% faster than traditional scaffolding.
Reduced Component Loss: With no small loose parts like nuts or bolts, the system minimizes inventory loss and simplifies site management.

Product Parameters

Standards (Uprights)

Item No.	Length	Weight
BSCS 300	3m/9'10"	17.5kg/38.25 Ibs
BSCS 250	2.5 m/8'2"	14.57 kg/32.12 Ibs
BSCS 200	2m/6'2"	11.82 kg/26.07 Ibs
BSCS 150	1.5 m/4'11"	9.05 kg/19.95 Ibs
BSCS 100	1 m/3'3"	6.3 kg/13.91 Ibs
BSCS O50	0.5m/1'8"	3.5 kg /7.77 Ibs

Ledgers (Horizontal Braces)

Item No.	Length	Weight
BSCL 250	2.5 m/8'2"	9.35 kg/20.61 Ib
BSCL 180	1.8 m/6'	6.85 kg / 15.1 Ibs
BSCL 150	1.5 m/4'11"	5.75 kg/9.46 Ibs
BSCL 120	1.2m/4	4.29 kg/13.91 Ibs
BSCL 090	0.9m/3'	3.55 kg /7.83 Ibs
BSCL 060	0.6m/2'	2.47 kg / 5.45 Ibs

Our Services

Customized Production Services: Professional engineering team provides detailed product application solutions based on your project drawings.
Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs.
Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, responsible for operating export business of formwork and scaffolding products. Our group has two major production bases with over 20 years of production experience.

How can I get a quotation?

For simple projects with your own engineer, provide a bill of materials. For complex projects like apartments and residences, our consultants will develop an application plan based on your engineering drawings.

How long does it usually take to complete the plan and quotation?

Generally 5-8 days to complete specific plans and detailed quotations.

Can you provide free samples?

Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time after the contract is signed?

Usually 30-60 days depending on project complexity. More accurate delivery times are provided during planning.

Is the plastic template prone to deformation?

In long-term high temperature environments, slight deformation may occur. We recommend aluminum alloy formwork or steel frame wood formwork for high temperature areas.

What are the defects of the plastic template system?

Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.

What is the payment method you require?

Payments ≤1,000USD: 100% in advance. Payments ≥10,000USD: 30% T/T in advance, balance before shipment. L/C also accepted.
