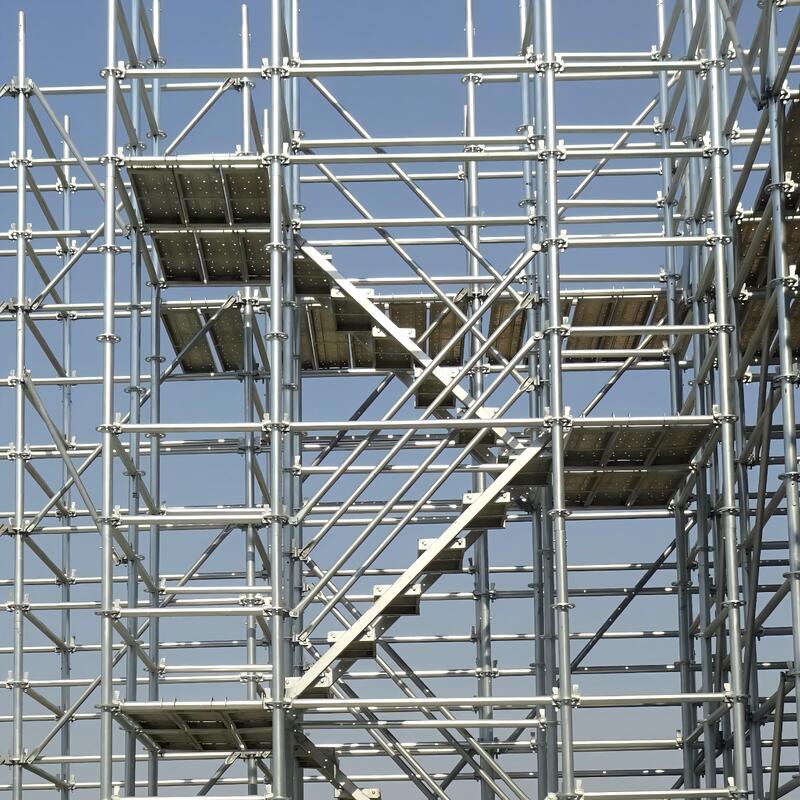

Modern Ring Lock Scaffold Heavy Duty Modular System Scaffolding Silver For Bridge Maintenance

The Ring Lock Scaffold is a high-strength, modular scaffolding system designed for fast assembly and exceptional load-bearing capacity in high-rise construction, bridge work, and industrial maintenance. Utilizing a unique rosette-and-wedge connection mechanism, it eliminates the need for loose bolts and nuts, providing a safer and more efficient alternative to traditional tube-and-clamp systems.

• Tool-Free Rapid Assembly: The system features rosettes welded to vertical standards at precise intervals (typically 500mm or 1ft), allowing horizontal ledgers and diagonal braces to be secured with a simple hammer-driven wedge. This design drastically reduces assembly time and labor costs.
• Exceptional Load Capacity & Stability: Engineered from high-grade Q355 steel, the system offers superior structural integrity. A single vertical standard can support up to 20-30 kN, with platform working loads rated for heavy-duty applications (up to 6 kN/m²), making it ideal for supporting heavy materials and equipment.
• 360-Degree Versatility: Each rosette provides 8 connection points, enabling multi-directional configurations. This flexibility allows the scaffold to adapt to complex geometries, including curved facades, circular structures, and irregular building shapes.

• Material: Q235 or Q355 Structural Steel
• Vertical Standards: Outer Diameter 48.3mm or 60.3mm; Common Lengths 500mm, 1000mm, 1500mm, 2000mm, 2500mm, 3000mm
• Surface Treatment: Hot-dip Galvanized (coating thickness ≥80μm) for superior corrosion resistance
• Safety Compliance: Designed to meet EN 12811, OSHA, and AS/NZS 1576 standards

• Bridge engineering including general elevated bridges
• Tunnel engineering
• Factory buildings
• Elevated water towers
• Power plants
• Refineries
• Special factory building support design
• Pedestrian overpasses
• Span sheds
• Storage shelves
• Chimneys
• Water towers
• Indoor and outdoor decoration
• Large-scale concert stages
• Background frames
• Stands and viewing platforms
• Styling frames
• Staircase systems
• Stage construction
• Sports competition stands
• Various other projects

• Labor Efficiency: Assembly is 2-3 times faster than traditional scaffolding, significantly reducing on-site labor costs and project timelines.
• Enhanced Safety: The positive wedge lock and rigid node design minimize installation errors and prevent accidental dislodgement, ensuring a safer working platform.
• Long-Term ROI: High durability and reusability across hundreds of projects make it a cost-effective solution for rental companies and large contractors.
• Experienced Engineering Team: Average 10+ years working experience.
• Production Expertise: Over 20 years of production experience ensuring stable product quality.
• Strategic Location: Factory located in industrial cluster area providing significant cost advantages.
• Full Cycle Services: Comprehensive project services ensuring smooth Ring-Lock Scaffold application.

• Professional engineering team provides detailed product application solutions
• Expert consultation for optimized engineering application plans
• Dedicated service teams for each project ensuring perfect product-demand matching
• Efficient construction support through timely product delivery
