Silver Heavy Duty Scaffold Q235 Modular Scaffolding System High Capacity

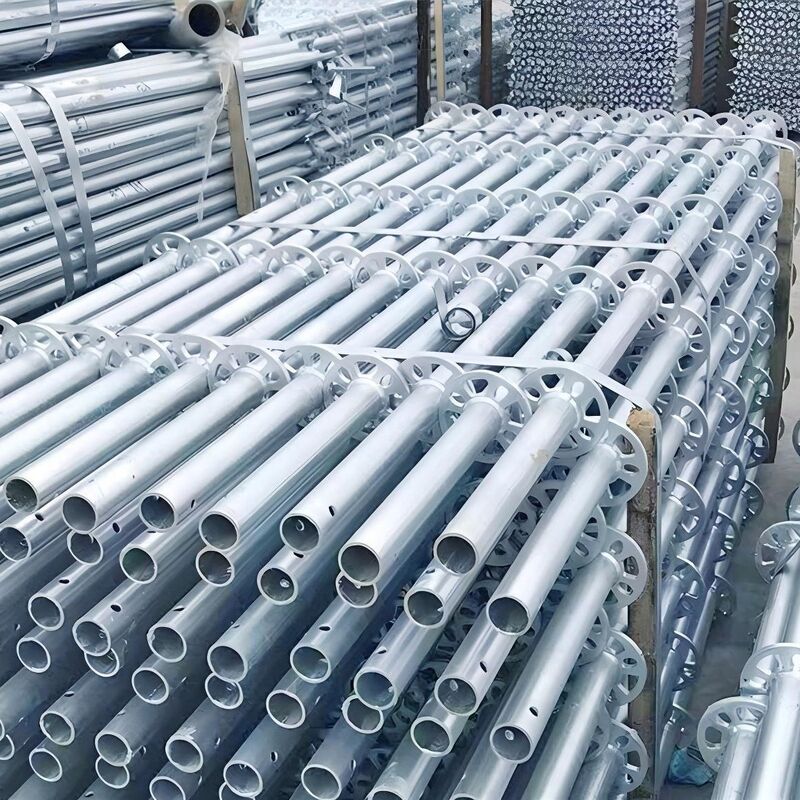

The Ring Lock Scaffold is a heavy-duty modular scaffolding system designed for high-rise construction, bridge work, and industrial maintenance. It features vertical standards with rosette connectors that allow for rapid connection of ledgers and diagonals at multiple angles, providing exceptional stability and load-bearing capacity for demanding construction sites.

• Fast Wedge Connection System: Components lock securely with a simple hammer-driven wedge, eliminating loose bolts and nuts. This speeds up assembly by up to 40% compared to traditional tube-and-clamp systems, significantly reducing labor costs.
• Exceptional Load Capacity & Stability: Built from high-strength Q355 steel, the system supports heavy working loads (typically 6 kN/m² or higher). The rigid rosette-diagonal bracing structure provides superior resistance to lateral forces and wind, ensuring a safe platform for workers and materials.
• 360-Degree Design Flexibility: Rosettes allow connections in eight directions, enabling adaptation to complex building facades, curved structures, and irregular layouts without custom cutting or special fittings.

• Material: Q355B High-Strength Steel (Yield Strength ≥355 MPa)
• Vertical Standards: Outer Diameter 48.3mm or 60.3mm; Common Lengths 500mm, 1000mm, 1500mm, 2000mm, 2500mm, 3000mm
• Surface Treatment: Hot-Dip Galvanized (Coating ≥85μm) for superior corrosion resistance
• Compliance: Meets EN 12811, OSHA, and AS/NZS 1576 standards for scaffolding safety

Widely used in bridge engineering including general elevated bridges, tunnel engineering, factory buildings, elevated water towers, power plants, refineries, and special factory building support design. Also suitable for pedestrian overpasses, span sheds, storage shelves, chimneys, water towers, indoor and outdoor decoration, large-scale concert stages, background frames, stands, viewing platforms, styling frames, staircase systems, stage construction, sports competition stands, and various other projects.
