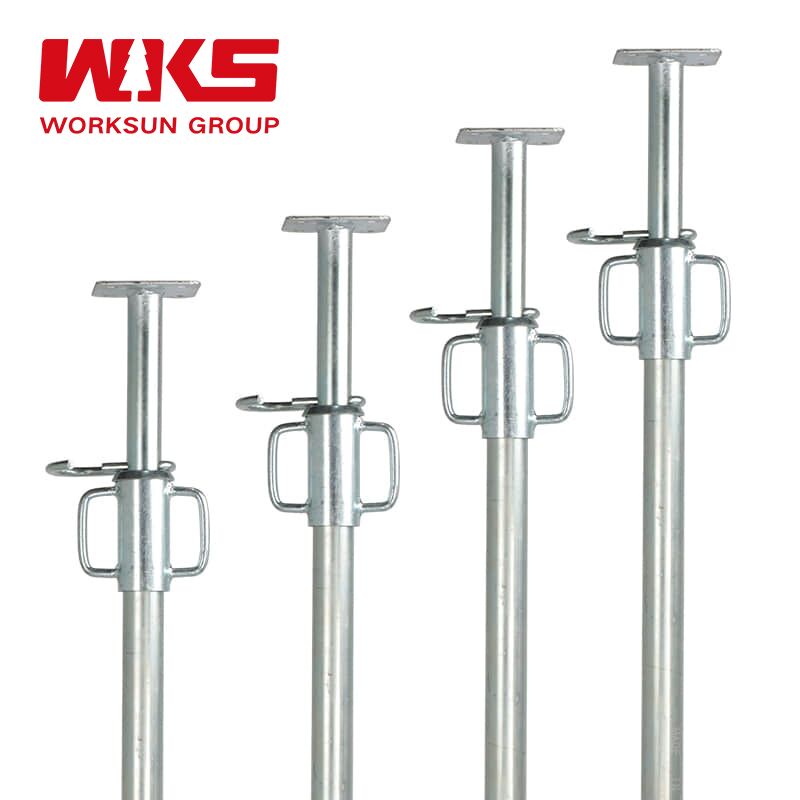

2200mm - 4000mm Steel Scaffolding Prop Heavy Duty Adjustable Telescopic Props

2200mm - 4000mm Steel Scaffolding Prop Heavy Duty Adjustable Telescopic Props

Brand Name:	WKS
MOQ:	200/Piece
Price:	US $6.00 - 11.00/ Piece
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Steel Scaffolding Prop

Scaffolding Part Type:

Scaffolding Props

Colour:

Blue Red Yellow Green Silver Orange Purple Black Or Customized

Thickness:

1.4mm-4mm

Inner Tube Diameter:

48mm

Outer Tube Diameter:

60mm

Usage:

Construction Usage

Size:

2200-4000mm Or Customized

Type:

Spain/Italy/Middle East

Surface Treatment:

Painting, Powder Coating, Electro-galvanizing Or Hot-dip Galvanizing

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

2200mm Steel Scaffolding Prop

4000mm Steel Scaffolding Prop

Heavy Duty Adjustable Telescopic Props

Product Description

Steel Adjustable Prop For Scaffolding Support And Temporary Structure Bracing

Adjustable Steel Prop: Heavy-Duty Telescopic Shoring for Slab & Beam Support

Adjustable Steel Prop (Acrow Prop/Scaffolding Prop) is a telescopic steel column used for temporary vertical support of concrete formwork, slabs, and beams during construction. It features an outer tube, inner tube, pin-hole coarse adjustment, and threaded fine adjustment to ensure precise height alignment and safe load transfer in high-rise and civil engineering projects.

Key Features & Functions

High Load Capacity & Stability: Manufactured from Q235 or Q345 steel tubes, it offers a safe working load (SWL) of 20-35 kN (approx. 2-3.5 tons), providing reliable support under wet concrete pressure and construction loads.
Dual Adjustment System: Combines pin-hole coarse adjustment (typically at 100mm or 150mm intervals) with threaded fine adjustment, allowing millimeter-level accuracy for slab leveling and alignment on uneven surfaces.
Durable & Reusable: Hot-dip galvanized or painted finish resists site corrosion, ensuring dozens of reuse cycles across multiple projects with minimal maintenance.

Technical Parameters

Height Range: Standard models cover 1.6-3.0 m (light duty) to 2.5-5.0 m (heavy duty); custom lengths available.
Tube Specifications: Common configurations include Ø48.3mm inner / Ø60.3mm outer tube; wall thickness 2.0-3.0 mm.
Standards Compliance: Designed and tested in accordance with EN 1065, BS 4074, or AS/NZS 1577 for shoring safety and structural integrity.

Competitive Advantages

Our Adjustable Steel Props are engineered with full-penetration welding and cold-rolled threads for maximum joint strength. Compared to traditional pipe scaffolding, they require 30-50% fewer units per square meter, drastically cutting labor and transport costs while providing certified load capacity for demanding applications like bridge decks and high-rise buildings.

Product Specifications

Heavy Duty Prop Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-HDP601730	1.7 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP601830	1.8 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP601832	1.8 - 3.2 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602035	2.0 - 3.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602036	2.0 - 3.6 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602240	2.2 - 4.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602545	2.5 - 4.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602750	2.7 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP603050	3.0 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm

Light Duty Prop - Spanish Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-LDPS480611	0.6 - 1.1 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS480814	0.8 - 1.4 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS481629	1.6 - 2.9 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS481832	1.8 - 3.2 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS482036	2.0 - 3.6 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS482240	2.2 - 4.0 m	40 mm	48 mm	1.4 - 2.5 mm

Light Duty Prop - Italian Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-LDPI481629	1.6 - 2.9 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI481832	1.8 - 3.2 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI481832	2.0 - 3.5 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI482036	2.0 - 3.6 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI482240	2.2 - 4.0 m	48 mm	56 mm	1.4 - 2.5 mm

Push-Pull Prop Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-PPP561730	1.7 - 3.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562035	2.0 - 3.5 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562240	2.2 - 4.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562545	2.5 - 4.5 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562750	2.7 - 5.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP601730	1.7 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602035	2.0 - 3.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602240	2.2 - 4.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602545	2.5 - 4.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602750	2.7 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm

Aluminum Prop Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Weight	Load-Bearing Range
WKS-ALP800120	0.8 - 1.2 m	715 mm	421 mm	10.47 kg	70 - 90 kN
WKS-ALP145250	1.45 - 2.5 m	1365 mm	1071 mm	15.75 kg	60 - 70 kN
WKS-ALP198350	1.98 - 3.5 m	1865 mm	1571 mm	19.45 kg	42 - 88 kN
WKS-ALP260480	2.6 - 4.8 m	2515 mm	2221 mm	24.6 kg	25 - 85 kN
WKS-ALP430625	4.3 - 6.25 m	4211 mm	1975 mm	30.48 kg	20 - 56 kN

Our Services

Customized Production Services: Assist in completing customized product configurations based on architectural and structural drawings. Professional engineering team provides detailed product application solutions.

Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs. Provide reasonable suggestions for engineering application plans.

Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects. Independent service teams ensure product production matches demand perfectly.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in production and processing for over 20 years.

How can I get a quotation?

For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects requiring plastic formwork, our consultants will communicate with you and develop application plans based on engineering drawings.

How long does it take to complete the plan and quotation?

Generally takes about 5-8 days to complete specific plans and detailed quotations after receiving engineering drawings.

Can you provide free samples?

Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time?

According to project complexity, usually takes 30-60 days to complete stocking. More accurate delivery times are estimated during planning and quotation.

Is the plastic template prone to deformation?

In long-term high temperature environments, concrete pouring may cause slight deformation. We recommend using aluminum alloy formwork or steel frame wood formwork systems in high temperature areas.

What are the defects of the plastic template system?

Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.

What is the payment method you require?

Payment ≤1,000 USD: 100% in advance. Payment ≥10,000 USD: 30% T/T in advance, balance before shipment. Or L/C.
