High Load Capacity Adjustable Steel Prop 2200mm - 4000mm Adjustable Telescopic Prop For Industrial

High Load Capacity Adjustable Steel Prop 2200mm - 4000mm Adjustable Telescopic Prop For Industrial

Brand Name:	WKS
MOQ:	200/Piece
Price:	US $6.00 - 11.00/ Piece
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Adjustable Steel Prop

Scaffolding Part Type:

Scaffolding Props

Usage:

Construction Usage

Colour:

Blue Red Yellow Green Silver Orange Purple Black Or Customized

Type:

Spain/Italy/Middle East

Surface Treatment:

Painting, Powder Coating, Electro-galvanizing Or Hot-dip Galvanizing

Thickness:

1.4mm-4mm

Size:

2200-4000mm Or Customized

Inner Tube Diameter:

48mm

Outer Tube Diameter:

60mm

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

High Load Capacity Adjustable Steel Prop

Adjustable Steel Prop 2200mm

4000mm Adjustable Telescopic Prop

Product Description

High Load Capacity Adjustable Steel Prop For Industrial And Slab Work

Adjustable Steel Prop: Heavy-Duty Vertical Shoring for Concrete Formwork

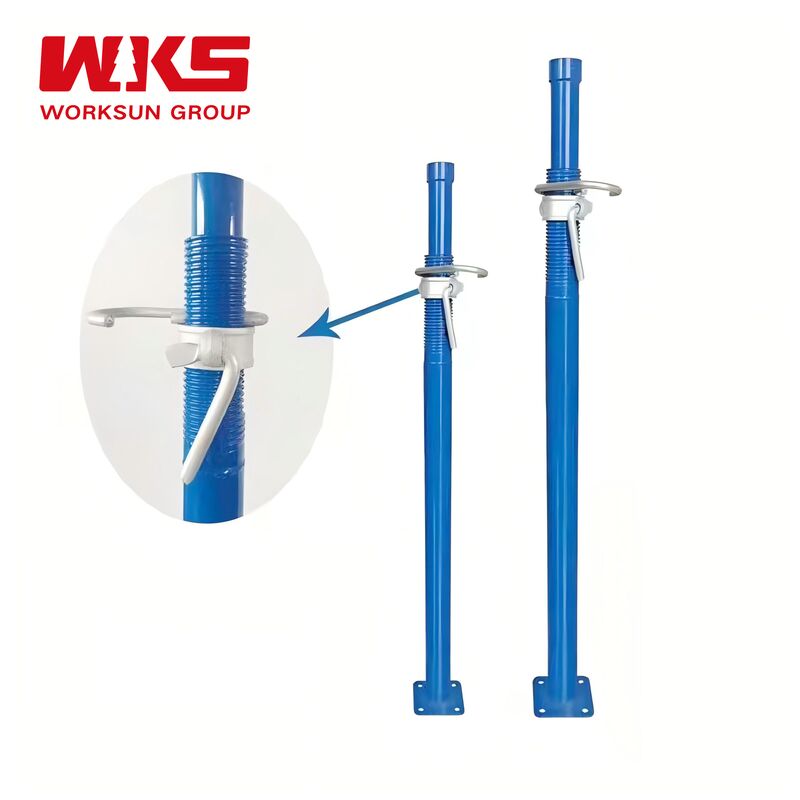

The Adjustable Steel Prop (also known as Acrow Prop or Telescopic Steel Shore) is a high-strength, reusable vertical support system designed for temporary shoring of slabs, beams, and formwork during concrete construction. Consisting of an outer tube, inner tube, and precision threaded adjustment mechanism, it provides reliable load-bearing capacity for high-rise buildings, bridges, and industrial projects.

Key Features & Functions

High Load-Bearing Capacity: Manufactured from Q235 or Q355 structural steel, it offers a safe working load (SWL) of 20-35 kN (approx. 2-3.5 tons), ensuring stability under wet concrete pressure and construction loads.
Precise Height Adjustment: Features a dual adjustment system—coarse adjustment via pin holes for rapid setup and fine-tuning via a threaded collar or screw jack for millimeter-level accuracy in slab leveling.
Durable & Corrosion Resistant: Hot-dip galvanized or painted finish protects against rust and site wear, enabling dozens of reuse cycles across multiple projects, reducing long-term costs.

Technical Parameters

Height Range: Standard models cover 1.8-4.5 m (e.g., Class C: 2070-4200mm); heavy-duty versions extend to 5.0 m.
Tube Specifications: Common configuration Ø48.3mm inner / Ø60.3mm outer tube; wall thickness 2.0-3.0 mm.
Standards & Compliance: Designed and tested in accordance with EN 1065, BS 4074, and GB standards for structural safety and load performance.

Competitive Advantages

Our Adjustable Steel Props are engineered with full-penetration welding and cold-rolled threads for maximum joint strength and durability. Compared to traditional pipe-and-coupler scaffolding, they offer faster installation, require 30-50% fewer units per square meter, and provide certified load capacity for demanding applications, ensuring both project safety and significant labor savings.

Heavy Duty Prop Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-HDP601730	1.7 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP601830	1.8 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP601832	1.8 - 3.2 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602035	2.0 - 3.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602036	2.0 - 3.6 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602240	2.2 - 4.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602545	2.5 - 4.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP602750	2.7 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-HDP603050	3.0 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm

Light Duty Prop - Spanish Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-LDPS480611	0.6 - 1.1 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS480814	0.8 - 1.4 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS481629	1.6 - 2.9 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS481832	1.8 - 3.2 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS482036	2.0 - 3.6 m	40 mm	48 mm	1.4 - 2.5 mm
WKS-LDPS482240	2.2 - 4.0 m	40 mm	48 mm	1.4 - 2.5 mm

Light Duty Prop - Italian Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-LDPI481629	1.6 - 2.9 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI481832	1.8 - 3.2 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI481832	2.0 - 3.5 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI482036	2.0 - 3.6 m	48 mm	56 mm	1.4 - 2.5 mm
WKS-LDPI482240	2.2 - 4.0 m	48 mm	56 mm	1.4 - 2.5 mm

Push-Pull Prop Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Tube Thickness
WKS-PPP561730	1.7 - 3.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562035	2.0 - 3.5 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562240	2.2 - 4.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562545	2.5 - 4.5 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP562750	2.7 - 5.0 m	48 mm	56 mm	1.4 - 4.0 mm
WKS-PPP601730	1.7 - 3.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602035	2.0 - 3.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602240	2.2 - 4.0 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602545	2.5 - 4.5 m	48 mm	60 mm	1.4 - 4.0 mm
WKS-PPP602750	2.7 - 5.0 m	48 mm	60 mm	1.4 - 4.0 mm

Aluminum Prop Specifications

Code	Adjustable Height	Inner Tube	Outer Tube	Weight	Load-Bearing Range
WKS-ALP800120	0.8 - 1.2 m	715 mm	421 mm	10.47 kg	70 - 90 kN
WKS-ALP145250	1.45 - 2.5 m	1365 mm	1071 mm	15.75 kg	60 - 70 kN
WKS-ALP198350	1.98 - 3.5 m	1865 mm	1571 mm	19.45 kg	42 - 88 kN
WKS-ALP260480	2.6 - 4.8 m	2515 mm	2221 mm	24.6 kg	25 - 85 kN
WKS-ALP430625	4.3 - 6.25 m	4211 mm	1975 mm	30.48 kg	20 - 56 kN

Our Services

Customized Production Services: Assist in completing customized product configurations based on architectural and structural drawings. Professional engineering team provides detailed product application solutions.
Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs. Provide reasonable suggestions for engineering application plans.
Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects. Independent service teams ensure product production matches demand perfectly.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in production and processing for over 20 years.

How can I get a quotation?

For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects requiring plastic formwork, our consultants will communicate with you and develop application plans based on engineering drawings.

How long does it take to complete the plan and quotation?

Generally takes about 5-8 days to complete specific plans and detailed quotations after receiving engineering drawings.

Can you provide free samples?

Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time?

According to project complexity, usually takes 30-60 days to complete stocking. More accurate delivery times are estimated during planning and quotation.

Is the plastic template prone to deformation?

In long-term high temperature environments, concrete pouring may cause slight deformation. We recommend using aluminum alloy formwork or steel frame wood formwork systems in high temperature areas.

What are the defects of the plastic template system?

Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.

What is the payment method you require?

Payment ≤1,000 USD: 100% in advance. Payment ≥10,000 USD: 30% T/T in advance, balance before shipment. Or L/C.
