Painted / Galvanized Cuplock Scaffolding System Robust Flexible Scaffolding

Cuplock Scaffolding is a robust modular system designed for high-load applications such as building facades, bridge construction, and concrete shoring. Its signature cup-and-blade locking mechanism ensures rapid, tool-free assembly, making it a preferred choice for projects demanding both speed and structural integrity.

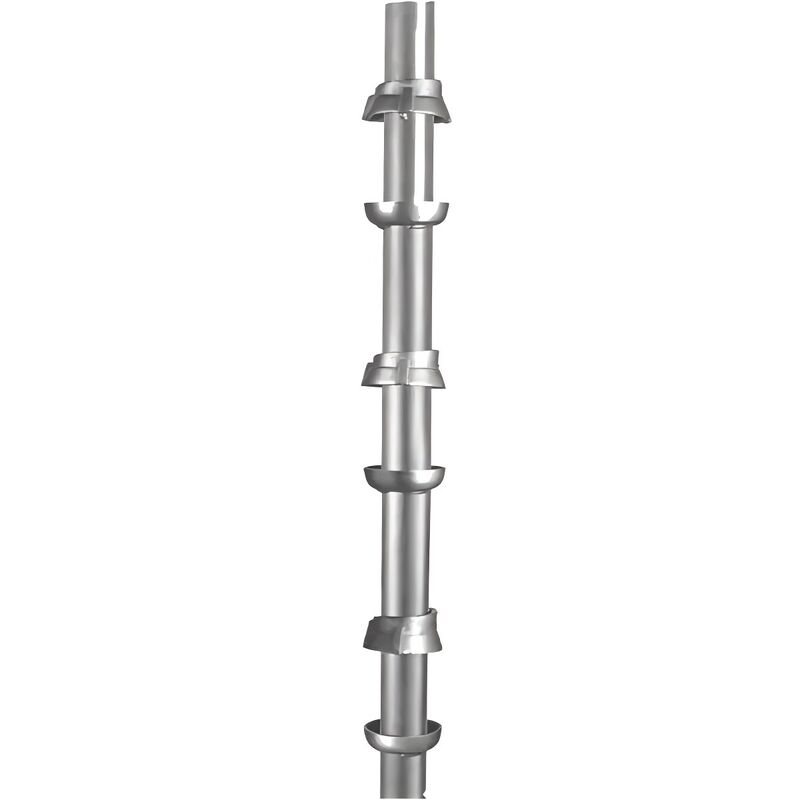

• Tool-Free Quick Locking: Horizontal ledgers lock into vertical standards with a simple twist of the top cup. This mechanism secures up to four connections simultaneously, drastically reducing assembly time and labor costs compared to traditional systems.
• High Load Capacity: Engineered for heavy-duty use, the system reliably supports concentrated loads from workers, equipment, and materials, making it ideal for formwork support and masonry work.
• Rigid & Stable Grid: The uniform 500mm node spacing creates a highly stable grid structure that minimizes sway and ensures a safe working platform even at significant heights.
• Modular Flexibility: Standard components allow for easy configuration of straight walls, towers, and large-area decks, with the ability to adapt to various project layouts.

• Material: High-Strength Steel (Q235 or Q345)
• Standard Tube: 48.3mm Outer Diameter
• Wall Thickness: 2.75mm to 3.2mm
• Node Spacing: 500mm (Standard)
• Load Capacity: Up to 4.5 kN/m² (Heavy Duty)
• Surface: Hot-Dip Galvanized

• Superior Cost Efficiency: Faster assembly than tube-and-coupler or ringlock systems for straight-line projects, leading to significant savings in labor and equipment rental time.
• Heavy-Duty Performance: Offers a higher load capacity and greater rigidity than standard frame scaffolding, suitable for more demanding industrial and infrastructure projects.
• Minimal Loose Parts: The integrated locking system reduces the risk of lost or dropped components on site, enhancing safety and simplifying inventory management.

• Customized Production Services: Professional engineering team provides detailed product application solutions based on your project drawings.
• Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs.
• Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects.
