Adjustable Steel Prop
Created with Pixso.

2200mm - 4000mm Heavy Duty Shoring Props Reusable Acrow Support Props For Concrete Slab and Beam Support

2200mm - 4000mm Heavy Duty Shoring Props Reusable Acrow Support Props For Concrete Slab and Beam Support

Brand Name: WKS
MOQ: 200/Piece
Price: US $6.00 - 11.00/ Piece
Payment Terms: T/T
Supply Ability: 1000 piece in 10 days
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei,China
Certification:
ROHS
Product Name:
Adjustable Steel Prop
Scaffolding Part Type:
Scaffolding Props
Colour:
Blue Red Yellow Green Silver Orange Purple Black Or Customized
Thickness:
1.4mm-4mm
Inner Tube Diameter:
48mm
Outer Tube Diameter:
60mm
Usage:
Construction Usage
Size:
2200-4000mm Or Customized
Type:
Spain/Italy/Middle East
Surface Treatment:
Painting, Powder Coating, Electro-galvanizing Or Hot-dip Galvanizing
Packaging Details:
Bundled / Tied in bundles/Optimization of container loading
Highlight:

2200mm Heavy Duty Shoring Props

,

4000mm Heavy Duty Shoring Props

,

Reusable Acrow Support Props

Product Description
Heavy Duty Adjustable Steel Prop for Concrete Slab and Beam Support

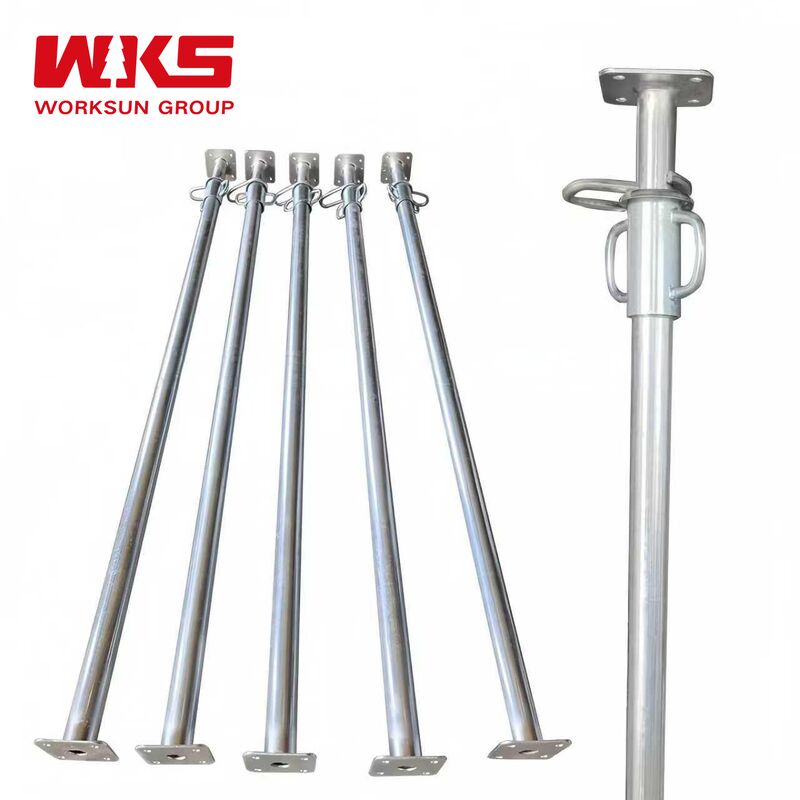

Adjustable Steel Prop (Acrow Prop) is a telescopic vertical shoring system for temporary support of concrete slabs, beams, and formwork. Manufactured from high-strength steel, it provides reliable load-bearing capacity for construction, renovation, and civil engineering projects.
Features & Functions
  • Precise Height Adjustment: Combines pin-hole coarse adjustment with a swivel nut for fine-tuning (±50mm), enabling quick leveling to accommodate varying floor heights and slab thicknesses.
  • Heavy-Duty Load Bearing: Engineered to support significant dead and live loads during concrete pouring, with reinforced base plates to prevent sinking and ensure structural stability.
  • Quick Connect & Strike: Simple two-person (or crane-assisted) handling allows for rapid deployment and dismantling, significantly speeding up the formwork cycle compared to traditional timber shoring.
  • Integrated Safety: Features a safety pin lock and anti-slip thread design to prevent accidental collapse, with a "safe zone" on the inner tube to protect workers' hands during adjustment.
Key Specifications
  • Material: Q235 / S355 High-Strength Steel
  • Standard Sizes: 60/48 (Medium Duty), 75/60 (Heavy Duty)
  • Adjustable Range: 1.5m - 5.0m (e.g., 2.0m-3.5m, 2.2m-4.0m common)
  • Working Load: 20kN (Class D) / 30kN (Class E) per EN 1065
  • Surface: Hot-Dip Galvanized / Painted
Competitive Advantages
  • Cost-Efficient Reusability: With proper maintenance, these props can be reused hundreds of times across multiple projects, offering a lower long-term cost than disposable timber shores.
  • Space-Saving Storage: Collapses to a compact size (approx. 50% of max height), optimizing container and site storage space.
  • Global Compliance: Manufactured to EN 1065, GB, or AS 3610 standards, ensuring acceptance on international construction sites and compatibility with major formwork systems.
2200mm - 4000mm Heavy Duty Shoring Props Reusable Acrow Support Props For Concrete Slab and Beam Support 0
Product Specifications
Heavy Duty Prop Specifications Code Adjustable Height Inner Tube Outer Tube Tube Thickness
WKS-HDP601730 1.7 - 3.0 m 48 mm 60 mm 1.4 - 4.0 mm
WKS-HDP601830 1.8 - 3.0 m 48 mm 60 mm 1.4 - 4.0 mm
WKS-HDP601832 1.8 - 3.2 m 48 mm 60 mm 1.4 - 4.0 mm
WKS-HDP602035 2.0 - 3.5 m 48 mm 60 mm 1.4 - 4.0 mm
WKS-HDP602036 2.0 - 3.6 m 48 mm 60 mm 1.4 - 4.0 mm
WKS-HDP602240 2.2 - 4.0 m 48 mm 60 mm 1.4 - 4.0 mm
WKS-HDP602545 2.5 - 4.5 m 48 mm 60 mm 1.4 - 4.0 mm
WKS-HDP602750 2.7 - 5.0 m 48 mm 60 mm 1.4 - 4.0 mm
WKS-HDP603050 3.0 - 5.0 m 48 mm 60 mm 1.4 - 4.0 mm
Light Duty Prop - Spanish Specifications Code Adjustable Height Inner Tube Outer Tube Tube Thickness
WKS-LDPS480611 0.6 - 1.1 m 40 mm 48 mm 1.4 - 2.5 mm
WKS-LDPS480814 0.8 - 1.4 m 40 mm 48 mm 1.4 - 2.5 mm
WKS-LDPS481629 1.6 - 2.9 m 40 mm 48 mm 1.4 - 2.5 mm
WKS-LDPS481832 1.8 - 3.2 m 40 mm 48 mm 1.4 - 2.5 mm
WKS-LDPS482036 2.0 - 3.6 m 40 mm 48 mm 1.4 - 2.5 mm
WKS-LDPS482240 2.2 - 4.0 m 40 mm 48 mm 1.4 - 2.5 mm
Light Duty Prop - Italian Specifications Code Adjustable Height Inner Tube Outer Tube Tube Thickness
WKS-LDPI481629 1.6 - 2.9 m 48 mm 56 mm 1.4 - 2.5 mm
WKS-LDPI481832 1.8 - 3.2 m 48 mm 56 mm 1.4 - 2.5 mm
WKS-LDPI481832 2.0 - 3.5 m 48 mm 56 mm 1.4 - 2.5 mm
WKS-LDPI482036 2.0 - 3.6 m 48 mm 56 mm 1.4 - 2.5 mm
WKS-LDPI482240 2.2 - 4.0 m 48 mm 56 mm 1.4 - 2.5 mm
Push-Pull Prop Specifications Code Adjustable Height Inner Tube Outer Tube Tube Thickness
WKS-PPP561730 1.7 - 3.0 m 48 mm 56 mm 1.4 - 4.0 mm
WKS-PPP562035 2.0 - 3.5 m 48 mm 56 mm 1.4 - 4.0 mm
WKS-PPP562240 2.2 - 4.0 m 48 mm 56 mm 1.4 - 4.0 mm
WKS-PPP562545 2.5 - 4.5 m 48 mm 56 mm 1.4 - 4.0 mm
WKS-PPP562750 2.7 - 5.0 m 48 mm 56 mm 1.4 - 4.0 mm
WKS-PPP601730 1.7 - 3.0 m 48 mm 60 mm 1.4 - 4.0 mm
WKS-PPP602035 2.0 - 3.5 m 48 mm 60 mm 1.4 - 4.0 mm
WKS-PPP602240 2.2 - 4.0 m 48 mm 60 mm 1.4 - 4.0 mm
WKS-PPP602545 2.5 - 4.5 m 48 mm 60 mm 1.4 - 4.0 mm
WKS-PPP602750 2.7 - 5.0 m 48 mm 60 mm 1.4 - 4.0 mm
Aluminum Prop Specifications Code Adjustable Height Inner Tube Outer Tube Weight Load-Bearing Range
WKS-ALP800120 0.8 - 1.2 m 715 mm 421 mm 10.47 kg 70 - 90 kN
WKS-ALP145250 1.45 - 2.5 m 1365 mm 1071 mm 15.75 kg 60 - 70 kN
WKS-ALP198350 1.98 - 3.5 m 1865 mm 1571 mm 19.45 kg 42 - 88 kN
WKS-ALP260480 2.6 - 4.8 m 2515 mm 2221 mm 24.6 kg 25 - 85 kN
WKS-ALP430625 4.3 - 6.25 m 4211 mm 1975 mm 30.48 kg 20 - 56 kN
2200mm - 4000mm Heavy Duty Shoring Props Reusable Acrow Support Props For Concrete Slab and Beam Support 1
Our Services
  • Customized Production Services: Assist in completing customized product configurations based on architectural and structural drawings. Professional engineering team provides detailed product application solutions.
  • Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs. Provide reasonable suggestions for engineering application plans.
  • Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects. Independent service teams ensure product production matches demand perfectly.
Frequently Asked Questions
  • Are you a trading company or a manufacturer?
    We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in production and processing for over 20 years.
  • How can I get a quotation?
    For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects requiring plastic formwork, our consultants will communicate with you and develop application plans based on engineering drawings.
  • How long does it take to complete the plan and quotation?
    Generally takes about 5-8 days to complete specific plans and detailed quotations after receiving engineering drawings.
  • Can you provide free samples?
    Yes, we can provide samples. You will need to pay for the shipping cost.
  • How long is the estimated delivery time?
    According to project complexity, usually takes 30-60 days to complete stocking. More accurate delivery times are estimated during planning and quotation.
  • Is the plastic template prone to deformation?
    In long-term high temperature environments, concrete pouring may cause slight deformation. We recommend using aluminum alloy formwork or steel frame wood formwork systems in high temperature areas.
  • What are the defects of the plastic template system?
    Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.
  • What is the payment method you require?
    Payment ≤1,000 USD: 100% in advance. Payment ≥10,000 USD: 30% T/T in advance, balance before shipment. Or L/C.
2200mm - 4000mm Heavy Duty Shoring Props Reusable Acrow Support Props For Concrete Slab and Beam Support 2
