High Strength Marine Board Film Faced Plywood with Phenolic Film Coating and Marine-Grade Core for Concrete Formwork

High Strength Marine Board Film Faced Plywood with Phenolic Film Coating and Marine-Grade Core for Concrete Formwork

Brand Name:	WKS
MOQ:	US $7.50 - 10.80/ Piece
Price:	US $55.00 - 70.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Film Faced Plywood

Moisture Content:

6-12%

Density:

Around 520 Kg/m3

Gluetype:

Melamine Urea Formaldehyde (MUF) Or Phenolic Resin Adhesive

Thickness:

Typically Ranges From 12mm To 25mm

Coretype:

Poplar, Eucalyptus, Or Other Hardwood Cores

Specification:

1250*2500 (customized Size)

Size:

Standard Size 1220mm X 2440mm (4ft X 8ft)

Weight:

Varies Depending On Thickness And Core Material

Layers:

3/5/7/9/11/13/15/18 Layers

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

High Strength Film Faced Plywood

Phenolic Film Coating Marine Board Plywood

Marine-Grade Core Concrete Formwork Plywood

Product Description

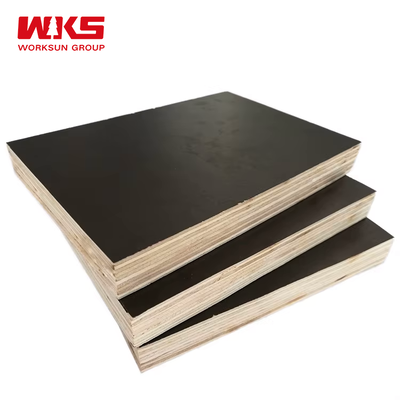

High Strength Marine Board Film Faced Plywood for Concrete Formwork

Product Overview

Marine Board Film Faced Plywood is a premium-grade concrete formwork panel engineered with a high-density hardwood core and a phenolic resin film coating on both surfaces. Combining the superior core quality of marine-grade plywood with the durable film facing of traditional formwork panels, this product delivers exceptional waterproof performance, outstanding reusability, and a smooth concrete finish. It is widely used in residential construction, commercial buildings, bridges, tunnels, and infrastructure projects where high-strength formwork and reliable concrete casting are required.

Key Advantages

Phenolic Film Coating - Provides a smooth, non-stick surface that releases cleanly from concrete and delivers a plaster-free finish
Marine-Grade Core - High-density hardwood construction with void-free bonding ensures structural integrity under heavy loads
Superior Waterproof Performance - WBP (Weather and Boil Proof) phenolic glue withstands extreme moisture and humid conditions
High Reusability - Delivers multiple pour cycles with proper maintenance, significantly reducing formwork costs
Excellent Dimensional Stability - Maintains flatness and thickness tolerance across repeated uses
Easy On-Site Handling - Can be cut, drilled, and installed with standard woodworking tools

Customization Capabilities

We offer full customization to suit your project requirements:

Panel sizes: 1220×2440mm, 1250×2500mm, 915×1830mm, 1200×1800mm (custom available)
Thickness: 6mm, 9mm, 12mm, 15mm, 18mm, 21mm, 25mm, 30mm
Film type: Black film, brown film, anti-slip film
Core materials: Poplar, birch, hardwood, combi core
Glue grade: MR, WBP melamine, WBP phenolic
Edge sealing: Waterproof acrylic paint treatment

Technical Specifications

Parameter	Specification
Core Material	Hardwood / Poplar / Birch / Combi Core
Film Type	Phenolic (Black / Brown / Anti-slip)
Film Weight	120 g/m² (brown) - 240 g/m² (black)
Standard Sizes	1220×2440mm / 1250×2500mm / 915×1830mm
Thickness Range	6mm - 30mm
Glue Type	WBP Phenolic (Water & Boil Proof)
Density	520-720 kg/m³
Moisture Content	8% - 12%
Thickness Tolerance	±0.5mm
Edge Treatment	Waterproof paint sealing

Quality Features

High-density marine-grade core with void-free construction
Phenolic film overlay for superior release and concrete finish
WBP phenolic glue bond for maximum water resistance
Precision sanding for consistent thickness and flatness
Waterproof edge sealing to prevent delamination

Typical Applications

High-rise residential and commercial building formwork
Bridge deck and tunnel concrete lining
Column, beam, and slab formwork
Foundation and retaining wall construction
Precast concrete element manufacturing
Infrastructure and heavy civil engineering projects

Quality Assurance

Manufactured under strict quality control standards
Each panel inspected for thickness, dimensions, moisture content, and bonding strength
Premium raw materials sourced from certified suppliers

Lead Time & Minimum Order

Standard orders: 15-20 days
Custom projects: 20-30 days (depending on specifications)
Factory direct - competitive pricing
