1220x2440mm Phenolic Faced Birch Plywood Customized Black Birch Plywood 18mm

1220x2440mm Phenolic Faced Birch Plywood Customized Black Birch Plywood 18mm

Brand Name:	WKS
MOQ:	US $7.50 - 10.80/ Piece
Price:	US $55.00 - 70.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Phenolic Faced Birch Plywood

Material:

Plywood

Type:

Wall Form

Usage:

Concorete Formwork

Color:

Customized Color

Size:

Non-standard:custom-made

Advantage:

Quick Installation

Brand:

Worksun

Moisture Content:

6-12%

Keywords:

Comercial Plywood

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

1220x2440mm Film Faced Birch Plywood

Customized Black Birch Plywood

Black Birch Plywood 18mm

Product Description

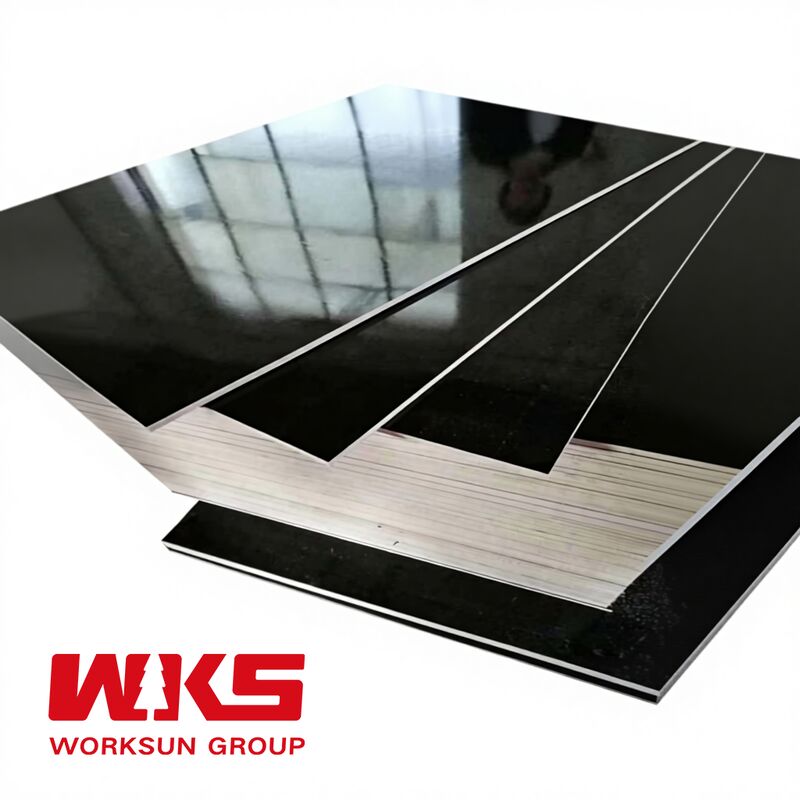

18mm Film Faced Birch Plywood 1220x2440mm for Concrete Formwork Shuttering

Product Overview

The Wood Plywood Formwork System (Film Faced Plywood) is a high-performance temporary support structure engineered for precise concrete forming. Composed of premium wood veneers (Poplar, Birch, or Eucalyptus) and bonded with high-grade phenolic or melamine glue, it undergoes a sophisticated high-temperature hot pressing process. Its primary use is to achieve a professional "clear water finish" for cast-in-place concrete, eliminating the need for secondary plastering and reducing overall project costs.

Production Advantages

31 Years of Expertise: Founded in 1993 as one of China's first film-faced plywood manufacturers, providing unmatched stability in phenolic resin impregnation.
30+ Reuse Cycles: Engineered with 1st-grade veneers and a "three-times pressing" process to ensure long-term durability and cost-effectiveness.
± 0.5mm Precision Control: Exceptional thickness tolerance guarantees tight joints in large-scale infrastructure like bridges and apartments, enabling a plaster-free finish.
1500x2500mm Maximum Size: The large format minimizes surface joints, resulting in an extraordinarily smooth and aesthetically pleasing concrete surface.

Specifications & Features

Item	Specification & Features
Product Name	Film Faced Plywood
Core Material	Poplar/Birch/Eucalyptus/Combine
Color of film faced paper	Brown/Red/Black/Customized Pattern
Glue	Melamine glue/Phenolic glue/MR Glue
Size(mm)	1200×1800, 1200×2400, 1220×2440, 1250×2500, etc.
Length (width) Tolerance	+/-2mm
Thickness(mm)	8-30mm
Thickness tolerance	+/-0.5mm
Density	550-770kg/m³
Number of Layers	from 5 up to 21 depending on thickness
Processing of edge	waterproof paint in different color
Moisture Content	6-12%
Manufacturing Process	a. First or second level veneer formed by one-time hot pressing. b. First or second level veneer formed by two-times pressing, one-time cold press and one-time hot press. c. First grade veneer formed by three-times pressing, one-time cold press, one-time burnishing&press and one-time hot press. d. Recycling film faced plywood insertion/finger connection for one-time hot pressing molding.

Application Scope

Construction Industry: As one of the molds for concrete pouring, film faced plywood is widely used in various construction buildings, such as high-floor apartments, commercial buildings, villas, bridges, hospitals, schools, and so on.
Outdoor Stage: The film paper on the surface of the Film Faced Plywood can be customized to press and stick the anti slip facial mask paper, which is used for various types of outdoor stage construction.
Goods Shelves and Box Type Vehicle Flooring: Due to the waterproof, wear-resistant, and pressure resistant properties of Film Faced Plywood, they are also widely used in warehouses (shelves), railway freight cars, and truck floors and sidewalls.

Our Services

Consulting Services: Based on the customer's usage scenario and intended use, we recommend the most suitable and cost-effective products to help customers save costs.
Product Supporting Services: If the customer's usage scenario is in the construction of concrete pouring projects, our company has a professional team that can help customers calculate the accessories of the plywood (such as tie rod, reinforced steel pipes, plastic sleeves, etc.) that they need to use based on their pouring structure.
Product Quality Inspection: Each product will undergo quality inspection, and any non-conforming products will be individually picked out as scrap or used for other purposes.
After Sales Service: Our sales team will be ready to solve any product problems you encounter at any time, ensuring immediate response after customer feedback.

Frequently Asked Questions

How to get a sample? Is the sample chargeable or free?

Please contact us via WhatsApp, WeChat, or email and let us know your real needs. We will promptly contact you and confirm the accurate requirements before mailing you the samples.

Are you a trading company or a manufacturer?

Firstly, we are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company. Secondly, our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 20 years.

How to get quotation?

Please provide us the required list with the details of production's quality, specifications, and quantity, and we will provide you with an accounting quotation.

How long is your delivery cycle?

Under normal circumstances, the delivery cycle is around 5 days. If you require fully customized production of the product, the delivery cycle is generally around 10-15 days.

What is the payment method you require?

T/T 30% deposit payment before manufacture, and 70% balanced payment against B/L Copy. Or L/C.

What's your quality guarantee?

We have 100% quality guarantee to customers. We will be responsible for any quality problem.
