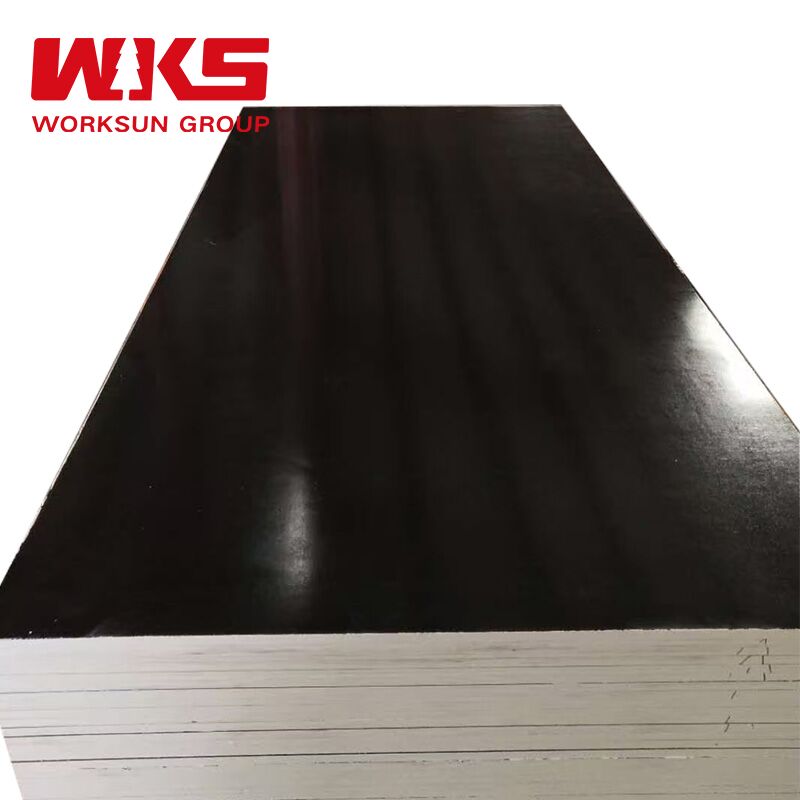

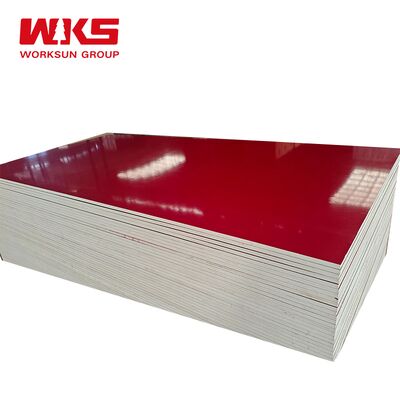

Flexible Custom Size Plywood Red / Black Concrete Form Plywood For Concrete Formwork

Quick Installation Film Faced Plywood for Concrete Formwork with Customized Color and 6-12% Moisture Content

A. Introduce

Film faced plywood is a temporary support structure made according to design requirements, which enables concrete structures and components to form in the specified position and geometric dimensions, maintain their correct position, and withstand the self weight of the film faced plywood and external loads acting on it.

Film faced plywood is made by uniformly impregnating wooden raw material veneers with melamine glue or phenolic glue, assembling the wooden raw material veneers in a staggered manner, and shaping them through cold pressing technology. Then, film faced paper is covered on both sides of the plywood and the product is formed through high-temperature hot pressing technology. Finally, the formed product is cut by an automated table saw on all four sides to make it.

Wooden veneer is generally made of poplar, pine, eucalyptus or birch wood, and is divided into first and second level wooden veneer. Film faced paper is a type of impregnated paper made by impregnating specialized paper with amino resin (mainly melamine resin) or phenolic resin, and drying it to a certain degree of solidification. Film faced paper is hot pressed with plywood to produce film faced plywood, which make the surface of the building membrane board beautiful, wear-resistant, pressure resistant, and waterproof. This greatly extends the service life of film faced plywood and makes the concrete surface smooth and flat. The color of film faced paper can be customized according to customer needs.

B. Production Advantage

• Big size:Standard size is 1220mm width and 2440mm length,The Maximum size is 1500mm width and 2500mm length, Reduced the surface joints of the poured structure, making the overall surface of the concrete more beautiful.

• Lightweight: Due to differences in wood material, product thickness, and product size, the weight range for a single product is 17kg-31kg. Lightweight products make workers more efficient in their work.

• Flexible construction: Due to the characteristics of wood, film faced plywood can be cut freely according to the structural dimensions of the construction site to meet various building structural dimensions.

• Clear water finish effect: The product can be customized to meet the high quality requirements of concrete pouring in construction projects. After the construction of high-quality film faced plywood, the concrete pouring surface can achieve a clear water finish effect without the need for secondary plastering on the concrete surface, and can even be used directly without decoration.

• High cost-effectiveness: Based on the actual needs of the construction project, we can choose film faced plywood with equivalent quality to truly achieve cost control.

• Widely used:As one of the molds for concrete pouring, film faced plywood is widely used in various construction buildings, such as high-floor apartments, commercial buildings, villas, bridges, hospitals, schools, and so on. Of course, it will also be used in warehouses (shelves), railway trucks, truck floors and sidewalls, and outdoor stage floors..

• Reusable: Due to differences in production processes, raw material quality, and product glue usage, there are certain difference in the number of times a product can be cycled. The number of times a product can be cycled is generally divided into the following situations: 2-3 times;  5-10 times;  10-15 times; 15-20 times;  20-30 times;  more than 30 times.

C. Specification&Features

D.  Application Scope

• construction industry : As one of the molds for concrete pouring, film faced plywood is widely used in various construction buildings, such as high-floor apartments, commercial buildings, villas, bridges, hospitals, schools, and so on.
• Outdoor Stage : The film paper on the surface of the Film Faced Plywood can be customized to press and stick the anti slip facial mask paper, which is used for various types of outdoor stage construction.

• Goods Shelves and box type vehicle flooring : Due to the waterproof, wear-resistant, and pressure resistant properties of Film Faced Plywood, they are also widely used in warehouses (shelves), railway freight cars, and truck floors and sidewalls.

E.Competitive Advantages

• The first batch of domestic Film Faced Plywood enterprises was established in 1993, and we have 31 years of experience in producing Film Faced Plywood so far.

• As a practitioner of kazuo inamori's business philosophy, the company adopts Amoeba management for daily operations.

• The product has participated in numerous iconic construction projects in China, such as the foundation of the Bird's Nest, China Zun, Daxing International Airport and its supporting facilities, Baihetan Hydropower Station, and most nuclear power plant projects.

• More than 70% of the core management team has an average industry experience of no less than 15 years, and their rich management and production experience ensures more stable product quality.

• Customized production of products can be carried out according to specific customer needs, ensuring that customers are satisfied with prices, services, and fully meet their various requirements.

F.  service

• Consulting services: Based on the customer's usage scenario and the intended use, we recommend the most suitable and cost-effective products to help customers save costs.

• Product supporting services: If the customer's usage scenario is in the construction of concrete pouring projects, our company has a professional team that can help customers calculate the accessories of the plywood(such as tie rod, reinforced steel pipes, plastic sleeves, etc.) that they need to use based on their pouring structure, or if the customer directly sends us a list of plywood accessories, we have a professional procurement team to provide you with more affordable accessories products.

• Product quality inspection: Each product will undergo quality inspection, and any non-conforming products will be individually picked out as scrap or used for other purposes.

• After sales service: Our sales team will be ready to solve any product problems you encounter at any time, ensuring immediate response after customer feedback.

G. FAQ

a. How to get a sample?Is the sample chargeable or free?

• Please contact us via WhatsApp, WeChat, or email and let us know your real needs. We will promptly contact you and confirm the accurate requirements before mailing you the samples.

b. Are you a trading company or a manufacturer?

• Firstly, we are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company.

• Secondly, our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 20 years.

c. How to get quotation?

• Please provide us the required list with the details of production’s quality, specifications, and quantity, and we will provide you with an accounting quotation.

d. How long is your delivery cycle?

• Under normal circumstances, the delivery cycle is around 5 days. If you require fully customized production of the product, the delivery cycle is generally around 10-15 days.

e. What is the payment method you require?

• T/T 30% deposit payment before manufacture, and 70% balanced payment against B/L Copy. Or L/C.

f. What's your quality guarantee?

• We have 100% quality guarantee to customers. We will be responsible for any quality problem.
