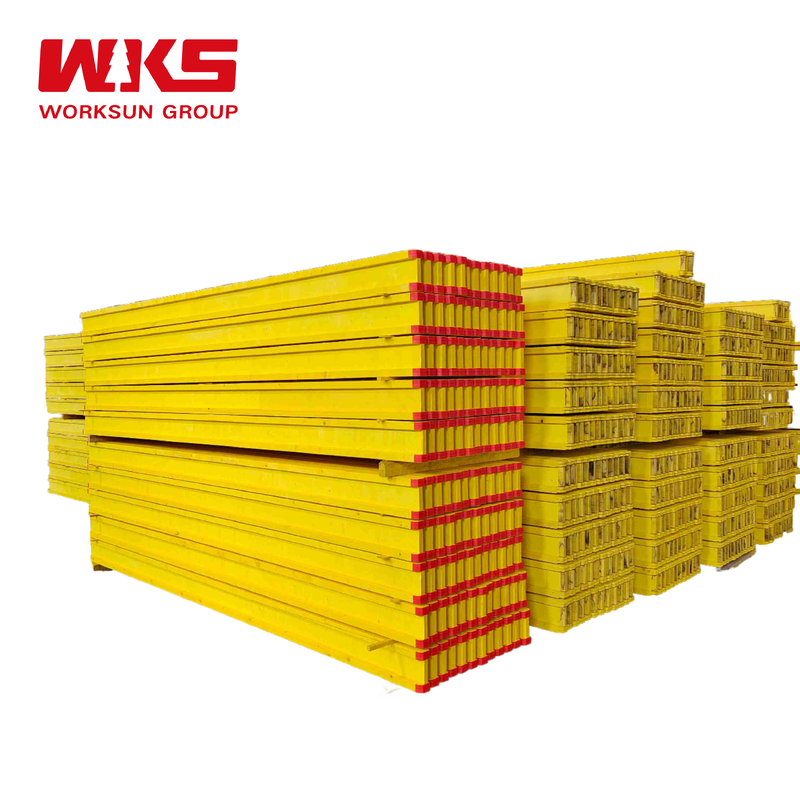

H20 Timber Beam for Concrete Wall Slab and Column Formwork Construction

H20 Timber Beam for Concrete Wall Slab and Column Formwork Construction

Brand Name:	WKS
MOQ:	50 piece
Price:	US $5.90 - 6.80/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Timber Beam Formwork

Material:

Flange :spruce/fir Wood , Web:poplar Plywood

Wood Type:

Finland Spruce/fir&plywood

Bending Bearing Moment:

11KN M

Shear Capacity (broken Loading):

24KN

Web Thickness:

27mm Or 30mm

Color:

Yellow

Width:

8cm

Height:

20cm

Length:

900mm-5900mm

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

H20 Timber Beam Formwork Construction

Timber Beam Concrete Wall Formwork

H20 Timber Beam Slab Formwork

Product Description

H20 Timber Beam for Concrete Wall Slab and Column Formwork Construction

Best Custom H20 Timber Beam - High Load Capacity, Lightweight Formwork Support

The H20 Timber Beam is a high-performance load-bearing component engineered for concrete formwork systems. Featuring double-web construction and finger-jointed solid wood flanges, it provides exceptional strength-to-weight ratio for slab, wall, column, and bridge formwork in residential, commercial, and infrastructure projects.

Key Advantages

Lightweight Design - Only 4.5-5.5 kg per meter; easy manual handling
High Load Capacity - 11-15 kN bending capacity with minimal deflection
Long Service Life - Up to 10+ years with proper care and maintenance
Double-Web Construction - Superior bending and shear resistance
Water-Resistant Glue Bond - WBP (Water & Boil Proof) for outdoor use
Easy On-Site Customization - Can be trimmed to required lengths with standard tools

Customization Capabilities

All products support project-based customization:

Length: 2.45m, 2.90m, 3.30m, 3.60m, 3.90m, 4.50m, 5.90m (custom available)
Flange material: Solid spruce or pine
Web material: 3-ply or 5-ply birch/poplar plywood
Glue grade: MR, WBP, or Phenolic resin
Moisture content controlled at ≤12%

Technical Specifications

Parameter	Specification
Beam Height	200mm (H20)
Flange Width	80mm
Web Thickness	27mm
Weight	4.5-5.5 kg/m
Load Capacity (Bending)	11-15 kN
Elastic Modulus	7500-8500 N/mm²
Moisture Content	≤12%
Glue Type	WBP (Water & Boil Proof)

Applications

Slab formwork (supporting joists and stringers), wall formwork (vertical backing beams), column formwork, bridge deck formwork, staircase and foundation formwork.
