High Strength Wood Timber Beams Anti Corrosive H20 Formwork Beams Waterproof

High Strength Wood Timber Beams Anti Corrosive H20 Formwork Beams Waterproof

Brand Name:	WKS
MOQ:	50 piece
Price:	US $5.90 - 6.80/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Wood Timber Beams

Material:

Flange :spruce/fir Wood , Web:poplar Plywood

Wood Type:

Finland Spruce/fir&plywood

Bending Bearing Moment:

11KN M

Shear Capacity (broken Loading):

24KN

Web Thickness:

27mm Or 30mm

Color:

Yellow

Width:

8cm

Height:

20cm

Length:

900mm-5900mm

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

High Strength Wood Timber Beams

Wood Timber Beams Anti Corrosive

H20 Formwork Beams Waterproof

Product Description

High Quality Timber Beam H20 for Slab Formwork Construction H20 Timber Beam System

H20 Timber Beam System - Lightweight structural components designed for formwork engineering in cast-in-place reinforced concrete structures.

Product Overview

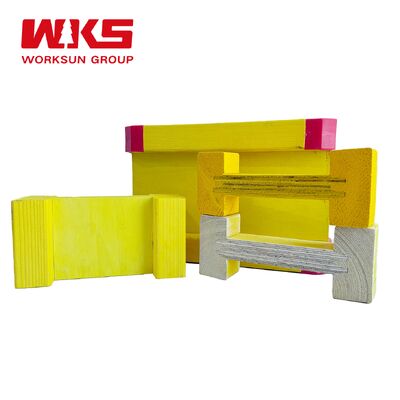

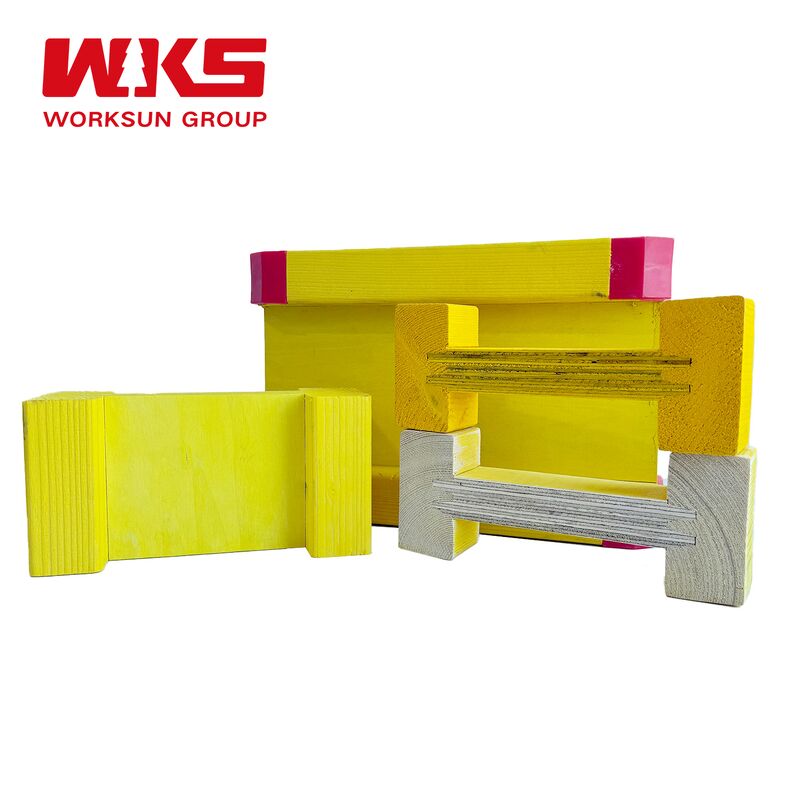

H20 Timber beams are lightweight structural components with solid wood sawn timber as flanges, multi-layer boards or solid wood sawn timber as web plates, bonded together with weather-resistant adhesives to form I-shaped sections, and coated with anti-corrosion and waterproof paint on the surface.

In formwork engineering of cast-in-place reinforced concrete structures, when used in conjunction with multi-layer slabs and vertical supports, it can form a horizontal support formwork system. When used with multi-layer boards, diagonal braces and tie bolts, it can form a vertical formwork system.

Key Advantages

High Strength & Lightweight: Made from high-quality Finnish spruce, providing excellent load-bearing capacity while being easy to handle and install
Flexibility & Easy Installation: Can be cut and adjusted to specific site requirements, with easy assembly that saves time and labor costs
Waterproof & Anti-Corrosive: Specially treated to resist water and corrosion, extending service life and protecting the beams

Technical Specifications

Product	H20 Timber Beam
Wood Type	Finland Spruce/Fir & Plywood
Color	Yellow
Width	8cm
Height	20cm
Length	900mm - 5900mm
Weight	Approximately 4.5kg - 30kg
Materials	Flange: Spruce/Fir Wood, Web: Poplar Plywood
Wood Moisture	12% ± 3% at delivery
Surface Protection	Waterproofed using water-repellent color glaze
Flange Wall	Width: 80mm, Thickness: 40mm
Web Thickness	27mm or 30mm
Shear Capacity	24KN (broken loading)
Bending Bearing Moment	11KN*M

Application Scope

Residential & commercial buildings, concrete tanks, basements, bridge abutments and piers, irregular concrete structures, and various engineering projects including buildings, water conservancy, hydropower, bridges, culverts, and high-rise structures.

Competitive Advantages

Experienced engineering team with average working experience of 10+ years
Over 20 years of production experience ensuring stable product quality
Factory located in industrial cluster area providing significant cost advantages
Full cycle project services to ensure smooth application of H20 timber beam formwork

One-Stop Solution Service Process

Free Consultation Service: Provide construction drawings for evaluation of cost-effective formwork system solutions with detailed quotation
Full Process Project Team Service: Dedicated team for professional engineering solutions, business communication, and on-site construction management
Project Emergency Plan Service: Comprehensive planning including emergency handling procedures for formwork system products

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group has two major production bases with over 20 years of production experience.

What services do you provide?

We provide professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.

Do you provide samples? Are samples chargeable?

Yes, we provide samples. Customers pay for shipping costs.

What information is needed for design and quotation?

Architectural and structural drawings of the project are required.

How to get a quotation?

For simple projects with your own engineer, provide bill of materials. For complex projects like apartments and residences, provide engineering drawings for our engineers to develop application plans and quotations.

How long for design and quotation after providing drawings?

Typically 5-8 days to complete specific plans and detailed quotations.

What is the delivery time after contract signing?

Usually 20-30 days for stocking, depending on project complexity. More accurate timelines provided during planning.

What are your payment terms?

T/T: 30% deposit before manufacture, 70% balance against B/L copy. Or L/C.
