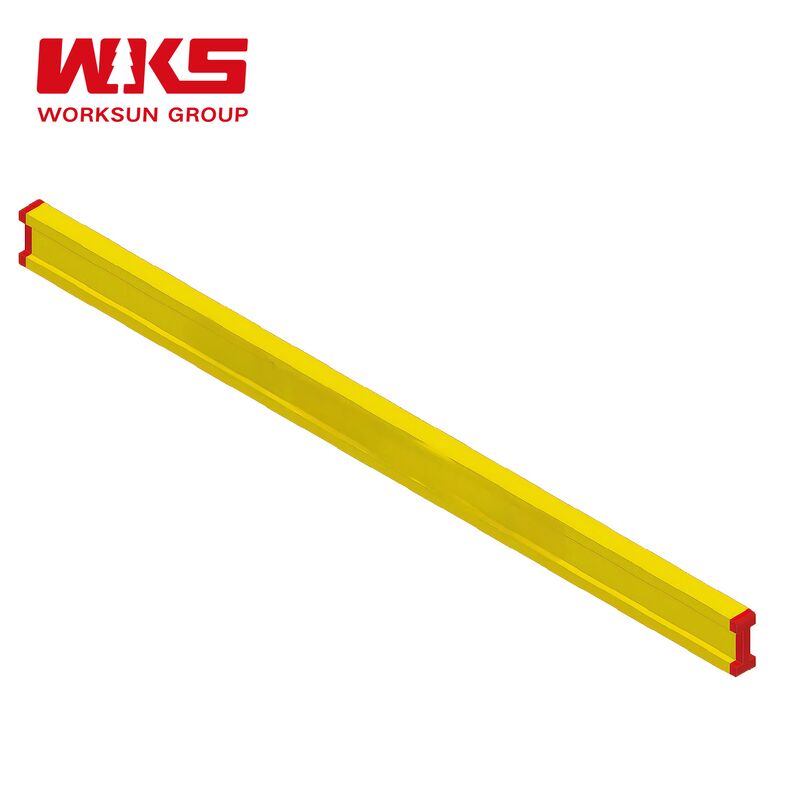

Standard H20 Wooden Beam High Strength Wood Timber Beam For Formwork 80x220mm Cross Section

Standard H20 Wooden Beam High Strength Wood Timber Beam For Formwork 80x220mm Cross Section

Brand Name:	WKS
MOQ:	50 piece
Price:	US $5.90 - 6.80/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

H20 Wooden Beam

Wood Type:

Finland Spruce/fir&plywood

Material:

Flange :spruce/fir Wood , Web:poplar Plywood

Color:

Yellow

Web Thickness:

27mm Or 30mm

Length:

900mm-5900mm

Width:

8cm

Height:

20cm

Bending Bearing Moment:

11KN M

Shear Capacity (broken Loading):

24KN

Productname:

Timber Beam Formwork

Loadcapacity:

Up To 50 KN Per Beam Depending On Size

Customizationoptions:

Available In Various Sizes And Finishes Upon Request

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Standard H20 Wooden Beam

High Strength Wood Timber Beam

Standard Wood Timber Beam

Product Description

Standard H20 Timber Beam for Formwork 80x220mm Cross Section

H20 Timber Beam Formwork is an engineered I-beam system combining solid timber flanges with a structural plywood web. Designed for high-load slab and wall shuttering, it delivers an optimal balance of strength, lightweight handling, and cost-efficiency for commercial and civil construction projects.

Features & Functions

High Strength-to-Weight Ratio: With a standard 200mm height, it offers significant load-bearing capacity while remaining light enough for manual handling, reducing crane dependency on site.
All-Weather Durability: Treated with waterproof yellow coating and sealed end caps to resist moisture, rot, and UV damage, ensuring consistent performance in harsh site conditions.
Fast Nailing & Assembly: The solid timber flanges provide excellent nail-holding power, allowing for quick attachment of plywood sheathing and easy adaptation to complex layouts.
System Flexibility: Compatible with table forms, climbing systems, and traditional slab props, serving as both primary and secondary beams in modular setups.

Key Specifications

Standard Dimension	80mm (W) x 200mm (H)
Flange Material	Solid Spruce/Pine (40mm thick)
Web Material	18-27mm Structural Plywood
Standard Lengths	1.8m - 6.0m (customizable)
Weight	Approx. 4.5 - 5.5 kg/m
Adhesive	WBP / Phenolic (Waterproof)

Technical Specifications

Product	H20 Timber Beam
Wood Type	Finland Spruce/Fir & Plywood
Color	Yellow
Width	8cm
Height	20cm
Length	900mm - 5900mm
Weight	Approximately 4.5kg - 30kg
Materials	Flange: Spruce/Fir Wood, Web: Poplar Plywood
Wood Moisture	12% ± 3% at delivery
Surface Protection	Waterproofed using water-repellent color glaze
Flange Wall	Width: 80mm, Thickness: 40mm
Web Thickness	27mm or 30mm
Shear Capacity	24KN (broken loading)
Bending Bearing Moment	11KN*M

Application Scope

Residential & commercial buildings, concrete tanks, basements, bridge abutments and piers, irregular concrete structures, and various engineering projects including buildings, water conservancy, hydropower, bridges, culverts, and high-rise structures.

Competitive Advantages

Cost-Effective Shoring: Offers a lower initial investment compared to full aluminum or steel systems, with a reuse cycle of 200+ times when properly maintained.
Job-Site Versatility: Easily cut and adapted on-site for openings and complex geometries, providing flexibility that rigid metal systems lack.
Global Standard Compliance: Interchangeable with major international formwork brands (Doka, PERI, etc.), ensuring easy integration and parts availability worldwide.
Cost-Effective Solution: Lower initial investment compared to full-metal systems, with excellent ROI for mid-rise projects.
Versatile Application: Ideal for complex layouts, curved surfaces, and bridge decks where steel beams are less adaptable.
Reduced Labor Costs: Lightweight design allows for faster, safer manual assembly, cutting down on equipment and labor expenses.
System Compatibility: Designed to work seamlessly with major international formwork systems (Doka, PERI, etc.) and standard plywood panels.
Experienced Engineering Team: Average working experience of 10+ years ensuring professional solutions.
Production Excellence: Over 20 years of production experience ensuring stable product quality.

One-Stop Solution Service Process

Free Consultation Service: Provide construction drawings for evaluation of cost-effective formwork system solutions with detailed quotation.
Full Process Project Team Service: Dedicated team for professional engineering solutions, business communication, and on-site construction management.
Project Emergency Plan Service: Comprehensive planning including emergency handling procedures for formwork system products.

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group has two major production bases with over 20 years of production experience.

What services do you provide?
We provide professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.

Do you provide samples? Are samples chargeable?
Yes, we provide samples. Customers pay for shipping costs.

What information is needed for design and quotation?
Architectural and structural drawings of the project are required.

How to get a quotation?
For simple projects with your own engineer, provide bill of materials. For complex projects like apartments and residences, provide engineering drawings for our engineers to develop application plans and quotations.

How long for design and quotation after providing drawings?
Typically 5-8 days to complete specific plans and detailed quotations.

What is the delivery time after contract signing?
Usually 20-30 days for stocking, depending on project complexity. More accurate timelines provided during planning.

What are your payment terms?
T/T: 30% deposit before manufacture, 70% balance against B/L copy. Or L/C.
