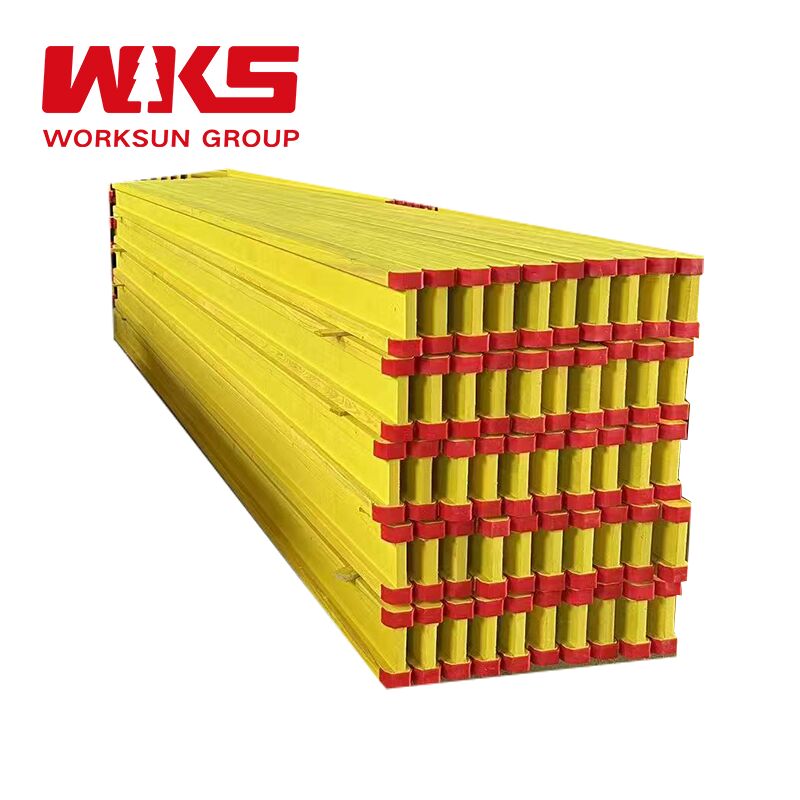

H20 Timber Beam Formwork I Section Beam Formwork Lightweight For Fast Assembly

The H20 Timber Beam is an engineered wood I-beam designed as the primary support structure for heavy-duty slab, wall, and bridge formwork. It combines solid timber flanges with a multi-layer plywood web to deliver high load capacity with significantly lighter weight than steel, making it ideal for projects requiring manual handling and fast setup.

• High Strength-to-Weight Ratio: Weighing only ~5 kg/m, it is light enough for two workers to handle easily, reducing crane dependency and speeding up assembly on site.
• Engineered I-Beam Design: The optimized profile (200mm height) provides excellent bending resistance and stiffness, minimizing deflection under heavy wet concrete loads for a flat soffit finish.
• Nail-Holding & Adaptability: The solid timber flanges allow nailing anywhere along the beam, enabling flexible attachment of plywood sheathing and easy integration with various secondary beam layouts.
• All-Weather Durability: Treated with waterproof yellow paint and sealed end-caps, the beam resists moisture absorption and warping, ensuring dimensional stability across multiple reuses.

• Standard Size: 200mm (H) x 80mm (W)
• Flange: 40mm Solid Timber (Spruce/Pine)
• Web: 27-30mm Multi-layer Plywood
• Standard Lengths: 1.8m - 6.0m (customizable)
• Max Bending Moment: ~5 kNm
• Typical Reuse: 20-30 cycles (with proper care)

Residential & commercial buildings, concrete tanks, basements, bridge abutments and piers, irregular concrete structures, and various engineering projects including buildings, water conservancy, hydropower, bridges, culverts, and high-rise structures.

• Lowest Initial Investment: Offers the most economical entry point for contractors needing a reliable, high-capacity formwork system without the high cost of metal alternatives.
• Eco-Friendly & Sustainable: Made from renewable timber resources with a lower carbon footprint than steel or aluminum, appealing to green building standards.
• Proven Global Standard: The H20 specification is universally recognized, ensuring easy integration, spare part availability, and reliable performance on job sites worldwide.
• Experienced engineering team with average working experience of 10+ years
• Over 20 years of production experience ensuring stable product quality
• Factory located in industrial cluster area providing significant cost advantages
• Full cycle project services to ensure smooth application of H20 timber beam formwork

• Free Consultation Service: Provide construction drawings for evaluation of cost-effective formwork system solutions with detailed quotation
• Full Process Project Team Service: Dedicated team for professional engineering solutions, business communication, and on-site construction management
• Project Emergency Plan Service: Comprehensive planning including emergency handling procedures for formwork system products

• Are you a trading company or a manufacturer?
  We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group has two major production bases with over 20 years of production experience.
• What services do you provide?
  We provide professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.
• Do you provide samples? Are samples chargeable?
  Yes, we provide samples. Customers pay for shipping costs.
• What information is needed for design and quotation?
  Architectural and structural drawings of the project are required.
• How to get a quotation?
  For simple projects with your own engineer, provide bill of materials. For complex projects like apartments and residences, provide engineering drawings for our engineers to develop application plans and quotations.
• How long for design and quotation after providing drawings?
  Typically 5-8 days to complete specific plans and detailed quotations.
• What is the delivery time after contract signing?
  Usually 20-30 days for stocking, depending on project complexity. More accurate timelines provided during planning.
• What are your payment terms?
  T/T: 30% deposit before manufacture, 70% balance against B/L copy. Or L/C.
