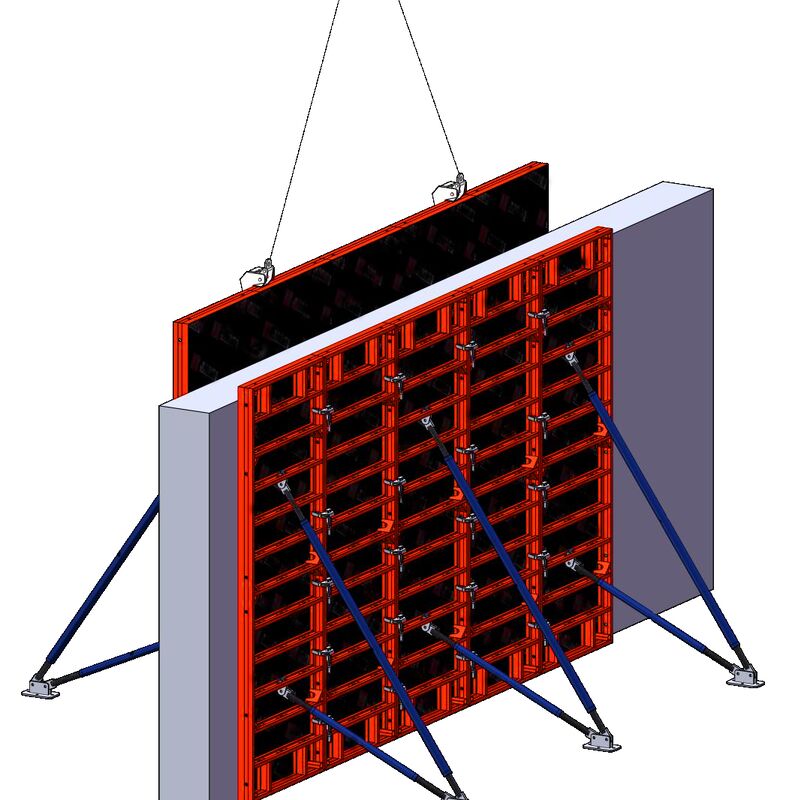

Galvanized Steel Frame with Aluminum Formwork for Construction Project

Galvanized Steel Frame with Aluminum Formwork for Construction Project

Brand Name:	WKS
MOQ:	50 piece
Price:	US $97.00 - 130.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Aluminum Frame Formwork

Material:

Aluminum

Coating Of Aluminum Frame:

Powder Coating

Maximum Concrete Pressure:

60kN/sqm

Max Size Of Slab:

Plywood Panel Material 1800mm*2400mm

Max Size Of Wall&Column:

1000mm*3000mm

Aluminum Frame Height:

100mm/120mm

Aluminum Frame Material:

6061-T6

Plywood Panel Material:

Birch,poplar,eucalyptus,mixed Or Plastic Plywood

Plywood Panel Thickness:

12mm/15mm/18mm

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Galvanized Steel Frame Aluminum Formwork

Steel Frame Aluminum Formwork System

Construction Project Aluminum Formwork

Product Description

Galvanized Steel Frame with Aluminum Formwork for Construction Project

Best Custom Aluminum Frame Formwork

Lightweight, 100+ Frame Reuses & Cost-Effective for Building Projects

Product Overview

The Aluminum Frame Formwork combines lightweight aluminum frames with high-strength plywood panels, delivering an ideal balance of durability, handling ease, and cost efficiency. Perfect for residential and commercial construction, this system allows one-person handling without cranes, significantly reducing labor costs and construction time.

Key Advantages

Ultra-Lightweight Frames - 8-12 kg per linear meter; one-person handling, no crane required

100-150+ Frame Reuses - Long service life; plywood inserts easily replaceable

30-40% Lower Cost - Compared to full aluminum panel systems

Flexible Panel Options - Accepts 18mm film faced plywood, ABS, or composite panels

Fast Assembly - Pin-and-wedge connection system; no specialized tools needed

Corrosion Resistant - Aluminum frames will not rust, suitable for humid environments

Customization Capabilities

All products support project-based customization:

Panel sizes: 600×1200mm, 600×1500mm, 750×1500mm (custom available)
Plywood thickness and grade options
Surface finish: Powder coated or anodized
Full accessory sets: pins, wedges, ties, props
Drophead early stripping mechanism available

Technical Specifications

Parameter	Specification
Frame Material	Aluminum Alloy 6063-T5 / 6061-T6
Panel Material	18mm Film Faced Plywood / ABS / Composite
Standard Sizes	600×1200mm, 600×1500mm, 750×1500mm
Frame Weight	8-12 kg/m (10-15 kg per panel)
Frame Reuse Cycles	100-150+ times
Load Capacity	50-70 kN/m²
Connection Type	Pin & wedge / Bolt system
Surface Finish	Powder coated / Anodized
