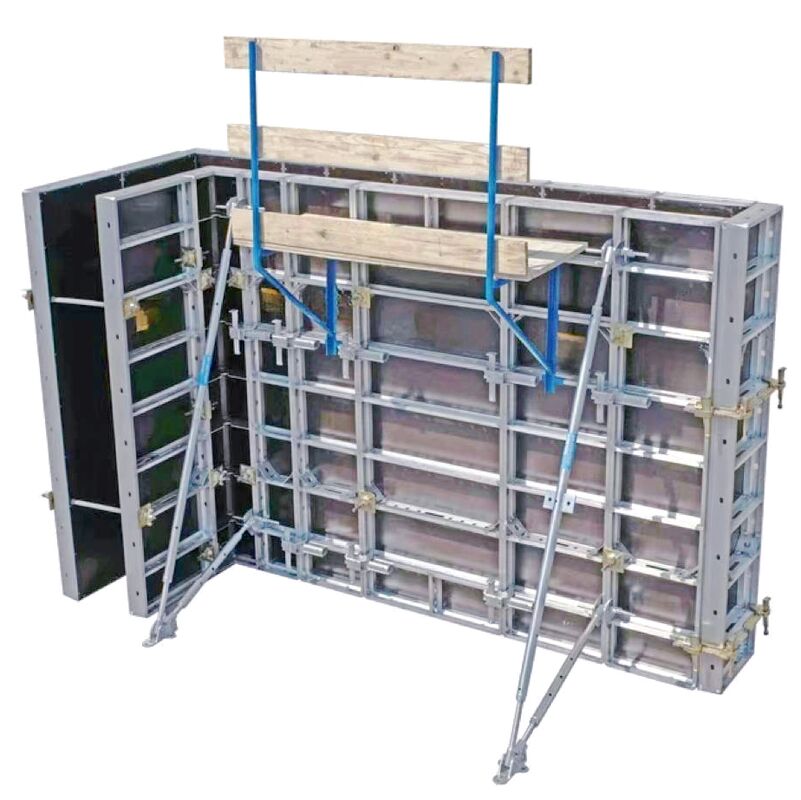

Reusable Aluminum Frame Formwork 400x2400mm Aluminium Formwork Construction For High Rise Building

Aluminum Frame Formwork is a lightweight, high-strength modular system designed for fast-cycle concrete construction. Combining durable aluminum alloy frames with high-density panels, it is the preferred solution for residential high-rises, commercial buildings, and projects requiring rapid floor turnover and superior concrete finishes.

• Lightweight & Fast Assembly: Weighing only ~25 kg/m² (about 1/3 the weight of steel), it enables easy manual handling and faster installation, reducing reliance on heavy cranes and cutting labor costs.
• High-Precision Concrete Finish: CNC-machined frames and tight-tolerance panels produce smooth, flat concrete surfaces that often eliminate the need for post-construction plastering.
• Quick-Strip System: Engineered for early striking, the system supports fast demolding and reassembly, enabling construction cycles as short as 4-5 days per floor.
• Corrosion Resistant: Naturally resistant to rust and chemical attack from concrete, ensuring long-term durability and consistent performance with minimal maintenance.

• Frame Material: 6061-T6 / 6063-T6 Aluminum Alloy
• Panel Core: 15mm / 18mm Film Faced Plywood or Composite
• Standard Sizes: 600x2400mm, 900x2400mm, 1200x2400mm (Modular)
• Max Concrete Pressure: 50-70 kN/m²
• Average Weight: 23-28 kg/m²
• Reuse Cycles: 200+ times (Frames), 30-50 times (Panels)

• Optimal Lifecycle ROI: Offers the best balance of initial cost, high reusability (frames last for hundreds of cycles), and low operational expense, outperforming both steel and wood in repetitive projects.
• Labor & Time Savings: The lightweight design and pin-and-wedge connection system significantly reduce erection and stripping time compared to traditional formwork.
• Zero Waste & High Scrap Value: Aluminum frames are 100% recyclable at end-of-life, providing substantial residual value and supporting sustainable construction practices.
• Advanced production equipment and 20 years of production experience
• Team of engineers with an average of about 10 years of experience ensures smooth project progress
• Full cycle project services to ensure smooth application of aluminum frame formwork

• Free Consultation Service: You provide us with construction drawings to evaluate which formwork system solution is more cost-effective and provide a detailed quotation list for you.
• Full Process One-on-One Project Team Service: Each project will have an independent team to provide you with professional engineering solution services, business communication services, and on-site construction management services.
• Project Emergency Plan Service: The project scheme formulation process will cautiously consider the emergency handling of aluminum alloy formwork system products during use.
