Hot Dip Galvanized Custom Steel Frame Formwork For Long Service Life Project

Hot Dip Galvanized Custom Steel Frame Formwork For Long Service Life Project

Brand Name:	WKS
MOQ:	50 piece
Price:	US $90.00 - 110.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Steel Frame Formwork

Material:

Steel Frame: Q235

Colour:

Green, Blue, Orange, Yellow Or Customized

Type:

Wall Form

Thickness Of Front Panel:

12mm,15mm

Column Bearing Capacity:

80KN/sqm

Wall Bearing Capacity:

60KN/sqm

Width:

300-2400mm

Height:

600mm,1200mm,1500mm,2400mm,2700mm,3300mm Or Customized

Feature:

Reusable, High Strength, Adjustable Size

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Hot Dip Galvanized Steel Formwork

Custom Steel Frame Formwork System

Long Service Life Steel Formwork

Product Description

Hot Dip Galvanized Steel Frame Formwork for Long Service Life Project

Best Custom Steel Frame Formwork - Modular, Reusable & High-Strength for Wall/Column/Slab Construction

Product Overview

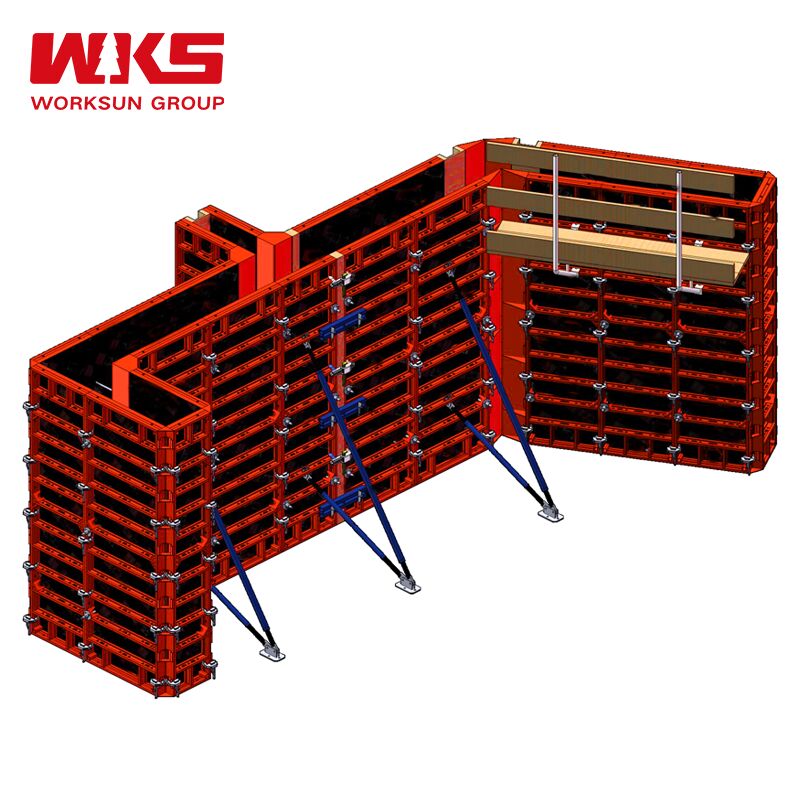

The Steel Frame Formwork is a pre-engineered modular concrete forming system featuring high-strength steel frames combined with 12mm plywood panels. As one of the most widely adopted formwork systems globally, it offers exceptional versatility for walls, columns, slabs, and beams - ideal for residential, commercial, and infrastructure projects.

Key Advantages

Modular Design - Over 80 panel sizes available; flexible assembly for almost any structure shape

High Load Capacity - Wall formwork withstands 60 kN/m²; column formwork up to 80 kN/m²

150-200+ Frame Reuses - Steel frame long lifespan; plywood easily replaceable

Tool-Free Assembly - Only a hammer required; no measuring, sawing, or nailing

Handset or Gang Forming - Suitable for both manual setup and large prefabricated gangs

Versatile Applications - Straight or radius walls; compatible with other industry standard systems

Customization Capabilities

All products support project-based customization:

Panel sizes: 600×1200mm to 3000×1200mm (custom available)
Frame thickness and steel grade options
Surface finish: Painted, powder coated, or galvanized
Corner, filler, and special profile components
Full accessory sets: ties, wedges, clamps, walers

Technical Specifications

Parameter	Specification
Frame Material	Q235 / Q355 Steel
Panel Material	12mm Film Faced Plywood
Standard Sizes	600×1200mm to 3000×1200mm
Frame Reuse Cycles	150-200+ times
Wall Load Capacity	60 kN/m²
Column Load Capacity	80 kN/m²
Connection Type	Pin & wedge / bolts
Surface Finish	Painted / Powder coated / Galvanized

Applications

Building walls and shear walls, concrete columns and piers, floor slabs and beams, bridge abutments and culverts, bulkhead and haunch forming.

Lead Time & Pricing

Standard orders: 15-25 days
Custom projects: 25-40 days (depending on drawings)
Factory direct - competitive pricing

Click 【Send Inquiry】 for custom solution & quotation
