12mm 15mm Thickness Steel Frame Formwork Heavy Duty Wall Formwork System For Monolithic Concrete Casting

12mm 15mm Thickness Steel Frame Formwork Heavy Duty Wall Formwork System For Monolithic Concrete Casting

Brand Name:	WKS
MOQ:	50 piece
Price:	US $90.00 - 110.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Steel Frame Formwork

Material:

Steel Frame: Q235

Colour:

Green, Blue, Orange, Yellow Or Customized

Type:

Wall Form

Thickness Of Front Panel:

12mm,15mm

Column Bearing Capacity:

80KN/sqm

Wall Bearing Capacity:

60KN/sqm

Width:

300-2400mm

Height:

600mm,1200mm,1500mm,2400mm,2700mm,3300mm Or Customized

Feature:

Reusable, High Strength, Adjustable Size

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

12mm Steel Frame Formwork

15mm Steel Frame Formwork

Heavy Duty Wall Formwork System

Product Description

Steel Frame Wall Formwork System for Monolithic Concrete Casting

Product Overview

Steel Frame Formwork is a heavy-duty modular system engineered for high-rise buildings, bridges, and large-scale civil engineering projects. It combines a robust hot-dip galvanized steel frame with high-strength plywood panels, offering superior load-bearing capacity and precision for demanding concrete pours.

Features & Functions

High Load Capacity: Designed to withstand extreme fresh concrete pressures up to 60-80 kN/m², ensuring minimal deflection and perfect structural alignment for walls, columns, and slabs.
Rapid Clamp Connection: Features quick-lock clamps and self-aligning systems that enable fast assembly and dismantling without complex bolting, significantly reducing on-site labor time.
Modular Flexibility: A wide range of standard panel sizes (e.g., 0.6x2.4m, 1.2x2.4m) allows for versatile configuration to fit various project layouts, including curved walls and complex structures.
Durable & Low Maintenance: The hot-dip galvanized steel frame provides excellent corrosion resistance, while the replaceable plywood panels ensure a long service life with minimal upkeep.

Key Specifications

Frame Material: Q235/Q355 Steel, Hot-Dip Galvanized
Panel Core: 18mm/21mm Birch or Poplar Film Faced Plywood
Standard Sizes: 600x2400mm, 900x2400mm, 1200x2400mm (Customizable)
Max Concrete Pressure: 60-80 kN/m²
System Weight: ~45-65 kg/m²

Competitive Advantages

Superior ROI: The steel frame offers thousands of reuse cycles with only the plywood needing occasional replacement, delivering the lowest lifetime cost compared to plastic or aluminum systems.
Industrial-Grade Reliability: The preferred solution for contractors requiring absolute structural integrity in high-pressure pouring scenarios and critical infrastructure projects.
Efficiency & Safety: Modular design allows for crane-handled large-area forming, reducing manual handling and improving jobsite safety.

Technical Specifications

Materials	Steel Frame: Q235, Q345 Panel: Poplar/Birch/Hardwood with domestic or imported film faced paper
Thickness of Front Panel	12mm, 15mm
Color Options	Green, blue, orange, yellow or customized
Surface Treatment	Hot Dip Galvanized (HDG); cold galvanized; powder coated; dip painted
Column Bearing Capacity	80KN/sqm
Wall Bearing Capacity	60KN/sqm
Height Options	600mm, 1200mm, 1500mm, 2400mm, 2700mm, 3300mm or customized
Width Range	300-2400mm
Weight Range	Approximately 20KG-350KG

Application Scope

Suitable for residential and commercial buildings, concrete tanks, basements, bridge abutments and piers, and irregular concrete structures.

Professional Services

Customized Production Services

Our team assists with customized product configurations based on your project's architectural and structural drawings. Professional engineers and consultants provide detailed application solutions to ensure smooth implementation.

Responsive Technical Support

Professional engineers are available throughout pre-sales, during implementation, and post-sales to promptly address and meet your requirements. Our engineering team provides reasonable suggestions for your application plans.

Comprehensive After-Sales Service

Dedicated one-on-one service teams help complete engineering project implementation. Independent service teams for each project ensure perfect product-demand matching and efficient on-site construction.

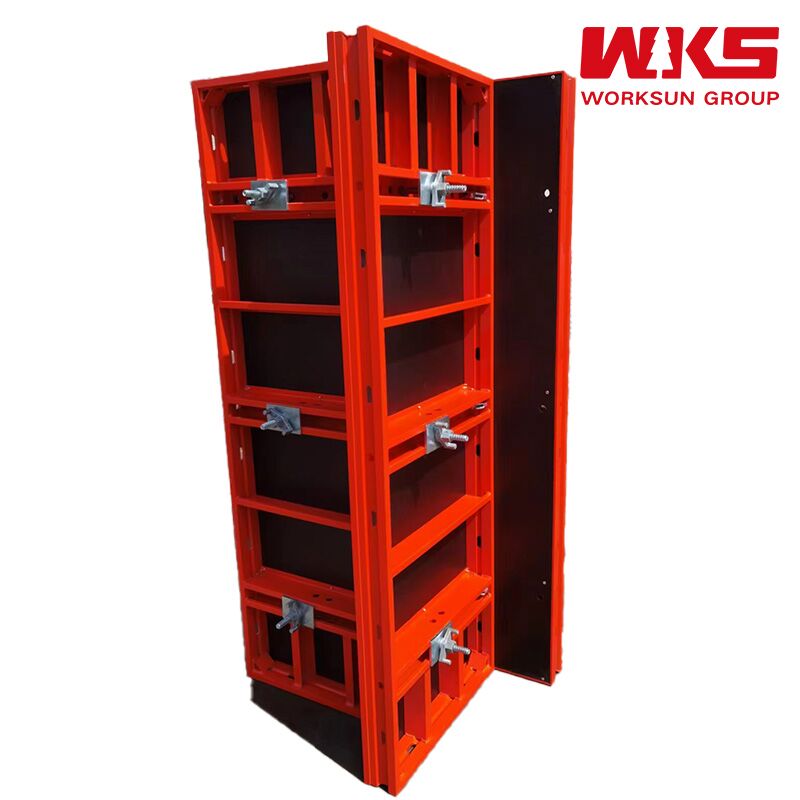

Product Images

Frequently Asked Questions

Do you provide samples? Is the sample chargeable or free?

Yes, we provide small size samples. Larger samples may require payment, and shipping costs are typically the customer's responsibility.

Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group operates two major production bases with over 20 years of specialized manufacturing experience.

How to get quotation?

For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects like apartments and villas, our consultants will develop application plans based on your architectural and structural drawings.

What can we supply for you?

We offer a comprehensive range of scaffolding, formwork accessories, and safety products for construction industries. We also design and produce custom steel items according to client specifications.

How can you guarantee better service and high quality products?

Advanced automated production lines, experienced workers, quality inspection teams, and chemical/physical laboratories ensure high quality. Our engineering team provides technical support, and sales teams offer responsive communication through various platforms.

How long is the estimated delivery time after the contract is signed?

Typically 30-60 days for completion, depending on project complexity. More accurate delivery timelines are provided during the planning and quotation process.

What is your terms of payment?

T/T with 30% deposit before manufacture and 70% balance payment against B/L copy, or L/C arrangements.
