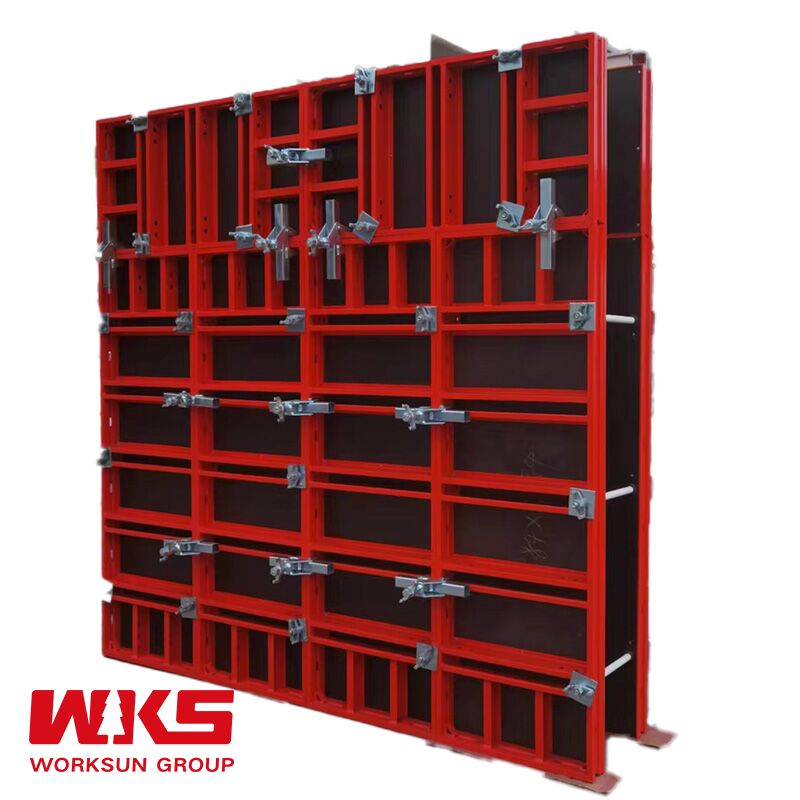

Industrial Grade Steel Frame Formwork 12mm 15mm Thickness Metal Slab Formwork

Steel Frame Formwork is a heavy-duty modular system designed for high-rise buildings, bridges, and large-scale civil projects. It combines a rigid hot-dip galvanized steel frame with replaceable panels (plywood or composite) to deliver unmatched strength and precision for high-pressure concrete pouring.

• High Load-Bearing Capacity: The steel frame provides exceptional stiffness, resisting deformation under extreme concrete pressure (up to 80-100 kN/m²), ensuring perfect alignment and flat surfaces.
• Fast Clamp Connection: Utilizes quick-lock clamps instead of complex bolts, enabling rapid assembly and disassembly without specialized tools, significantly cutting labor time.
• Panel Replaceability: The "frame-and-panel" design allows for easy replacement of worn panels while retaining the durable steel frame, drastically reducing long-term maintenance costs.
• Minimal Backing System: The integral frame acts as its own strongback, often eliminating the need for extensive external walers, simplifying the setup.

• Frame Material: Q235/Q355 Steel, Hot-Dip Galvanized
• Panel Options: 18-21mm Film Faced Plywood or Composite
• Standard Panel Size: 0.6x2.4m, 0.9x2.4m, 1.2x2.4m (Modular Grid)
• Max Concrete Pressure: 80-100 kN/m²
• System Weight: ~45-65 kg/m²

• Lowest Lifetime Cost: The galvanized steel frame lasts for thousands of cycles, and only the inexpensive panels need occasional replacement, offering superior ROI over plastic or aluminum systems.
• Engineered for Speed: The modular, crane-handled system is designed for repetitive, fast-cycle construction, reducing on-site labor by up to 40% compared to traditional methods.
• Industrial-Grade Reliability: The go-to solution for contractors needing absolute structural integrity for tall walls, heavy columns, and critical infrastructure projects.

Suitable for residential and commercial buildings, concrete tanks, basements, bridge abutments and piers, and irregular concrete structures.

Our team assists with customized product configurations based on your project's architectural and structural drawings. Professional engineers and consultants provide detailed application solutions to ensure smooth implementation.

Professional engineers are available throughout pre-sales, during implementation, and post-sales to promptly address and meet your requirements. Our engineering team provides reasonable suggestions for your application plans.

Dedicated one-on-one service teams help complete engineering project implementation. Independent service teams for each project ensure perfect product-demand matching and efficient on-site construction.
