| Brand Name: | WKS |
| MOQ: | 200/Piece |
| Price: | US $9.00 - 11.50/ Piece |
| Payment Terms: | T/T |
| Supply Ability: | 1000 piece in 10 days |

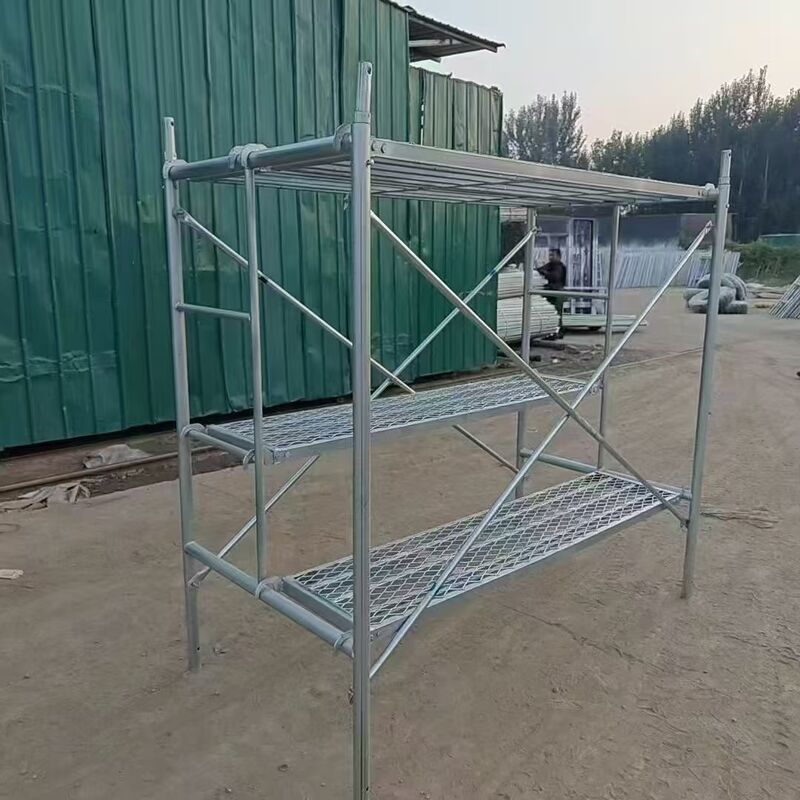

Frame Scaffolding is a pre-fabricated, modular access system widely used in building construction, maintenance, and renovation. It consists of welded steel frames connected by cross braces and horizontal ledgers, forming a rigid, rectangular grid structure that provides safe and stable working platforms for personnel and materials.
Our Frame Scaffolding offers superior cost efficiency for standard construction projects due to its low initial investment, minimal maintenance, and ease of use. Compared to more complex systems, it provides faster deployment for straightforward applications, reducing project timelines. We ensure full compliance with safety regulations and provide comprehensive on-site support, helping contractors achieve reliable access solutions with optimal budget control.
Main Tube Size: OD42x2.0mm | Other Tube Size: OD25x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized
| Item No. | Picture | Product Name | Description | Weight (kgs) |
|---|---|---|---|---|
| SCA63 | |
Door Frame | Walk Thru Frame Width 914mm, Height 1524mm | 10.81 |
| SCA64 | Walk Thru Frame Width 914mm, Height 1700mm | 12.05 | ||
| SCA65 | Walk Thru Frame Width 1219mm, Height 1524mm | 11.68 | ||
| SCA66 | Walk Thru Frame Width 1219mm, Height 1700mm | 12.91 | ||
| SCA67 | Walk Thru Frame Width 1219mm, Height 1930mm | 14.37 |
Main Tube Size: OD42x2.0mm | Other Tube Size: OD25x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized
| Item No. | Picture | Product Name | Description | Weight (kgs) |
|---|---|---|---|---|
| SCA68 | |
Ladder Frame | H Frame Width 914mm, Height 1524mm | 7.96 |
| SCA69 | H Frame Width 914mm, Height 1700mm | 11.43 | ||
| SCA70 | H Frame Width 1219mm, Height 1524mm | 9.16 | ||
| SCA71 | H Frame Width 1219mm, Height 1700mm | 12.76 | ||
| SCA72 | H Frame Width 1219mm, Height 1930mm | 14.24 |
Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized
| Item No. | Picture | Product Name | Description | Weight (kgs) |
|---|---|---|---|---|
| SCA73 | |
American-style door frame | American Style Walk Thru Frame Width 914mm, Height 1524mm | 14.8 |
| SCA74 | American Style Walk Thru Frame Width 914mm, Height 1930mm | 17.5 | ||
| SCA75 | American Style Walk Thru Frame Width 1524mm, Height 1930mm | 18.9 |
Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized
| Item No. | Picture | Product Name | Description | Weight (kgs) |
|---|---|---|---|---|
| SCA7 | |
Ladder Frame | Mason Frame Width 1524mm, Height 914mm | 14.4 |
| SCA77 | Mason Frame Width 1524mm, Height 1219mm | 16.1 | ||
| SCA78 | Mason Frame Width 1524mm, Height 1524mm | 17.9 | ||
| SCA79 | Mason Frame Width 1524mm, Height 1930mm | 20.2 | ||
| SCA80 | Mason Frame Width 1524mm, Height 2007mm | 21.8 |
Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized
| Item No. | Picture | Product Name | Description | Weight (kgs) |
|---|---|---|---|---|
| SCA81 | |
Four-bar frame | Narrow Frame Width 610mm, Height 1524mm | 10.6 |
| SCA82 | Narrow Frame Width 610mm, Height 1930mm | 12.5 | ||
| SCA83 | Narrow Frame Width 914mm, Height 1930mm | 18.1 | ||
| SCA84 | Narrow Frame Width 1219mm, Height 1930mm | 19.9 |
Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x2.0mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized
| Item No. | Picture | Product Name | Description | Weight (kgs) |
|---|---|---|---|---|
| SCA85 | |
Italian-style door frame | Italian Style Frame Width 1050mm, Height 2000mm | 11.6 |
Designed to provide a level base for the scaffolding platform | Steel Grade: Q235 | Surface treatment: Hot-dip Galvanized
| Item No. | Picture | Description | Diameter (mm) | Length (mm) | Plate Size (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|
| SCA86 | |
Solid BaseJack | φ30 (solid) | 600 | 120x120x4 | 3.58 |
| SCA87 | Solid BaseJack | φ32 (solid) | 300 | 120x120x6 | 2.72 | |
| SCA88 | Hollow Base Jack | φ38 (hollow) | 400 | 150x150x6 | 3.19 | |
| SCA89 | Hollow Base Jack | φ48 (hollow) | 600 | 150x150x5 | 4.33 |
Used as the base which holds the standard of the scaffold adjusting the height and making the scaffolding more stable | Steel Grade: Q235 | Surface treatment: Hot-dip galvanized
| Item No. | Picture | Description | Diameter (mm) | Length (mm) | Plate Size (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|
| SCA90 | |
Solid U Head Jack | φ30 (solid) | 600 | 150x150x50x4 | 4.32 |
| SCA91 | Solid UHead Jack | φ34 (solid) | 500 | 140x210x75x6 | 6.2 | |
| SCA92 | Hollow U HeadJack | φ38 (hollow) | 600 | 150x150x50x6 | 4.29 | |
| CA93 | Hollow U HeadJack | φ48 (hollow) | 600 | 150x150x50x6 | 5.23 |
Steel Grade: Q195, Q235 | Surface treatment: Pre-galvanized | Other sizes are available on request
| Item No. | Picture | Description | Width (mm) | Height (mm) | Length (mm) |
|---|---|---|---|---|---|
| SCA94 | |
Frame Scaffolding Plank 210*1829mm | 210 | 1.2 | 1829 |
| SCA95 | Frame Scaffolding Plank 210*1829mm | 210 | 1.5 | 1829 | |
| SCA96 | Frame Scaffolding Plank 240*1829mm | 240 | 1.2 | 1829 | |
| SCA97 | Frame Scaffolding Plank 240*1829mm | 240 | 1.5 | 1829 | |
| SCA98 | Frame Scaffolding Plank 420*1829mm | 420 | 1.2 | 1829 | |
| SCA99 | Frame Scaffolding Plank 420*1829mm | 420 | 1.5 | 1829 | |
| SCA1O0 | Frame Scaffolding Plank 500*1829mm | 500 | 1.2 | 1829 | |
| SCA101 | Frame Scaffolding Plank 500*1829mm | 500 | 1.5 | 1829 |
For Connecting the Scaffoldings | Steel Grade: Q235, Q345 | Surface treatment: Hot-dip Galvanized | Other sizes are available on request
| Item No. | Picture | Description | Diameter (mm) | Thickness (mm) | Length (mm) |
|---|---|---|---|---|---|
| SCA102 | |
Frame Joint Pin | 35/36 | 1.5/1.6 | 225/220/210 |
Also called X braces - components of all Frame Scaffolding System | Steel Grade: Q195, Q235 | Surface treatment: Galvanized | Other sizes are available on request
| Item No. | Picture | Description | Width (mm) | Height (mm) | Length (mm) |
|---|---|---|---|---|---|
| SCA103 | |
Frame Scaffolding cross Brace | 1829 | 1219 | 2198 |
| SCA104 | 1219 | 1219 | 1724 | ||
| SCA105 | 1829 | 914 | 2045 | ||
| SCA106 | 1829 | 610 | 1928 | ||
| SCA107 | 1219 | 610 | 1363 |
Used at bottom of scaffolding vertical tube, enabling the scaffolding system to be a mobile Platform
| Item No. | Picture | Product Name | Description |
|---|---|---|---|
| SCA108 | |
caster | 12" Caster wheel |
| SCA109 | caster | 16" Caster Wheel |
We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in the production and processing of formwork and scaffolding products for over 20 years.
For simple concrete pouring projects with your own engineer, provide us with a bill of materials for quotation. For complex projects like apartments and residences, our professional consultants will develop an application plan based on your engineering architectural and structural drawings.
Generally, it takes about 5-8 days to complete the specific plan and detailed quotation after receiving your engineering drawings.
Yes, we can provide samples. You will need to pay for the shipping cost.
According to project complexity, it usually takes 30-60 days to complete stocking. More accurate delivery time will be estimated during the planning and quotation process.
In long-term high temperature environments, concrete pouring projects may cause slight deformation of the formwork. We recommend using all aluminum alloy formwork or steel frame wood formwork system in high temperature areas.
The load force is too small for large-sized concrete structures, and poor high temperature resistance may cause slight deformation in high-temperature areas.
- Payment ≤ 1,000 USD: 100% in advance
- Payment ≥ 10,000 USD: 30% T/T in advance, balance before shipment
- Or L/C
