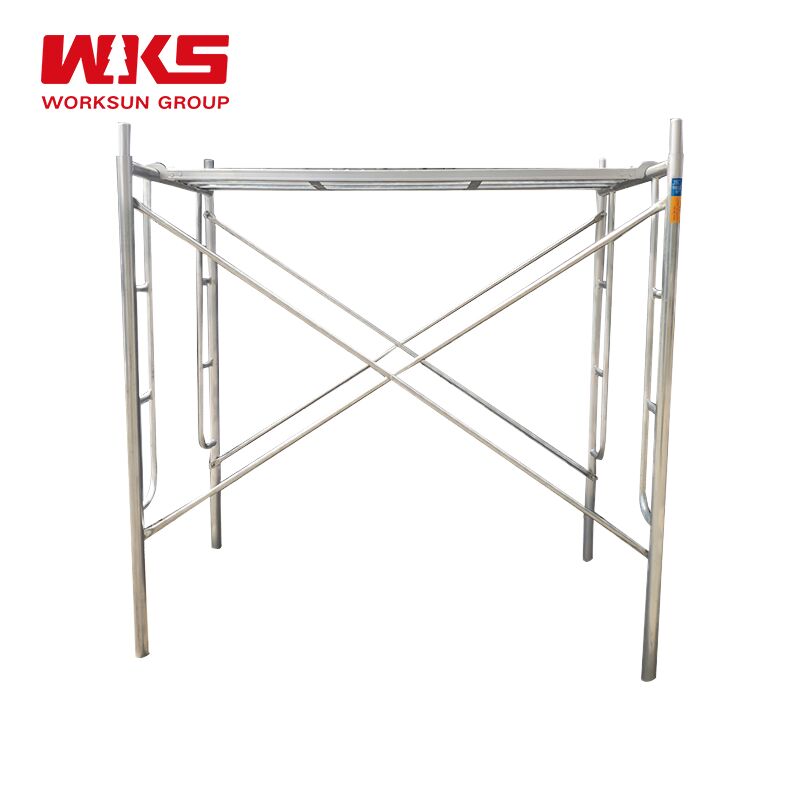

Standardized Frame Scaffolding System Industrial Galvanized Scaffolding

Standardized Frame Scaffolding System Industrial Galvanized Scaffolding

Brand Name:	WKS
MOQ:	200/Piece
Price:	US $9.00 - 11.50/ Piece
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Frame Scaffolding System

Material:

Steel

Surface Treatment:

Galvanization

Colour:

Customized Colour

Design Style:

Handy

Usage:

Buidling Constrcution

Size:

Standard Size

Advantage:

Stable

Keyword:

Scffolding

Packing:

Bundle

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Standardized Frame Scaffolding System

Industrial Galvanized Scaffolding

Standardized Galvanized Scaffolding

Product Description

Heavy Duty Frame Scaffolding System for Industrial Plant Maintenance Frame Scaffolding

Frame Scaffolding System

Product Introduction

Frame Scaffolding, also known as "Modular Scaffolding" or "Frame and Brace Scaffolding," is a modular temporary work platform and support system composed of standardized metal frames, cross braces, ledgers, decking, and other components. It is assembled rapidly through simple pin or lock mechanisms and is one of the most commonly used temporary work and support structures in construction, renovation, maintenance, and industrial applications.

Primary Uses and Applications

The primary function of frame scaffolding is to provide a safe and stable temporary work platform in various scenarios:

Building Construction: Exterior work for bricklaying, plastering, tiling, painting, and interior finishing for ceiling installation and utility work
Maintenance and Repair Work: Building maintenance and industrial maintenance in factories, workshops, ships, and storage tanks
Event and Exhibition Setup: Temporary stages for concerts, exhibition stands, and viewing platforms
Bridge and Infrastructure Work: Work and inspection platforms for bridge undersides and piers

Basic Setup Components

Frames: Vertical, load-bearing main units
Cross Braces (X-braces): Connect frames diagonally for lateral stability
Ledgers/Horizontal Braces: Connect adjacent frames horizontally
Decking/Scaffold Planks: Form the work platform
Adjustable Base Jacks: Adjust height and distribute load
Connectors: Pins or couplers for secure assembly

Key Advantages and Features

Modular & standardized design for extremely fast assembly/disassembly
Stable structure with reliable load-bearing capacity
High adaptability and layout flexibility for various configurations
Cost-effective with low maintenance requirements
Easy to transport and store with uniform component shapes
Enhanced safety with guardrails, toe boards, and built-in ladders

Product Parameters

1. Walk Through Frame

Main Tube Size: OD42x2.0mm | Other Tube Size: OD25x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized

Item No.	Product Name	Description	Weight (kgs)
SCA63	Door Frame	Walk Thru Frame Width 914mm, Height 1524mm	10.81
SCA64		Walk Thru Frame Width 914mm, Height 1700mm	12.05
SCA65		Walk Thru Frame Width 1219mm, Height 1524mm	11.68
SCA66		Walk Thru Frame Width 1219mm, Height 1700mm	12.91
SCA67		Walk Thru Frame Width 1219mm, Height 1930mm	14.37

2. H Frame

Main Tube Size: OD42x2.0mm | Other Tube Size: OD25x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized

Item No.	Product Name	Description	Weight (kgs)
SCA68	Ladder Frame	H Frame Width 914mm, Height 1524mm	7.96
SCA69		H Frame Width 914mm, Height 1700mm	11.43
SCA70		H Frame Width 1219mm, Height 1524mm	9.16
SCA71		H Frame Width 1219mm, Height 1700mm	12.76
SCA72		H Frame Width 1219mm, Height 1930mm	14.24

3. American Style Walk Through Frame

Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized

Item No.	Product Name	Description	Weight (kgs)
SCA73	American-style door frame	American Style Walk Thru Frame Width 914mm, Height 1524mm	14.8
SCA74		American Style Walk Thru Frame Width 914mm, Height 1930mm	17.5
SCA75		American Style Walk Thru Frame Width 1524mm, Height 1930mm	18.9

4. American Style Mason Frame

Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized

Item No.	Product Name	Description	Weight (kgs)
SCA7	Ladder Frame	Mason Frame Width 1524mm, Height 914mm	14.4
SCA77		Mason Frame Width 1524mm, Height 1219mm	16.1
SCA78		Mason Frame Width 1524mm, Height 1524mm	17.9
SCA79		Mason Frame Width 1524mm, Height 1930mm	20.2
SCA80		Mason Frame Width 1524mm, Height 2007mm	21.8

5. Narrow Frame

Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized

Item No.	Product Name	Description	Weight (kgs)
SCA81	Four-bar frame	Narrow Frame Width 610mm, Height 1524mm	10.6
SCA82		Narrow Frame Width 610mm, Height 1930mm	12.5
SCA83		Narrow Frame Width 914mm, Height 1930mm	18.1
SCA84		Narrow Frame Width 1219mm, Height 1930mm	19.9

6. Italian Style Frame

Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x2.0mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized

Item No.	Picture	Product Name	Description	Weight (kgs)
SCA85		Italian-style door frame	Italian Style Frame Width 1050mm, Height 2000mm	11.6

7. Base Jack

Designed to provide a level base for the scaffolding platform | Steel Grade: Q235 | Surface treatment: Hot-dip Galvanized

Item No.	Description	Diameter (mm)	Length (mm)	Plate Size (mm)	Weight (kgs)
SCA86	Solid BaseJack	φ30 (solid)	600	120x120x4	3.58
SCA87	Solid BaseJack	φ32 (solid)	300	120x120x6	2.72
SCA88	Hollow Base Jack	φ38 (hollow)	400	150x150x6	3.19
SCA89	Hollow Base Jack	φ48 (hollow)	600	150x150x5	4.33

8. U Head Jack

Used as the base which holds the standard of the scaffold adjusting the height and making the scaffolding more stable | Steel Grade: Q235 | Surface treatment: Hot-dip galvanized

Item No.	Description	Diameter (mm)	Length (mm)	Plate Size (mm)	Weight (kgs)
SCA90	Solid U Head Jack	φ30 (solid)	600	150x150x50x4	4.32
SCA91	Solid UHead Jack	φ34 (solid)	500	140x210x75x6	6.2
SCA92	Hollow U HeadJack	φ38 (hollow)	600	150x150x50x6	4.29
CA93	Hollow U HeadJack	φ48 (hollow)	600	150x150x50x6	5.23

9. Frame Scaffolding Plank

Steel Grade: Q195, Q235 | Surface treatment: Pre-galvanized | Other sizes are available on request

Item No.	Description	Width (mm)	Height (mm)	Length (mm)
SCA94	Frame Scaffolding Plank 210*1829mm	210	1.2	1829
SCA95	Frame Scaffolding Plank 210*1829mm	210	1.5	1829
SCA96	Frame Scaffolding Plank 240*1829mm	240	1.2	1829
SCA97	Frame Scaffolding Plank 240*1829mm	240	1.5	1829
SCA98	Frame Scaffolding Plank 420*1829mm	420	1.2	1829
SCA99	Frame Scaffolding Plank 420*1829mm	420	1.5	1829
SCA1O0	Frame Scaffolding Plank 500*1829mm	500	1.2	1829
SCA101	Frame Scaffolding Plank 500*1829mm	500	1.5	1829

10. Frame Joint Pin

For Connecting the Scaffoldings | Steel Grade: Q235, Q345 | Surface treatment: Hot-dip Galvanized | Other sizes are available on request

Item No.	Picture	Description	Diameter (mm)	Thickness (mm)	Length (mm)
SCA102		Frame Joint Pin	35/36	1.5/1.6	225/220/210

11. Frame Scaffolding Cross Brace

Also called X braces - components of all Frame Scaffolding System | Steel Grade: Q195, Q235 | Surface treatment: Galvanized | Other sizes are available on request

Item No.	Description	Width (mm)	Height (mm)	Length (mm)
SCA103	Frame Scaffolding cross Brace	1829	1219	2198
SCA104		1219	1219	1724
SCA105		1829	914	2045
SCA106		1829	610	1928
SCA107		1219	610	1363

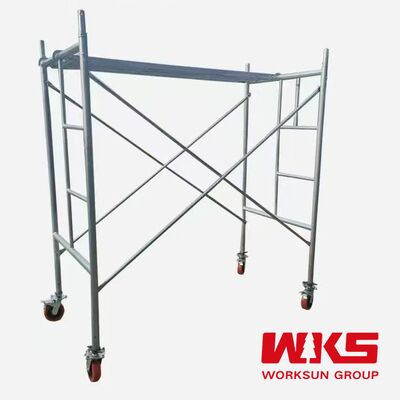

12. Scaffolding Wheel

Used at bottom of scaffolding vertical tube, enabling the scaffolding system to be a mobile Platform

Item No.	Picture	Product Name	Description
SCA108		caster	12" Caster wheel
SCA109		caster	16" Caster Wheel

Service

Customized production services: Professional team of engineers and consultants provide detailed product application solutions based on architectural and structural drawings
Timely response to service: Professional engineers available before, during, and after sales to promptly solve and meet your needs
Worry free after-sales service: One-on-one service teams help complete implementation and landing of engineering projects with perfect product-demand matching

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in the production and processing of formwork and scaffolding products for over 20 years.

How can I get a quotation?

For simple concrete pouring projects with your own engineer, provide us with a bill of materials for quotation. For complex projects like apartments and residences, our professional consultants will develop an application plan based on your engineering architectural and structural drawings.

How long does it usually take to complete the plan and quotation?

Generally, it takes about 5-8 days to complete the specific plan and detailed quotation after receiving your engineering drawings.

Can you provide free samples?

Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time after the contract is signed?

According to project complexity, it usually takes 30-60 days to complete stocking. More accurate delivery time will be estimated during the planning and quotation process.

Is the plastic template prone to deformation?

In long-term high temperature environments, concrete pouring projects may cause slight deformation of the formwork. We recommend using all aluminum alloy formwork or steel frame wood formwork system in high temperature areas.

What are the defects of the plastic template system?

The load force is too small for large-sized concrete structures, and poor high temperature resistance may cause slight deformation in high-temperature areas.

What is the payment method you require?

- Payment ≤ 1,000 USD: 100% in advance
- Payment ≥ 10,000 USD: 30% T/T in advance, balance before shipment
- Or L/C
