Rigid Frame Scaffolding System Q235 Mobile Scaffolding Systems Stable With Casters

Frame Scaffolding is a standard modular access solution widely used for building construction, facade maintenance, and general contracting projects. It consists of prefabricated welded steel frames connected with cross braces, offering a reliable and efficient platform for repetitive straight-line applications.

• Tool-Free Quick Assembly: Frames and cross braces connect using simple pin-and-clip or wedge-lock mechanisms, enabling rapid setup and dismantling by general labor without specialized tools.
• Integrated Access and Safety: Available in standard, walk-through, and ladder-frame designs, the system provides safe, compliant vertical and horizontal access with built-in guardrail options.
• Rigid and Stable Structure: Welded frames with diagonal cross bracing form a robust, wobble-free platform suitable for light to medium duty loads such as plastering, painting, and tiling.

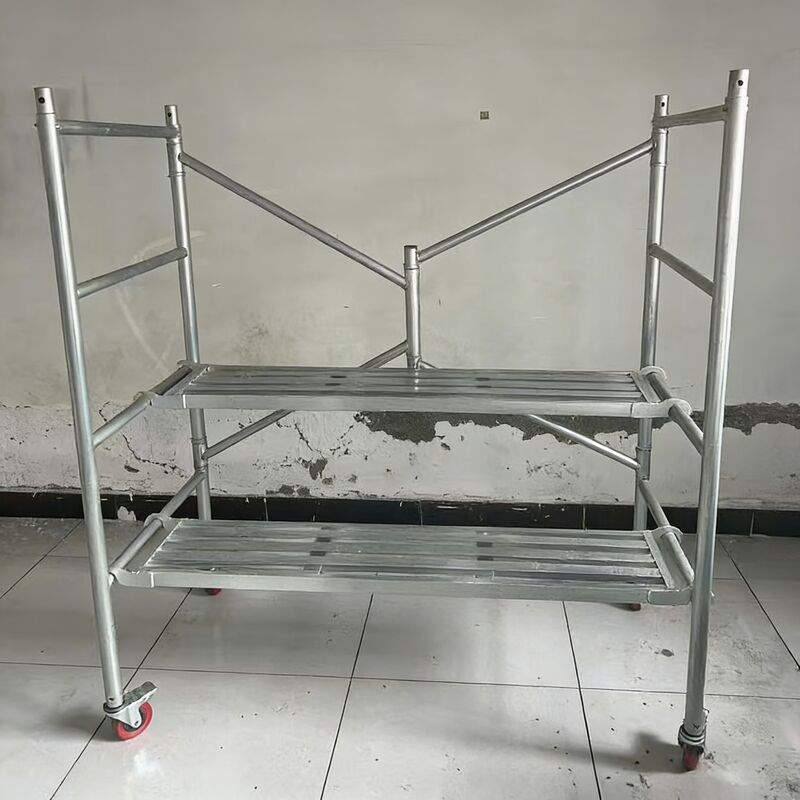

• Mobile and Static Configurations: Can be erected as fixed scaffolding towers or fitted with lockable casters for easy repositioning as mobile work platforms.

• Material: Q235 Steel Standard Grade or Aluminum Alloy Lightweight Option
• Frame Dimensions: Common sizes include 1219mm width x 1930mm height and 914mm width x 1700mm height
• Tube Diameter: Typically 42mm or 48mm, wall thickness 1.8mm to 2.2mm
• Load Capacity: Light to Medium Duty, generally rated for 2 to 4 kilonewtons per square meter
• Surface Finish: Hot-dip galvanized, painted, or pre-galvanized for corrosion protection

• Lowest Total Cost of Ownership: High reusability, mass-produced standard components, and low rental rates make it the most cost-effective solution for straightforward applications.
• Maximum Labor Efficiency: Fastest system to erect for standard, repetitive layouts, significantly reducing labor time and onsite assembly costs.
• Easy Inventory Management: Limited component types and standardized sizes simplify logistics, reduce loss, and streamline site management.

Main Tube Size: OD42x2.0mm | Other Tube Size: OD25x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized

Item No.	Picture	Product Name	Description	Weight (kgs)
SCA63		Door Frame	Walk Thru Frame Width 914mm, Height 1524mm	10.81
SCA64			Walk Thru Frame Width 914mm, Height 1700mm	12.05
SCA65			Walk Thru Frame Width 1219mm, Height 1524mm	11.68
SCA66			Walk Thru Frame Width 1219mm, Height 1700mm	12.91
SCA67			Walk Thru Frame Width 1219mm, Height 1930mm	14.37

Main Tube Size: OD42x2.0mm | Other Tube Size: OD25x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized

Item No.	Picture	Product Name	Description	Weight (kgs)
SCA68		Ladder Frame	H Frame Width 914mm, Height 1524mm	7.96
SCA69			H Frame Width 914mm, Height 1700mm	11.43
SCA70			H Frame Width 1219mm, Height 1524mm	9.16
SCA71			H Frame Width 1219mm, Height 1700mm	12.76
SCA72			H Frame Width 1219mm, Height 1930mm	14.24

Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized

Item No.	Picture	Product Name	Description	Weight (kgs)
SCA73		American-style door frame	American Style Walk Thru Frame Width 914mm, Height 1524mm	14.8
SCA74			American Style Walk Thru Frame Width 914mm, Height 1930mm	17.5
SCA75			American Style Walk Thru Frame Width 1524mm, Height 1930mm	18.9

Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized

Item No.	Picture	Product Name	Description	Weight (kgs)
SCA7		Ladder Frame	Mason Frame Width 1524mm, Height 914mm	14.4
SCA77			Mason Frame Width 1524mm, Height 1219mm	16.1
SCA78			Mason Frame Width 1524mm, Height 1524mm	17.9
SCA79			Mason Frame Width 1524mm, Height 1930mm	20.2
SCA80			Mason Frame Width 1524mm, Height 2007mm	21.8

Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x1.5mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized

Item No.	Picture	Product Name	Description	Weight (kgs)
SCA81		Four-bar frame	Narrow Frame Width 610mm, Height 1524mm	10.6
SCA82			Narrow Frame Width 610mm, Height 1930mm	12.5
SCA83			Narrow Frame Width 914mm, Height 1930mm	18.1
SCA84			Narrow Frame Width 1219mm, Height 1930mm	19.9

Main Tube Size: OD42x2.4mm | Other Tube Size: OD32x2.0mm | Steel Type: Q195/Q235/Q355 | Surface Treatment: Powder Coated, Pre-galvanized, Hot-dip galvanized, Cold-galvanized

Item No.	Picture	Product Name	Description	Weight (kgs)
SCA85		Italian-style door frame	Italian Style Frame Width 1050mm, Height 2000mm	11.6

Designed to provide a level base for the scaffolding platform | Steel Grade: Q235 | Surface treatment: Hot-dip Galvanized

Item No.	Picture	Description	Diameter (mm)	Length (mm)	Plate Size (mm)	Weight (kgs)
SCA86		Solid BaseJack	φ30 (solid)	600	120x120x4	3.58
SCA87		Solid BaseJack	φ32 (solid)	300	120x120x6	2.72
SCA88		Hollow Base Jack	φ38 (hollow)	400	150x150x6	3.19
SCA89		Hollow Base Jack	φ48 (hollow)	600	150x150x5	4.33

Used as the base which holds the standard of the scaffold adjusting the height and making the scaffolding more stable | Steel Grade: Q235 | Surface treatment: Hot-dip galvanized

Item No.	Picture	Description	Diameter (mm)	Length (mm)	Plate Size (mm)	Weight (kgs)
SCA90		Solid U Head Jack	φ30 (solid)	600	150x150x50x4	4.32
SCA91		Solid UHead Jack	φ34 (solid)	500	140x210x75x6	6.2
SCA92		Hollow U HeadJack	φ38 (hollow)	600	150x150x50x6	4.29
CA93		Hollow U HeadJack	φ48 (hollow)	600	150x150x50x6	5.23

Steel Grade: Q195, Q235 | Surface treatment: Pre-galvanized | Other sizes are available on request

Item No.	Picture	Description	Width (mm)	Height (mm)	Length (mm)
SCA94		Frame Scaffolding Plank 210*1829mm	210	1.2	1829
SCA95		Frame Scaffolding Plank 210*1829mm	210	1.5	1829
SCA96		Frame Scaffolding Plank 240*1829mm	240	1.2	1829
SCA97		Frame Scaffolding Plank 240*1829mm	240	1.5	1829
SCA98		Frame Scaffolding Plank 420*1829mm	420	1.2	1829
SCA99		Frame Scaffolding Plank 420*1829mm	420	1.5	1829
SCA1O0		Frame Scaffolding Plank 500*1829mm	500	1.2	1829
SCA101		Frame Scaffolding Plank 500*1829mm	500	1.5	1829

For Connecting the Scaffoldings | Steel Grade: Q235, Q345 | Surface treatment: Hot-dip Galvanized | Other sizes are available on request

Item No.	Picture	Description	Diameter (mm)	Thickness (mm)	Length (mm)
SCA102		Frame Joint Pin	35/36	1.5/1.6	225/220/210

Also called X braces - components of all Frame Scaffolding System | Steel Grade: Q195, Q235 | Surface treatment: Galvanized | Other sizes are available on request

Item No.	Picture	Description	Width (mm)	Height (mm)	Length (mm)
SCA103		Frame Scaffolding cross Brace	1829	1219	2198
SCA104			1219	1219	1724
SCA105			1829	914	2045
SCA106			1829	610	1928
SCA107			1219	610	1363

Used at bottom of scaffolding vertical tube, enabling the scaffolding system to be a mobile Platform

Item No.	Picture	Product Name	Description
SCA108		caster	12" Caster wheel
SCA109		caster	16" Caster Wheel

• Customized production services: Professional team of engineers and consultants provide detailed product application solutions based on architectural and structural drawings
• Timely response to service: Professional engineers available before, during, and after sales to promptly solve and meet your needs
• Worry free after-sales service: One-on-one service teams help complete implementation and landing of engineering projects with perfect product-demand matching

Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in the production and processing of formwork and scaffolding products for over 20 years.

How can I get a quotation?
For simple concrete pouring projects with your own engineer, provide us with a bill of materials for quotation. For complex projects like apartments and residences, our professional consultants will develop an application plan based on your engineering architectural and structural drawings.

How long does it usually take to complete the plan and quotation?
Generally, it takes about 5-8 days to complete the specific plan and detailed quotation after receiving your engineering drawings.

Can you provide free samples?
Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time after the contract is signed?
According to project complexity, it usually takes 30-60 days to complete stocking. More accurate delivery time will be estimated during the planning and quotation process.

Is the plastic template prone to deformation?
In long-term high temperature environments, concrete pouring projects may cause slight deformation of the formwork. We recommend using all aluminum alloy formwork or steel frame wood formwork system in high temperature areas.

What are the defects of the plastic template system?
The load force is too small for large-sized concrete structures, and poor high temperature resistance may cause slight deformation in high-temperature areas.

What is the payment method you require?
• Payment ≤ 1,000 USD: 100% in advance
• Payment ≥ 10,000 USD: 30% T/T in advance, balance before shipment
• Or L/C
