Robust Steel Frame Formwork 12mm 15mm Metal Slab Formwork For High Rise Core Walls And Slab Construction

Robust Steel Frame Formwork 12mm 15mm Metal Slab Formwork For High Rise Core Walls And Slab Construction

Brand Name:	WKS
MOQ:	50 piece
Price:	US $90.00 - 110.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Steel Frame Formwork

Material:

Steel Frame: Q235

Feature:

Reusable, High Strength, Adjustable Size

Colour:

Green, Blue, Orange, Yellow Or Customized

Type:

Wall Form

Thickness Of Front Panel:

12mm,15mm

Column Bearing Capacity:

80KN/sqm

Width:

300-2400mm

Height:

600mm,1200mm,1500mm,2400mm,2700mm,3300mm Or Customized

Frametype:

Rectangular Or Square

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Robust Steel Frame Formwork

Steel Frame Formwork 12mm

15mm Metal Slab Formwork

Product Description

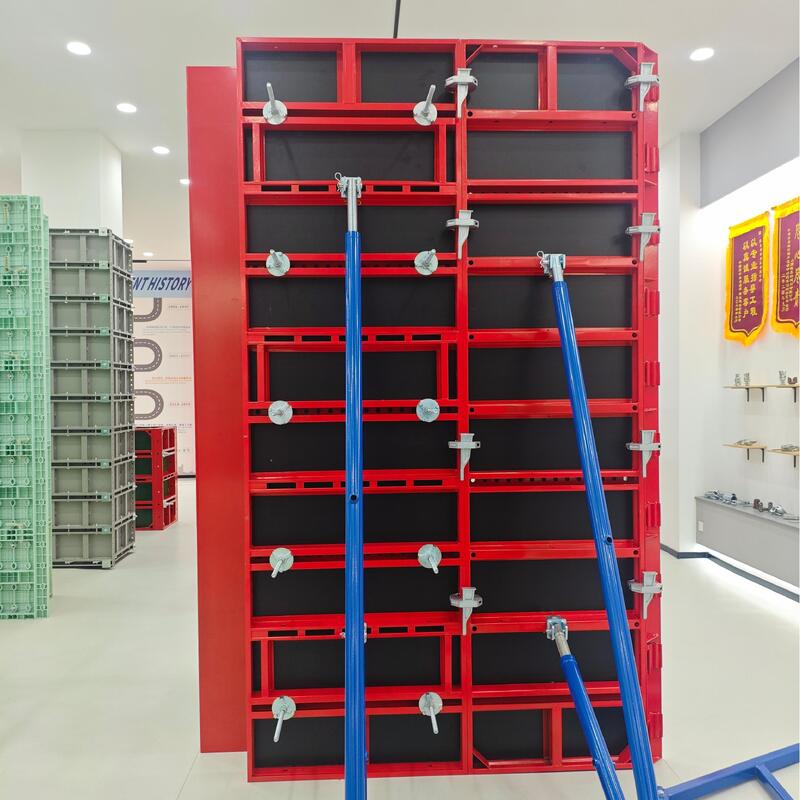

Steel Frame Formwork For High Rise Core Walls And Slab Construction

Steel Frame Formwork is a robust, industrialized building system designed for efficient casting of concrete walls, slabs, and columns. It integrates high-strength welded steel frames with durable film-faced plywood panels, offering superior balance of rigidity, reusability, and cost-effectiveness for large-scale commercial and residential projects.

Key Features & Functional Advantages

Exceptional Load Capacity & Stability: Rigid Q235/Q355 steel frame provides outstanding resistance to deformation, safely withstanding concrete pressures up to 60-80 kN/m²
Hybrid Durability & Economy: Combination of long-life steel frame (reusable 100+ times) with replaceable plywood panels significantly reduces long-term maintenance costs
Rapid Modular Assembly: Standardized sizes and simple pin-and-wedge or clamp connection system enable quick manual assembly without heavy crane dependency

Technical Specifications

Specification	Details
Frame Material	Q235B or Q355B Steel, hot-dip galvanized for corrosion resistance
Panel Face	15mm / 18mm High-Density Film Faced Plywood (phenolic coated)
Standard Sizes	Widths 300mm, 600mm, 900mm, 1200mm; Heights up to 3000mm
Surface Treatment	Galvanized frame with replaceable panel system

Detailed Specifications & Features

Materials	Steel Frame: Q235, Q345 Panel: Poplar/Birch/Hardwood with domestic or imported film faced paper
Thickness of Front Panel	12mm, 15mm
Color Options	Green, blue, orange, yellow or customized
Surface Treatment	Hot Dip Galvanized (HDG); cold galvanized; powder coated; dip painted
Column Bearing Capacity	80KN/sqm
Wall Bearing Capacity	60KN/sqm
Height Options	600mm, 1200mm, 1500mm, 2400mm, 2700mm, 3300mm or customized
Width Range	300-2400mm
Weight Range	Approximately 20KG-350KG

Application Scope

Suitable for residential and commercial buildings, concrete tanks, basements, bridge abutments and piers, and irregular concrete structures.

Professional Services

Customized Production Services

Our team assists with customized product configurations based on your project's architectural and structural drawings. Professional engineers and consultants provide detailed application solutions to ensure smooth implementation.

Responsive Technical Support

Professional engineers are available throughout pre-sales, during implementation, and post-sales to promptly address and meet your requirements. Our engineering team provides reasonable suggestions for your application plans.

Comprehensive After-Sales Service

Dedicated one-on-one service teams help complete engineering project implementation. Independent service teams for each project ensure perfect product-demand matching and efficient on-site construction.

Frequently Asked Questions

Do you provide samples? Is the sample chargeable or free?

Yes, we provide small size samples. Larger samples may require payment, and shipping costs are typically the customer's responsibility.

Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group operates two major production bases with over 20 years of specialized manufacturing experience.

How to get quotation?

For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects like apartments and villas, our consultants will develop application plans based on your architectural and structural drawings.

What can we supply for you?

We offer a comprehensive range of scaffolding, formwork accessories, and safety products for construction industries. We also design and produce custom steel items according to client specifications.

How can you guarantee better service and high quality products?

Advanced automated production lines, experienced workers, quality inspection teams, and chemical/physical laboratories ensure high quality. Our engineering team provides technical support, and sales teams offer responsive communication through various platforms.

How long is the estimated delivery time after the contract is signed?

Typically 30-60 days for completion, depending on project complexity. More accurate delivery timelines are provided during the planning and quotation process.

What is your terms of payment?

T/T with 30% deposit before manufacture and 70% balance payment against B/L copy, or L/C arrangements.
