| Brand Name: | WKS |
| MOQ: | 200/ Set |
| Price: | US $1.00 - 2.00/ Set |
| Payment Terms: | T/T |
| Supply Ability: | 1000 piece in 10 days |
Tube and Clamp Scaffold (also called tubular scaffolding) is a traditional yet highly versatile system built from steel tubes and forged clamps. It is the go-to choice for complex construction sites requiring custom shapes, high load capacity, and adaptability to irregular structures. Unlike modular systems, it offers unlimited configuration possibilities for industrial maintenance, shipbuilding, and complex facade projects.
Our system offers full compatibility with existing tubular setups, reducing replacement costs. With a complete range of accessories and third-party certified components, it ensures on-site safety and long-term ROI for contractors handling non-standard construction challenges.
| Execution Standard | Tube Diameter | Tube Wall Thickness | Tube Weight | Tube Length | Zinc Content |
|---|---|---|---|---|---|
| EN39 | 48.3mm | 3.2mm | 3.56kg/m | 0.3-6.3m | ≥40 microns |
| JGJ130 | 48.3mm | 3.6mm | 3.97kg/m | 0.3-6.3m | ≥40 microns |
| EN74 | 48.3mm | 4mm | 4.37kg/m | 0.3-6.3m | ≥40 microns |
Steel Tube Specifications: EN 39/BS 1139 / ASTM A513-07 standards, Q235 or Q345 steel material, hot dip galvanized or PVC coated surface treatment
| Types | Size(mm) | Weight |
|---|---|---|
| Forged British Type | 48.3x48.3 | 1.05KG |

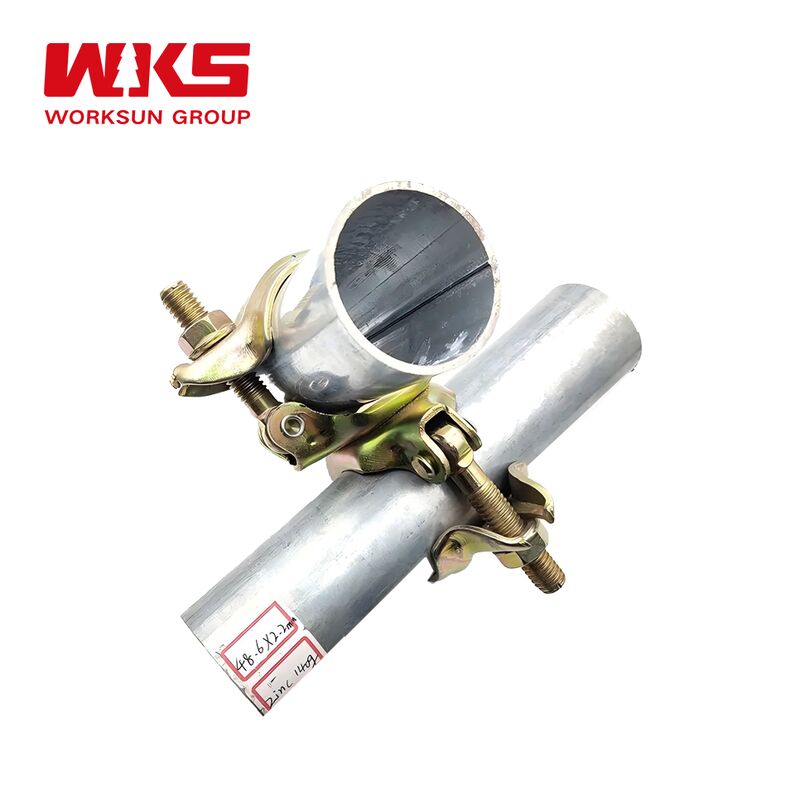

Connects two steel tubes that intersect vertically, relying on friction force between coupler and steel tube to transfer load.
| Types | Size(mm) | Weight |
|---|---|---|
| Forged British Type | 48.3x48.3 | 1.25KG |
Connects two steel pipes that intersect at any angle.
| Types | Size(mm) | Weight |
|---|---|---|
| Forged British Type | 48.3x48.3 | 0.95KG |
Connects and extends the length of two steel pipes.
| Types | Size(mm) | Weight |
|---|---|---|
| Pressed Japanese type | 48.6*48.6 | 0.55KG |
Connects two steel tubes that intersect vertically, relying on friction force between coupler and steel tube to transfer load.
| Types | Size(mm) | Weight |
|---|---|---|
| Pressed Japanese type | 48.6*48.6 | 0.58KG |
Connects two steel pipes that intersect at any angle.
| Types | Size(mm) | Weight |
|---|---|---|
| Pressed japanses type | 48.6*48.6 | 0.60KG |
Connects and extends the length of two steel pipes.
| Types | Size(mm) | Weight |
|---|---|---|
| Cast steel Chinese Type | 48.3x48.3 | 1KG |
Connects two steel tubes that intersect vertically, relying on friction force between coupler and steel tube to transfer load.
| Types | Size(mm) | Weight |
|---|---|---|
| Cast steel Chinese Type | 48.3x48.3 | 1KG |
Connects two steel pipes that intersect at any angle.
| Types | Size(mm) | Weight |
|---|---|---|
| Cast steel Chinese Type | 48.3x48.3 | 1KG |
Connects and extends the length of two steel pipes.
We operate as a trading company for export business, with ownership of a production base operating for over 20 years, specializing in templates and scaffolding related products.
We provide professional implementation solutions, high-quality products, and efficient technical support services in templates and scaffolding.
Yes, we provide samples. Customers are responsible for shipping costs.
Provide a required list with product quality, specifications, and quantity details, or supply construction drawings for our engineers to calculate material requirements and provide quotation.
Standard delivery is approximately 5 days. Fully customized production typically requires 10-15 days.
T/T 30% deposit payment before manufacture, with 70% balanced payment against B/L Copy, or L/C.
