Multi Purpose Tube Clamp Scaffolding Industrial Tubular Pipe Scaffolding For Event Stage Setup

Multi Purpose Tube Clamp Scaffolding Industrial Tubular Pipe Scaffolding For Event Stage Setup

Brand Name:	WKS
MOQ:	200/ Set
Price:	US $1.00 - 2.00/ Set
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Tube Clamp Scaffolding

Material:

Steel

Surface Treatment:

Hot Dip Galvanized Or PVC Coated

Design Style:

Industrial

Colour:

Customer's Request

Size:

3.56 Kg/m -4.37 Kg/m

Advantage:

Stable

Packing:

37 Or 61 Pieces/bundle.

Keyword:

Quick Clamp Pipe Fittings

Usage:

Buidling Constrcution

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Multi Purpose Tube Clamp Scaffolding

Industrial Tubular Pipe Scaffolding

Multi Purpose Tubular Pipe Scaffolding

Product Description

Multi Purpose Tube Clamp Scaffolding For Event Stage Setup

Tube And Clamp Scaffold: Versatile Heavy-Duty Construction Solution

Tube and Clamp Scaffold (also known as tubular scaffolding) is a traditional yet highly adaptable system consisting of steel tubes and forged clamps. It is the preferred choice for complex construction projects requiring custom shapes, high load capacity, and the ability to fit irregular structures, making it indispensable for industrial maintenance, shipbuilding, and intricate facade work.

Key Features & Functions

Unmatched Flexibility: Assemble any configuration (straight, angled, circular) to fit unique project geometries where standard modular systems fail.
Heavy-Duty Safety: Features drop-forged steel clamps and high-strength tubes for superior structural integrity under heavy loads and in demanding environments.
Cost-Effective: Lower initial investment compared to system scaffolding, ideal for long-term projects and non-standard access requirements.

Technical Parameters

Material: High-strength steel tubes, hot-dip galvanized for superior corrosion resistance.
Tube Specifications: Standard 48.3mm outer diameter, available in lengths from 1m to 6m.
Clamp Types: Includes fixed clamps (90°), swivel clamps (any angle), and beam clamps for comprehensive assembly options.
Compliance: Meets EN74, BS1139, and OSHA safety standards for guaranteed performance.

Competitive Advantages

Our Tube and Clamp Scaffold offers full compatibility with existing tubular setups, significantly reducing replacement costs. Supported by a complete range of accessories and third-party certified components, it ensures maximum on-site safety and delivers long-term ROI for contractors tackling complex construction challenges.

Steel Tube Specifications

Execution Standard	Tube Diameter	Tube Wall Thickness	Tube Weight	Tube Length	Zinc Content
EN39	48.3mm	3.2mm	3.56kg/m	0.3-6.3m	≥40 microns
JGJ130	48.3mm	3.6mm	3.97kg/m	0.3-6.3m	≥40 microns
EN74	48.3mm	4mm	4.37kg/m	0.3-6.3m	≥40 microns

Steel Tube Specifications: EN 39/BS 1139 / ASTM A513-07 standards, Q235 or Q345 steel material, hot dip galvanized or PVC coated surface treatment

British Type Couplers

Double Coupler

Types	Size(mm)	Weight
Forged British Type	48.3x48.3	1.05KG

Connects two steel tubes that intersect vertically, relying on friction force between coupler and steel tube to transfer load.

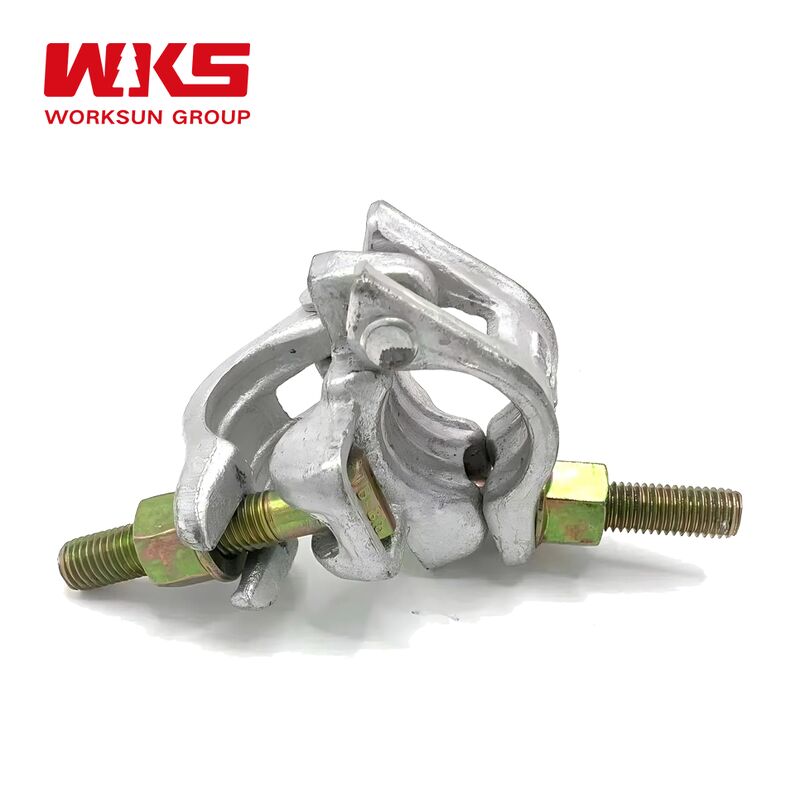

Swivel Coupler

Types	Size(mm)	Weight
Forged British Type	48.3x48.3	1.25KG

Connects two steel pipes that intersect at any angle.

Sleeve Coupler

Types	Size(mm)	Weight
Forged British Type	48.3x48.3	0.95KG

Connects and extends the length of two steel pipes.

Japanese Type Couplers

Double Coupler

Types	Size(mm)	Weight
Pressed Japanese type	48.6*48.6	0.55KG

Connects two steel tubes that intersect vertically, relying on friction force between coupler and steel tube to transfer load.

Swivel Coupler

Types	Size(mm)	Weight
Pressed Japanese type	48.6*48.6	0.58KG

Connects two steel pipes that intersect at any angle.

Sleeve Coupler

Types	Size(mm)	Weight
Pressed japanses type	48.6*48.6	0.60KG

Connects and extends the length of two steel pipes.

Chinese Type Couplers

Double Coupler

Types	Size(mm)	Weight
Cast steel Chinese Type	48.3x48.3	1KG

Connects two steel tubes that intersect vertically, relying on friction force between coupler and steel tube to transfer load.

Swivel Coupler

Types	Size(mm)	Weight
Cast steel Chinese Type	48.3x48.3	1KG

Connects two steel pipes that intersect at any angle.

Sleeve Coupler

Types	Size(mm)	Weight
Cast steel Chinese Type	48.3x48.3	1KG

Connects and extends the length of two steel pipes.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We operate as a trading company for export business, with ownership of a production base operating for over 20 years, specializing in templates and scaffolding related products.

What do you do?

We provide professional implementation solutions, high-quality products, and efficient technical support services in templates and scaffolding.

Do you provide samples? Is the sample chargeable or free?

Yes, we provide samples. Customers are responsible for shipping costs.

How to get quotation?

Provide a required list with product quality, specifications, and quantity details, or supply construction drawings for our engineers to calculate material requirements and provide quotation.

How long is your delivery cycle?

Standard delivery is approximately 5 days. Fully customized production typically requires 10-15 days.

What is your terms of payment?

T/T 30% deposit payment before manufacture, with 70% balanced payment against B/L Copy, or L/C.
