200mm Height Timber Props Formwork Yellow Timber Formwork For Concrete Slab

200mm Height Timber Props Formwork Yellow Timber Formwork For Concrete Slab

Brand Name:	WKS
MOQ:	50 piece
Price:	US $5.90 - 6.80/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Timber Props Formwork

Wood Type:

Finland Spruce/fir&plywood

Material:

Flange :spruce/fir Wood , Web:poplar Plywood

Color:

Yellow

Web Thickness:

27mm Or 30mm

Length:

900mm-5900mm

Width:

8cm

Height:

20cm

Bending Bearing Moment:

11KN M

Shear Capacity (broken Loading):

24KN

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

200mm Timber Props Formwork

Timber Props Formwork Yellow

Yellow Timber Formwork For Concrete Slab

Product Description

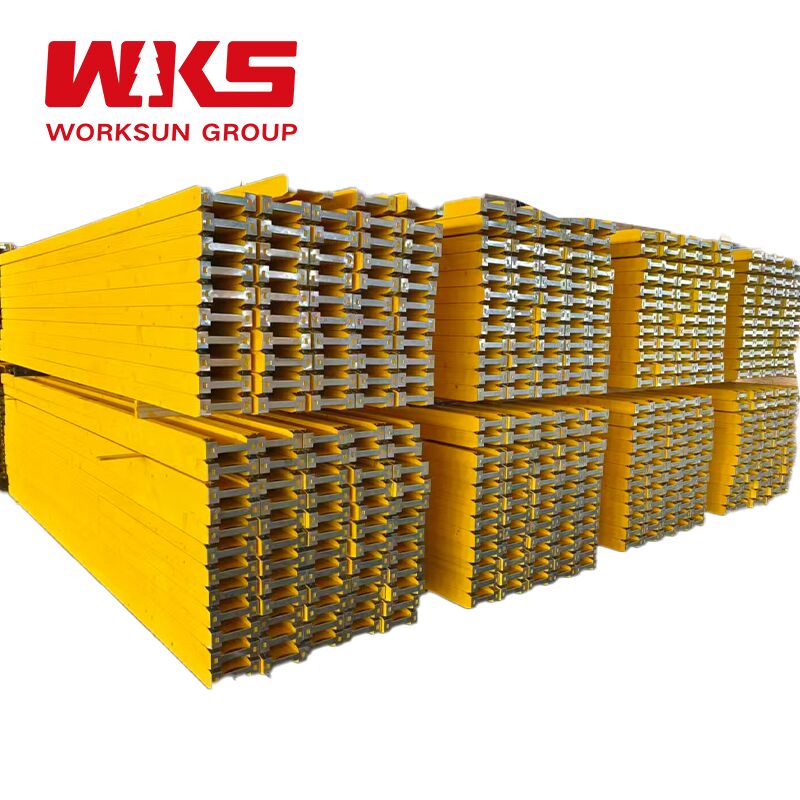

H20 Timber Beam Formwork 200mm Height for Concrete Slab Support System

The H20 Timber Beam is an engineered wood I-beam designed for high-load slab and wall formwork systems. Combining solid timber flanges with a structural plywood web, it offers a superior strength-to-weight ratio, making it a cost-effective backbone for commercial and civil construction projects.

Features & Functions

High Load Capacity: The 200mm beam height provides significant stiffness, allowing for wider prop spacing in slab construction and reducing the number of supports needed on site.
Lightweight & Maneuverable: Weighing only ~5kg/m, it is significantly lighter than steel alternatives, enabling manual handling and reducing crane dependency for faster setup.
Nail-Friendly & Adaptable: The solid timber flanges offer excellent nail-holding power for easy attachment of plywood sheathing, allowing on-site cutting and adaptation to complex layouts and openings.
Durable Coating: Treated with waterproof yellow paint and anti-corrosion agents, it withstands harsh site conditions and provides a longer service life compared to untreated timber.

Competitive Advantages

Cost Efficiency: Offers a lower initial investment than full metal systems while providing a high reuse cycle (typically 20+ times) when properly maintained.
System Compatibility: Universally compatible with major international formwork brands (Doka, PERI, etc.), ensuring easy integration into existing equipment fleets.
Job-Site Flexibility: Unlike rigid metal beams, it can be easily cut to length on-site, providing unmatched versatility for irregular shapes and last-minute design changes.

Key Specifications

Standard Dimension	80mm (W) x 200mm (H)
Flange Material	Solid Spruce/Pine (40mm thick)
Web Material	18-27mm Structural Plywood
Standard Lengths	1.45m - 6.0m (customizable)
Weight	Approx. 4.5 - 5.5 kg/m
Adhesive	WBP / Phenolic (Waterproof)

Technical Specifications

Product	H20 Timber Beam
Wood Type	Finland Spruce/Fir & Plywood
Color	Yellow
Width	8cm
Height	20cm
Length	900mm - 5900mm
Weight	Approximately 4.5kg - 30kg
Materials	Flange: Spruce/Fir Wood, Web: Poplar Plywood
Wood Moisture	12% ± 3% at delivery
Surface Protection	Waterproofed using water-repellent color glaze
Flange Wall	Width: 80mm, Thickness: 40mm
Web Thickness	27mm or 30mm
Shear Capacity	24KN (broken loading)
Bending Bearing Moment	11KN*M

Application Scope

Residential & commercial buildings, concrete tanks, basements, bridge abutments and piers, irregular concrete structures, and various engineering projects including buildings, water conservancy, hydropower, bridges, culverts, and high-rise structures.

Additional Competitive Advantages

Cost-Effective Solution: Lower initial investment compared to full-metal systems, with excellent ROI for mid-rise projects.
Versatile Application: Ideal for complex layouts, curved surfaces, and bridge decks where steel beams are less adaptable.
Reduced Labor Costs: Lightweight design allows for faster, safer manual assembly, cutting down on equipment and labor expenses.
System Compatibility: Designed to work seamlessly with major international formwork systems (Doka, PERI, etc.) and standard plywood panels.
Experienced Engineering Team: Average working experience of 10+ years ensuring professional solutions.
Production Excellence: Over 20 years of production experience ensuring stable product quality.

One-Stop Solution Service Process

Free Consultation Service: Provide construction drawings for evaluation of cost-effective formwork system solutions with detailed quotation.
Full Process Project Team Service: Dedicated team for professional engineering solutions, business communication, and on-site construction management.
Project Emergency Plan Service: Comprehensive planning including emergency handling procedures for formwork system products.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group has two major production bases with over 20 years of production experience.

What services do you provide?

We provide professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.

Do you provide samples? Are samples chargeable?

Yes, we provide samples. Customers pay for shipping costs.

What information is needed for design and quotation?

Architectural and structural drawings of the project are required.

How to get a quotation?

For simple projects with your own engineer, provide bill of materials. For complex projects like apartments and residences, provide engineering drawings for our engineers to develop application plans and quotations.

How long for design and quotation after providing drawings?

Typically 5-8 days to complete specific plans and detailed quotations.

What is the delivery time after contract signing?

Usually 20-30 days for stocking, depending on project complexity. More accurate timelines provided during planning.

What are your payment terms?

T/T: 30% deposit before manufacture, 70% balance against B/L copy. Or L/C.
