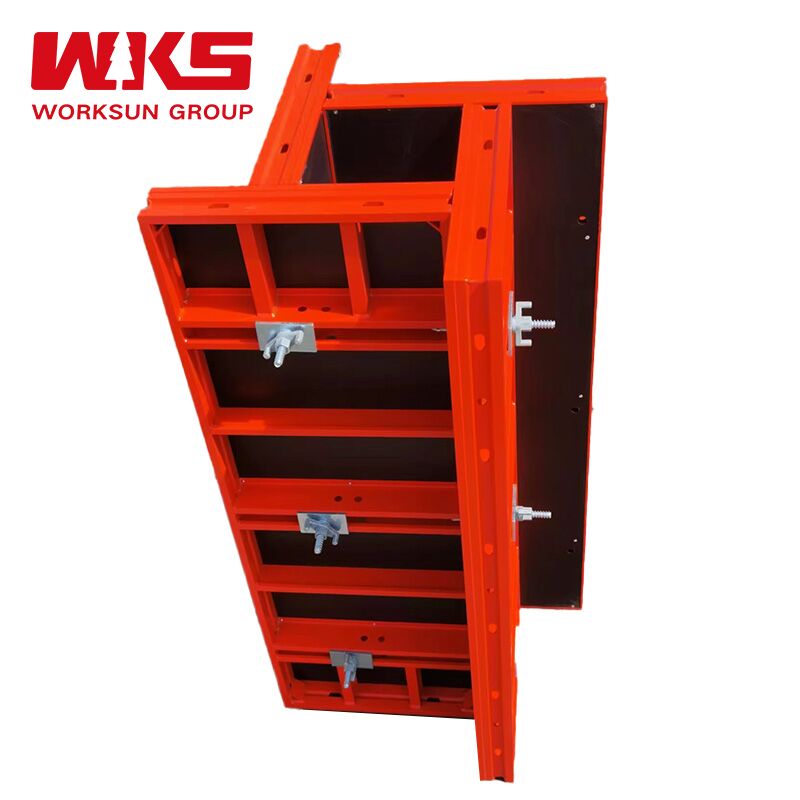

2400mm Height Aluminum Frame Formwork Powder Coating Concrete Column Shuttering

Aluminum Frame Formwork is a lightweight, high-strength modular system engineered for fast-cycle construction of high-rise residential and commercial buildings. It combines extruded aluminum alloy frames with high-density panels to deliver exceptional durability and precision for monolithic concrete pouring.

• Lightweight & Crane-Free Handling: Weighing only about one-third of equivalent steel systems, it enables manual handling and assembly on site, reducing reliance on heavy cranes and accelerating workflow.
• Pin & Wedge Fast Assembly: Utilizes a simple hammer-and-pin connection system, allowing rapid assembly and disassembly by semi-skilled labor, significantly cutting installation time and labor costs.
• Monolithic Pouring Capability: The integrated system allows walls, slabs, beams, and columns to be cast in a single continuous pour, ensuring superior structural integrity and minimizing cold joints.
• Early Stripping & High Reusability: Designed for early demolding (e.g., walls in 12-24 hours), enabling fast floor turnover. The non-corrosive aluminum frames can be reused 300+ times across multiple projects.

• Frame Material: 6061-T6 / 6082-T6 Aluminum Alloy
• Panel: 15-18mm Film Faced Plywood or Composite Board
• Standard Panel Size: 400-600mm (W) x 2400-3000mm (H)
• System Weight: 20-28 kg/m²
• Max Concrete Pressure: 40-60 kN/m²

• Lowest Total Project Cost: Despite a higher initial investment, the combination of extreme reusability, reduced crane costs, and faster construction cycles delivers the lowest cost-per-pour for repetitive high-rise projects.
• Plaster-Free Finish: Produces a consistently smooth, high-quality concrete surface that often eliminates the need for wet plastering, saving significant time and material costs.
• Global Standard & High Residual Value: Compatible with international Mivan-style systems, and the aluminum retains high scrap value at end-of-life, offering excellent return on investment.
• Optimal Lifecycle ROI: Offers the best balance of initial cost, high reusability (frames last for hundreds of cycles), and low operational expense, outperforming both steel and wood in repetitive projects.
• Labor & Time Savings: The lightweight design and pin-and-wedge connection system significantly reduce erection and stripping time compared to traditional formwork.
• Zero Waste & High Scrap Value: Aluminum frames are 100% recyclable at end-of-life, providing substantial residual value and supporting sustainable construction practices.
• Advanced Production & Experience: Advanced production equipment and 20 years of production experience with experienced engineering teams.
• Full Cycle Project Services: Comprehensive services to ensure smooth application of aluminum frame formwork throughout your project.

• Free Consultation Service: You provide us with construction drawings to evaluate which formwork system solution is more cost-effective and provide a detailed quotation list for you.
• Full Process One-on-One Project Team Service: Each project will have an independent team to provide you with professional engineering solution services, business communication services, and on-site construction management services.
• Project Emergency Plan Service: The project scheme formulation process will cautiously consider the emergency handling of aluminum alloy formwork system products during use.

Do you provide samples? Is the sample chargeable or free?
Yes, we can provide small size samples. If you need big size samples, you need to pay for them. You will also need to pay for the shipping cost.

Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 20 years.

How to get quotation?
For simple concrete pouring projects with your own engineer, provide us with a bill of materials for quotation. For complex projects like apartments and residences, our professional consultants will develop an application plan based on your engineering architectural drawings and provide a quotation.

What can we supply for you?
A comprehensive range of scaffolding, formwork accessories and safety products for the construction industries. We also design and produce steel items as per client requests, providing all kinds of scaffolding for your needs.

How can you guarantee that we will get better service and high quality products?
Advanced automated production lines, experienced workers, quality inspection teams, and chemical/physical laboratories ensure high quality products. Our engineering team provides technical support and our sales team offers one-on-one business communication through various platforms.

How long is the estimated delivery time after the contract is signed?
According to project complexity, it usually takes 30-60 days to complete stocking. We provide more accurate delivery time estimates during the planning and quotation process.

What is your terms of payment?
T/T 30% deposit payment before manufacture, and 70% balanced payment against B/L Copy. Or L/C.
