18mm Shutter Ply Board Lightweight Green Shuttering Plywood For Slab and Wall Form

18mm Shutter Ply Board Lightweight Green Shuttering Plywood For Slab and Wall Form

Brand Name:	WKS
MOQ:	US $7.50 - 10.80/ Piece
Price:	US $55.00 - 70.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Shutter Ply Board

Glue:

WBP Melamine

Core:

Poplar/Combi Core/Eucalyptus

Standardsize:

1220mm X 2440mm

Reuse Time:

12-15times

Thicknessrange:

9mm To 25mm

Layer:

3/5/7/9/11/13/15/18

Feature:

Construction

Specification:

1250*2500 (customized Size)

Special Size:

According To Your Requirement

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

18mm Shutter Ply Board

Shutter Ply Board Lightweight

Lightweight Green Shuttering Plywood

Product Description

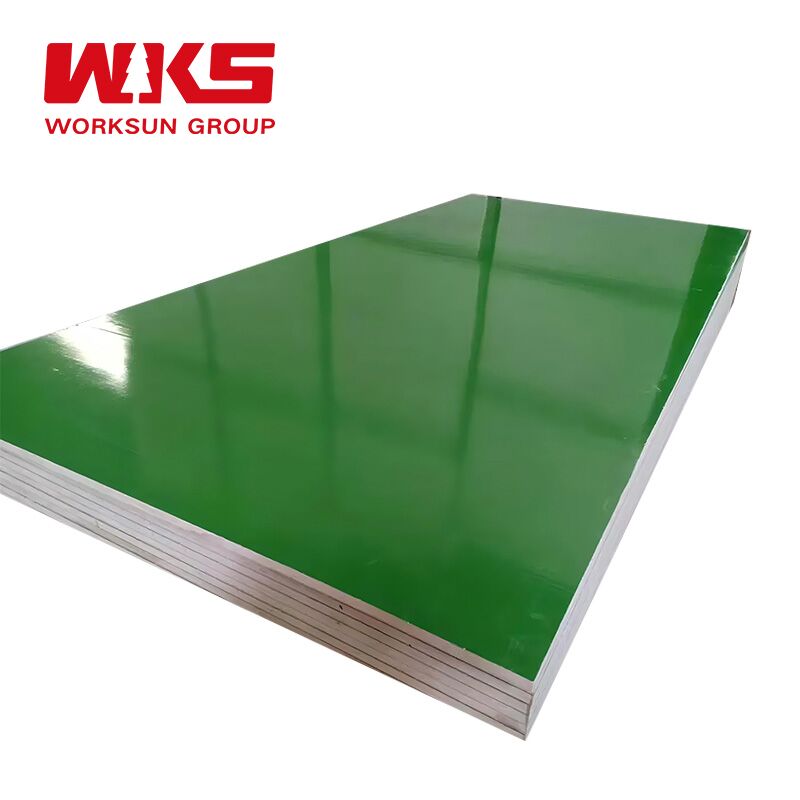

Green Film Faced Shuttering Plywood 18mm Thick for Slab and Wall Form

Green Plastic Film Faced Plywood is a high-performance construction panel designed for concrete formwork. It features a durable green polypropylene (PP) or phenolic film laminated onto a hardwood/poplar core, providing a smooth concrete finish and excellent reusability for walls, slabs, and bridges.

Features & Functions

Smooth Concrete Finish: The plastic film surface ensures easy demolding and produces a uniform, high-quality concrete surface, reducing the need for plastering.
High Durability & Waterproof: The film layer provides superior resistance to moisture, chemicals, and abrasion, making it suitable for harsh construction environments.
Lightweight & Easy Handling: Significantly lighter than steel formwork, it enables faster installation and reduces labor costs.
Reusable & Cost-Effective: Designed for multiple reuse cycles (typically 20-30 times), it offers a lower cost per pour compared to traditional wood formwork.

Key Specifications

Material: Hardwood/Poplar Core with Green PP/Phenolic Film
Standard Size: 1220×2440mm (Custom sizes available)
Thickness: 12mm, 15mm, 18mm, 21mm
Film Weight: 120-220 g/m²
Glue Type: WBP Phenolic (Water Boil Proof)
Reuse Cycles: 20 - 30+ times

Competitive Advantages

Optimal Balance of Cost & Performance: More affordable than steel/aluminum formwork with better durability and finish than standard plywood.
Versatile Application: Suitable for a wide range of projects, including high-rise buildings and civil engineering structures.
Reduced Maintenance: The film surface resists corrosion and sticking, requiring minimal cleaning between uses.

Specifications & Features

Item	Specification & Features
Product Name	Green Plastic Film Faced Plywood
Core Material	Poplar/Birch/Eucalyptus/Combine
Color of film faced paper	Brown/Red/Black/Customized Pattern
Glue	WBP, Melamine, Phenolic
Size(mm)	1200×1800, 1200×2400, 1220×2440, 1250×2500, etc.
Length (width) Tolerance	+/-2mm
Thickness(mm)	8-30mm
Thickness tolerance	+/-0.5mm
Density	550-770kg/m³
Number of Layers	from 5 up to 21 depending on thickness
Processing of edge	waterproof paint in different color
Moisture Content	6-12%
Manufacturing Process	a. First or second level veneer formed by one-time hot pressing. b. First or second level veneer formed by two-times pressing, one-time cold press and one-time hot press. c. First grade veneer formed by three-times pressing, one-time cold press, one-time burnishing&press and one-time hot press. d. Recycling film faced plywood insertion/finger connection for one-time hot pressing molding.

Application Scope

Construction Industry: As one of the molds for concrete pouring, film faced plywood is widely used in various construction buildings, such as high-floor apartments, commercial buildings, villas, bridges, hospitals, schools, and so on.
Outdoor Stage: The film paper on the surface of the Film Faced Plywood can be customized to press and stick the anti slip facial mask paper, which is used for various types of outdoor stage construction.
Goods Shelves and Box Type Vehicle Flooring: Due to the waterproof, wear-resistant, and pressure resistant properties of Film Faced Plywood, they are also widely used in warehouses (shelves), railway freight cars, and truck floors and sidewalls.

Frequently Asked Questions

How to get a sample? Is the sample chargeable or free? Please contact us via WhatsApp, WeChat, or email and let us know your real needs. We will promptly contact you and confirm the accurate requirements before mailing you the samples.
Are you a trading company or a manufacturer? Firstly, we are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company. Secondly, our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 20 years.
How to get quotation? Please provide us the required list with the details of production's quality, specifications, and quantity, and we will provide you with an accounting quotation.
How long is your delivery cycle? Under normal circumstances, the delivery cycle is around 5 days. If you require fully customized production of the product, the delivery cycle is generally around 10-15 days.
What is the payment method you require? T/T 30% deposit payment before manufacture, and 70% balanced payment against B/L Copy. Or L/C.
What's your quality guarantee? We have 100% quality guarantee to customers. We will be responsible for any quality problem.
