High Strength Plastic Formwork Panel 1200x2400mm 15mm Concrete Plastic Formwork For Foundation

High Strength Plastic Formwork Panel 1200x2400mm 15mm Concrete Plastic Formwork For Foundation

Brand Name:	WKS
MOQ:	50 piece
Price:	US $55.00 - 70.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Plastic Formwork Panel

Color:

Black / White

Maximum Size:

1.2*0.6m

Operating Temperature:

-20℃to +80℃

Are ㎡/pcs:

1.8000

Weight:

14kg/sqm

Density:

1.03g/cm³-1.28g/cm³

Customize Or Not:

Available In Custom Or Standard Sizes

Maximum Load Pressure:

60KN/sqm For Wall & 80KN/sqm For Column

Maximum Billet Thickness:

300mm

Dimensions:

Standard Panel Size 600mm X 300mm (customizable)

Reusability:

Reusable Up To 100+ Times

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

High Strength Plastic Formwork Panel

Plastic Formwork Panel 1200x2400mm

15mm Concrete Plastic Formwork

Product Description

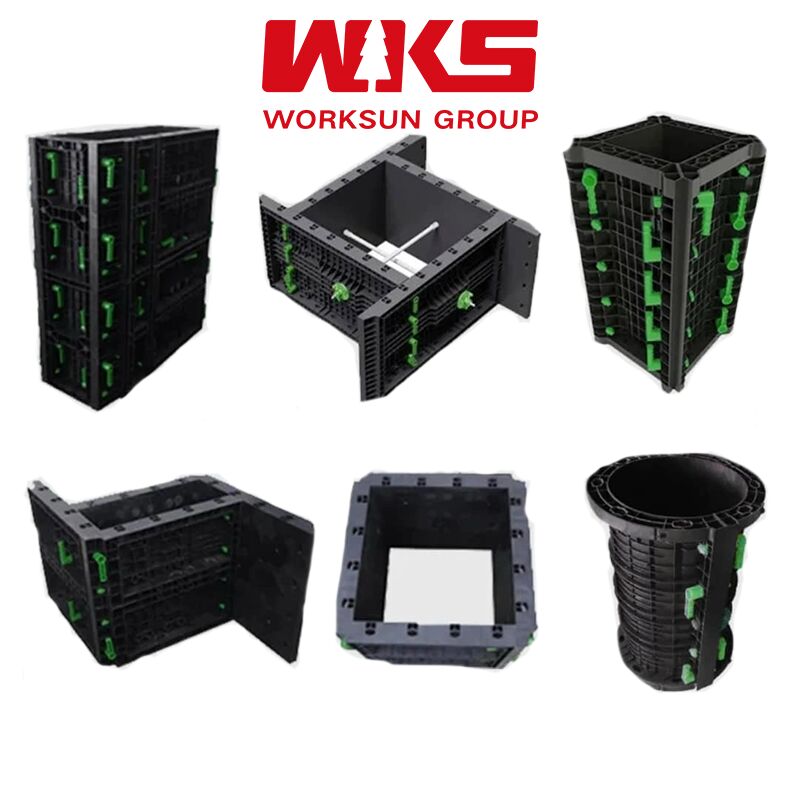

High Strength ABS Plastic Formwork Panels 1200x2400mm 15mm for Foundation

Product Overview

ABS Plastic Formwork is engineered for demanding construction projects that require maximum durability and superior finish quality. This high-performance formwork solution provides exceptional structural stability and surface consistency, making it ideal for architectural concrete, precision engineering, and high-reuse applications.

Features & Benefits

Excellent Surface Finish: Guarantees smooth, uniform concrete surfaces that require minimal post-treatment, saving time and resources.
High Strength & Rigidity: Withstands high pouring pressures without deformation, ensuring dimensional accuracy and structural integrity.
Chemical & Weather Resistance: Superior resistance to oils, solvents, and UV exposure, maintaining performance in challenging environments.
Thermal Stability: Performs consistently across a wide temperature range, with minimal expansion or contraction.

Key Specifications

Material: Premium ABS with reinforcing additives
Standard Panel: 1200x2400mm (customizable)
Thickness Options: 10mm, 12mm, 15mm
Temperature Range: -25°C to 75°C
Reuse Potential: 100+ cycles
Fire Rating: B1 standard (self-extinguishing)

Competitive Advantages

Longest Service Life: Outperforms standard plastic formwork with extended reuse cycles, providing the lowest lifetime cost.
Premium Quality Assurance: Delivers consistent, high-precision results for projects with strict quality requirements.
Versatile Performance: Suitable for both standard construction and specialized applications where surface quality is critical.

Technical Specifications

Item	Specification
Materials	ABS (Acrylonitrile Butadiene Styrene)
Density	1.03g/cm³-1.28g/cm³
Weight	14kg/sqm
Max Size	1.2*0.6m
Max Casting Slab Thickness	300mm
Maximum Load Pressure	60KN/sqm for wall & 80KN/sqm for column
Operation Temp	-20℃ to +80℃
Surface Hardness	94

Product Specifications

Name	Size (LengthWidthHeight mm)	Color	Weight (KG)	Material
Panel	120060075 mm	Black	10.1	ABS (Acrylonitrile Butadiene Styrene)
Panel	40060075 mm	Black	3.7	ABS (Acrylonitrile Butadiene Styrene)
Panel	35060075 mm	Black	3.4	ABS (Acrylonitrile Butadiene Styrene)
Panel	30060075 mm	Black	2.7	ABS (Acrylonitrile Butadiene Styrene)
Panel	25060075 mm	Black	2.5	ABS (Acrylonitrile Butadiene Styrene)
Panel	20060075 mm	Black	2.2	ABS (Acrylonitrile Butadiene Styrene)
Panel	18060075 mm	Black	2.1	ABS (Acrylonitrile Butadiene Styrene)
Panel	30030075 mm	Black	1.4	ABS (Acrylonitrile Butadiene Styrene)
Panel	30025075 mm	Black	1.3	ABS (Acrylonitrile Butadiene Styrene)
Panel	30020075 mm	Black	1.25	ABS (Acrylonitrile Butadiene Styrene)
Panel	30015075 mm	Black	0.7	ABS (Acrylonitrile Butadiene Styrene)
Panel	25025075 mm	Black	1.13	ABS (Acrylonitrile Butadiene Styrene)
Panel	25020075 mm	Black	0.9	ABS (Acrylonitrile Butadiene Styrene)
Panel	20020075 mm	Black	0.8	ABS (Acrylonitrile Butadiene Styrene)
Panel	20015075 mm	Black	0.6	ABS (Acrylonitrile Butadiene Styrene)
Outside Corner Panel	25060075 mm	Black	2.85	ABS (Acrylonitrile Butadiene Styrene)
Internal Corner Panel	250100600*75 mm	Black	3.5	ABS (Acrylonitrile Butadiene Styrene)
Top Angle Panel	250250100*75 mm	Black	1.5	ABS (Acrylonitrile Butadiene Styrene)
Handle	-	White	0.1	PA (Polyamides)

Frequently Asked Questions

Are you a trading company or a manufacturer?

Firstly, we are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company. Secondly, our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 20 years.

How can I get a quotation?

If you are a simple concrete pouring project, such as walls, swimming pools, main structures, and basements, and you have your own engineer, you can directly provide us with a bill of materials, and we will provide you with a quotation according to the bill of materials. If you are a concrete pouring project for apartments, residences, villas, etc., and need to use plastic formwork products as a whole, our professional consultants will communicate with you in detail. After you provide us with the engineering architectural drawings and structural drawings, our engineers will develop an application plan for you and provide you with a quotation based on the specific plan.

How long does it usually take to complete the plan and quotation after we provide the engineering architectural drawings and structural drawings?

Generally, it takes about 5-8 days to complete the specific plan and detailed quotation.

Can you provide free samples?

Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time after the contract is signed?

According to the complexity of the project, it usually takes 30-60 days to complete the stocking. We will estimate a more accurate delivery time for you during the planning and quotation process.

Is the plastic template prone to deformation?

If the construction environment where the project is located belongs to long-term high temperature, the increase in temperature of the concrete pouring project may cause slight deformation of the formwork. It is recommended to use all aluminum alloy formwork or steel frame wood formwork system in high temperature areas.

What are the defects of the plastic template system?

The load force is too small to complete the construction of large-sized concrete structures; Poor high temperature resistance, slight deformation may occur when used in high-temperature areas.

What is the payment method you require?

Payment <= 1,000 USD, 100% in advance. Payment >= 10,000 USD, 30% T/T in advance, balance before shipment. Or L/C.
