Modular Plastic Formwork
Created with Pixso.

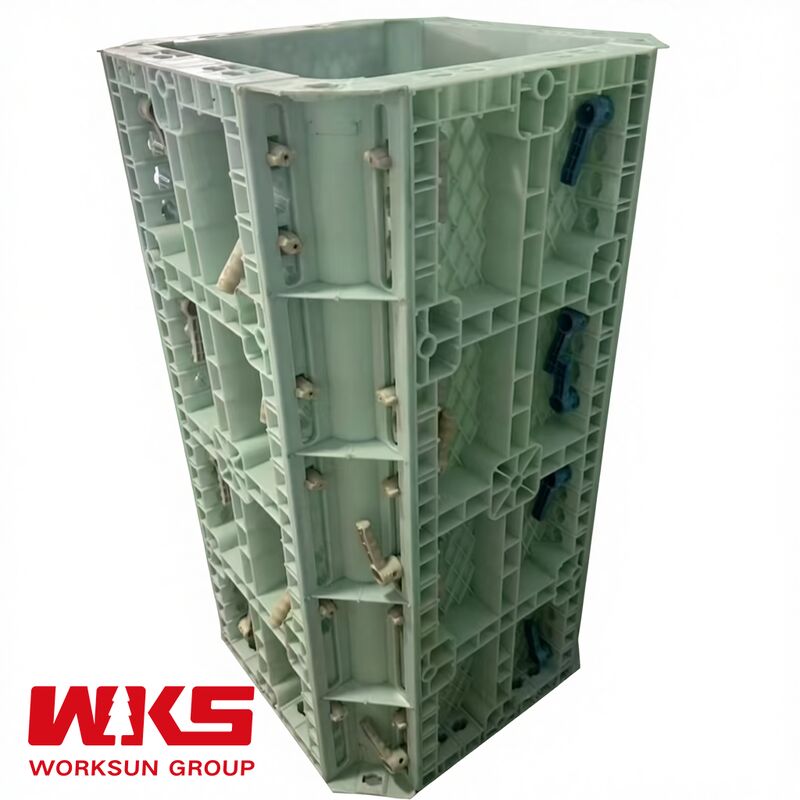

1200x2400mm Plastic Formwork Sheet 18mm Thick Concrete Column Formwork Lightweight

1200x2400mm Plastic Formwork Sheet 18mm Thick Concrete Column Formwork Lightweight

Brand Name: WKS
MOQ: 50 piece
Price: US $55.00 - 70.00/ Square Meter
Payment Terms: T/T
Supply Ability: 1000 piece in 10 days
Detail Information
Place of Origin:
Hebei,China
Certification:
ROHS
Product Name:
ABS Plastic Formwork
Color:
Black / White
Product Life:
More Than 1500 Times
Loadcapacity:
Supports Up To 30 KN/m²
Surfacefinish:
Smooth Concrete Surface Finish
Size:
150*30*(8-10)cm
Material:
High-density Polypropylene (HDPE)
Panelsize:
Standard Sizes Such As 600mm X 600mm Or Customizable
Reusability:
Reusable Up To 100+ Times
Final Product:
Wall
Packaging Details:
Bundled / Tied in bundles/Optimization of container loading
Highlight:

1200x2400mm Plastic Formwork Sheet

,

18mm Concrete Column Formwork

,

Concrete Column Formwork Lightweight

Product Description
1200x2400mm PP Plastic Formwork Sheet 18mm Thick for Concrete Slab Panel
Product Overview

PP (Polypropylene) Plastic Formwork is a high-performance, reusable modular system designed for efficient concrete construction. It is engineered to replace traditional wood and steel formwork, providing a lightweight yet robust solution for walls, slabs, columns, and beams. Ideal for commercial, residential, and civil projects, it ensures consistent results and significant time and cost savings.

Features & Functions
  • Lightweight & High Strength: Exceptionally easy to handle and install, reducing labor and equipment needs, while maintaining excellent load-bearing capacity.
  • Excellent Demolding: Produces smooth, uniform concrete surfaces that separate cleanly without adhesives, minimizing finishing work.
  • Chemical & Water Resistant: Impervious to moisture, rust, and most alkalis, ensuring longevity and consistent performance in various environments.
  • Modular & Adaptable: Easy to cut, drill, and assemble on-site, offering flexibility for complex layouts and design specifications.
Key Specifications
  • Material: Virgin Polypropylene (PP), optional glass-fiber reinforcement
  • Standard Panel Size: 600x1200mm, 1220x2440mm (custom sizes available)
  • Thickness: 12mm, 15mm, 18mm, 20mm
  • Reuse Cycles: 50+ times
  • Operating Temperature: -20°C to 60°C
Competitive Advantages
  • Superior Cost Efficiency: Lower initial investment than steel, with a reuse rate 8-10x higher than plywood, delivering the lowest cost-per-use.
  • Eco-Friendly & Sustainable: 100% recyclable, reduces timber consumption and construction waste, supporting green building certifications.
  • Enhanced Productivity: Streamlines construction workflow, reduces skilled labor dependency, and accelerates project timelines for faster ROI.
Product Specifications
ProductionMaterialSize (mm)Unit Weight (kg/pcs)Area (m²/pcs)
PP PanelPP1500*1200*7827.001.8000
  1500*1000*7822.501.5000
  1500*900*7820.251.3500
  1500*800*7818.001.2000
  1500*700*7815.751.0500
  1500*600*7813.500.9000
  1500*500*7811.250.7500
  1500*450*7810.130.6750
  1500*400*789.000.6000
  1500*350*787.880.5250
PP PanelPP750*150*782.250.1125
  750*100*781.500.0750
  600*600*786.840.3600
  600*500*785.700.3000
  500*500*784.750.2500
  500*400*783.800.2000
  400*400*783.040.1600
  300*300*781.710.0900
  250*250*781.190.0625
  200*200*780.760.0400
  150*150*780.430.0225
1200x2400mm Plastic Formwork Sheet 18mm Thick Concrete Column Formwork Lightweight 0
Frequently Asked Questions
Are you a trading company or a manufacturer?
Firstly, we are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company. Secondly, our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 20 years.
How can I get a quotation?
If you are a simple concrete pouring project, such as walls, swimming pools, main structures, and basements, and you have your own engineer, you can directly provide us with a bill of materials, and we will provide you with a quotation according to the bill of materials. If you are a concrete pouring project for apartments, residences, villas, etc., and need to use plastic formwork products as a whole, our professional consultants will communicate with you in detail. After you provide us with the engineering architectural drawings and structural drawings, our engineers will develop an application plan for you and provide you with a quotation based on the specific plan.
How long does it usually take to complete the plan and quotation after we provide the engineering architectural drawings and structural drawings?
Generally, it takes about 5-8 days to complete the specific plan and detailed quotation.
Can you provide free samples?
Yes, we can provide samples. You will need to pay for the shipping cost.
How long is the estimated delivery time after the contract is signed?
According to the complexity of the project, it usually takes 30-60 days to complete the stocking. We will estimate a more accurate delivery time for you during the planning and quotation process.
Is the plastic template prone to deformation?
If the construction environment where the project is located belongs to long-term high temperature, the increase in temperature of the concrete pouring project may cause slight deformation of the formwork. It is recommended to use all aluminum alloy formwork or steel frame wood formwork system in high temperature areas.
What are the defects of the plastic template system?
The load force is too small to complete the construction of large-sized concrete structures; Poor high temperature resistance, slight deformation may occur when used in high-temperature areas.
What is the payment method you require?
Payment ≤ 1,000 USD: 100% in advance
Payment ≥ 10,000 USD: 30% T/T in advance, balance before shipment
Or L/C (Letter of Credit)
1200x2400mm Plastic Formwork Sheet 18mm Thick Concrete Column Formwork Lightweight 1
