Modular Plastic Formwork
Created with Pixso.

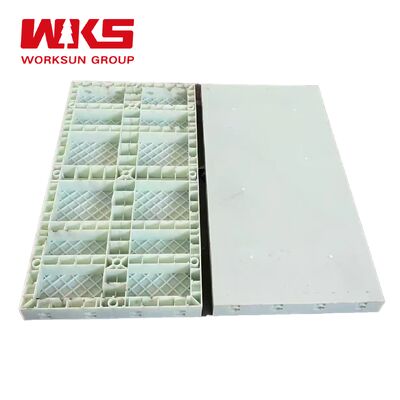

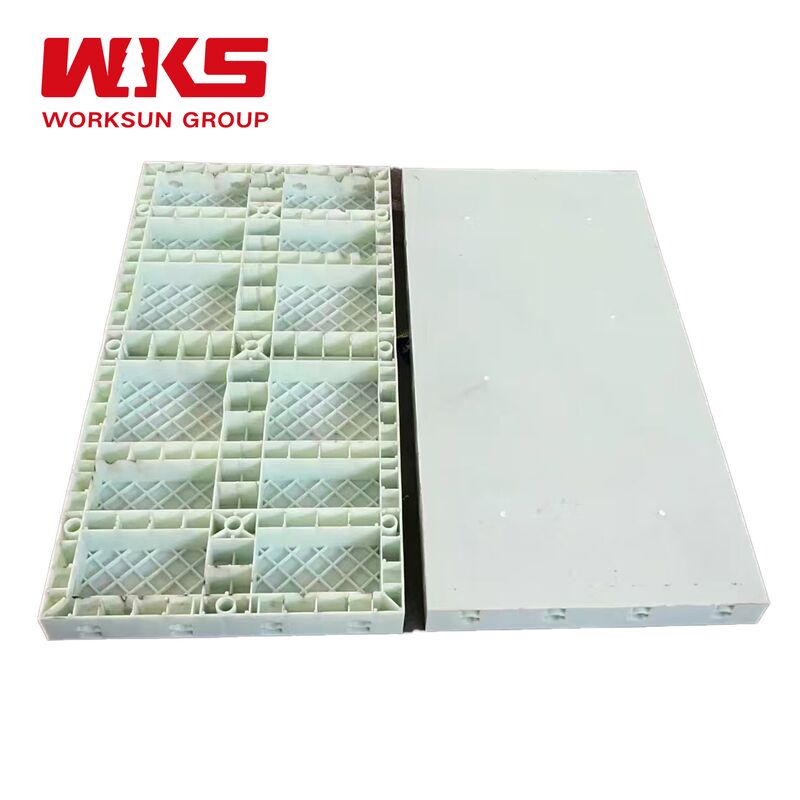

Interlocking Reusable Formwork System Eco Friendly Plastic Shuttering Sheets

Interlocking Reusable Formwork System Eco Friendly Plastic Shuttering Sheets

Brand Name: WKS
MOQ: 50 piece
Price: US $55.00 - 70.00/ Square Meter
Payment Terms: T/T
Supply Ability: 1000 piece in 10 days
Detail Information
Place of Origin:
Hebei,China
Certification:
ROHS
Product Name:
Reusable Formwork System
Color:
Black / White
Product Life:
More Than 1500 Times
Loadcapacity:
Supports Up To 30 KN/m²
Surfacefinish:
Smooth Concrete Surface Finish
Size:
150*30*(8-10)cm
Material:
High-density Polypropylene (HDPE)
Panelsize:
Standard Sizes Such As 600mm X 600mm Or Customizable
Reusability:
Reusable Up To 100+ Times
Final Product:
Wall
Packaging Details:
Bundled / Tied in bundles/Optimization of container loading
Highlight:

Interlocking Reusable Formwork System

,

Reusable Formwork System Eco Friendly

,

Eco Friendly Plastic Shuttering Sheets

Product Description
Reusable PP Plastic Formwork Interlocking System for Wall and Beam
Product Overview

PP Plastic Formwork is a versatile and cost-effective construction solution designed for high-efficiency concrete forming. Made from durable polypropylene, it serves as a reliable, reusable alternative to traditional wood and steel formwork, ideal for residential buildings, commercial structures, and general civil engineering projects requiring smooth concrete finishes.

Features & Functions
  • Lightweight & Easy Installation: Extremely lightweight for rapid handling and assembly, reducing labor intensity and significantly shortening project timelines.
  • Excellent Concrete Finish: Provides a uniform, smooth concrete surface that minimizes post-processing work and enhances aesthetic quality.
  • High Durability & Reusability: Resists corrosion, moisture, and chemicals, offering 50+ reuse cycles for long-term cost savings.
  • Flexible & Adaptable: Easily cut and customized on-site to fit complex architectural designs, curves, and non-standard dimensions.
Key Specifications
  • Material: Polypropylene (PP), with optional fiber reinforcement
  • Standard Size: 1220x2440mm (4x8ft), customizable upon request
  • Thickness Options: 12mm, 15mm, 18mm
  • Reuse Cycles: 50+ times
  • Operating Temperature: -20°C to 60°C
Competitive Advantages
  • Cost-Effective Solution: Lower initial investment and reduced labor costs deliver superior value compared to traditional wood or steel formwork.
  • Eco-Friendly & Sustainable: 100% recyclable, reduces timber dependency, and aligns with green building standards.
  • Versatile Application: Suitable for diverse climates and project scales, balancing performance, durability, and economy.
Product Specifications
Production Material Size (mm) Unit Weight (kg/pcs) Area (m²/pcs)
PP Panel PP 1500*1200*78 27.00 1.8000
    1500*1000*78 22.50 1.5000
    1500*900*78 20.25 1.3500
    1500*800*78 18.00 1.2000
    1500*700*78 15.75 1.0500
    1500*600*78 13.50 0.9000
    1500*500*78 11.25 0.7500
    1500*450*78 10.13 0.6750
    1500*400*78 9.00 0.6000
    1500*350*78 7.88 0.5250
PP Panel PP 750*150*78 2.25 0.1125
    750*100*78 1.50 0.0750
    600*600*78 6.84 0.3600
    600*500*78 5.70 0.3000
    500*500*78 4.75 0.2500
    500*400*78 3.80 0.2000
    400*400*78 3.04 0.1600
    300*300*78 1.71 0.0900
    250*250*78 1.19 0.0625
    200*200*78 0.76 0.0400
    150*150*78 0.43 0.0225
Interlocking Reusable Formwork System Eco Friendly Plastic Shuttering Sheets 0
Frequently Asked Questions
Are you a trading company or a manufacturer?

Firstly, we are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company.

Secondly, our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 20 years.

How can I get a quotation?

If you are a simple concrete pouring project, such as walls, swimming pools, main structures, and basements, and you have your own engineer, you can directly provide us with a bill of materials, and we will provide you with a quotation according to the bill of materials.

If you are a concrete pouring project for apartments, residences, villas, etc., and need to use plastic formwork products as a whole, our professional consultants will communicate with you in detail. After you provide us with the engineering architectural drawings and structural drawings, our engineers will develop an application plan for you and provide you with a quotation based on the specific plan.

How long does it usually take to complete the plan and quotation after we provide the engineering architectural drawings and structural drawings?

Generally, it takes about 5-8 days to complete the specific plan and detailed quotation.

Can you provide free samples?

Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time after the contract is signed?

According to the complexity of the project, it usually takes 30-60 days to complete the stocking. We will estimate a more accurate delivery time for you during the planning and quotation process.

Is the plastic template prone to deformation?

If the construction environment where the project is located belongs to long-term high temperature, the increase in temperature of the concrete pouring project may cause slight deformation of the formwork. It is recommended to use all aluminum alloy formwork or steel frame wood formwork system in high temperature areas.

What are the defects of the plastic template system?

The load force is too small to complete the construction of large-sized concrete structures; Poor high temperature resistance, slight deformation may occur when used in high-temperature areas.

What is the payment method you require?

Payment ≤ 1,000 USD: 100% in advance

Payment ≥ 10,000 USD: 30% T/T in advance, balance before shipment

Or L/C (Letter of Credit)

Interlocking Reusable Formwork System Eco Friendly Plastic Shuttering Sheets 1
