Modular Plastic Formwork
Created with Pixso.

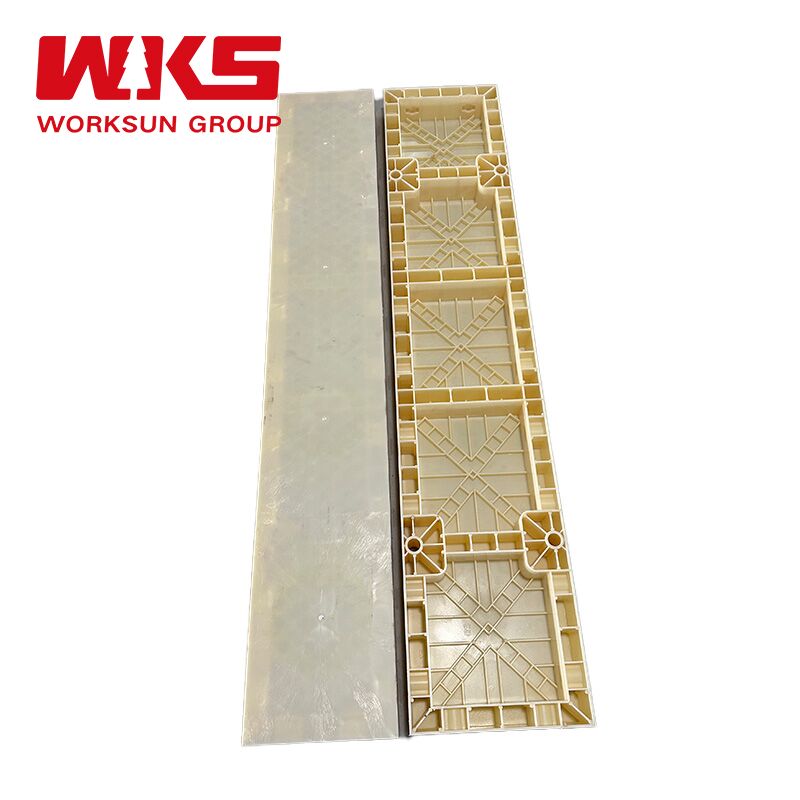

Reusable Plastic Formwork Sheets High Strength Plastic Formwork Board For Civil Engineering Projects

Reusable Plastic Formwork Sheets High Strength Plastic Formwork Board For Civil Engineering Projects

Brand Name: WKS
MOQ: 50 piece
Price: US $55.00 - 70.00/ Square Meter
Payment Terms: T/T
Supply Ability: 1000 piece in 10 days
Detail Information
Place of Origin:
Hebei,China
Certification:
ROHS
Product Name:
Plastic Formwork Sheets
Color:
Black / White
Product Life:
More Than 1500 Times
Loadcapacity:
Supports Up To 30 KN/m²
Surfacefinish:
Smooth Concrete Surface Finish
Size:
150*30*(8-10)cm
Material:
High-density Polypropylene (HDPE)
Panelsize:
Standard Sizes Such As 600mm X 600mm Or Customizable
Reusability:
Reusable Up To 100+ Times
Final Product:
Wall
Packaging Details:
Bundled / Tied in bundles/Optimization of container loading
Highlight:

Reusable Plastic Formwork Sheets

,

Plastic Formwork Sheets High Strength

,

High Strength Plastic Formwork Board

Product Description
High Strength ABS Plastic Formwork Panels for Civil Engineering Projects
Overview

Engineered for demanding construction projects, our ABS Plastic Formwork is a premium, high-impact solution designed to replace traditional wooden and steel formwork. Made from industrial-grade Acrylonitrile Butadiene Styrene, it delivers unmatched durability, surface finish quality, and reusability for concrete forming in walls, columns, beams, and slabs.

Features & Functions
  • Extreme Durability: Exceptional toughness and impact resistance ensure reliable performance under high load and repetitive use, reducing breakage and replacement costs.
  • Superior Concrete Finish: Provides an ultra-smooth, uniform concrete surface, minimizing post-finishing work and saving labor time.
  • High Chemical & Weather Resistance: Resists moisture, alkalis, UV rays, and temperature extremes, maintaining structural integrity in diverse environments.
  • Lightweight & Efficient: Easy to handle, install, and strip, significantly speeding up construction cycles and lowering labor demand.
Key Specifications
  • Material: Virgin ABS (UV-stabilized optional)
  • Standard Size: 1220x2440mm (customizable)
  • Thickness: 12-20mm
  • Reuse Cycles: 80+ times
  • Temperature Range: -30°C to 80°C
Competitive Advantages
  • Longest Service Life: Highest reuse rate among plastic formworks, offering the lowest cost-per-cycle.
  • All-Climate Reliability: Performs consistently in extreme cold or heat without warping or cracking.
  • Sustainable Choice: Fully recyclable, reduces timber dependency, and supports green building certifications.
Technical Features
ItemFeatures
MaterialsABS (Acrylonitrile Butadiene Styrene)
Density1.03g/cm³-1.28g/cm³
Weight14kg/sqm
Max Size1.2*0.6m
Max Casting Slab Thickness300mm
Maximum Load Pressure60KN/sqm for wall & 80KN/sqm for column
Operation Temp-20℃ to +80℃
Surface Hardness94
Product Specifications
NameSize (Length*Width*Height mm)ColorWeight (KG)Material
Panel1200*600*75 mmBlack10.1ABS (Acrylonitrile Butadiene Styrene)
Panel400*600*75 mmBlack3.7ABS (Acrylonitrile Butadiene Styrene)
Panel350*600*75 mmBlack3.4ABS (Acrylonitrile Butadiene Styrene)
Panel300*600*75 mmBlack2.7ABS (Acrylonitrile Butadiene Styrene)
Panel250*600*75 mmBlack2.5ABS (Acrylonitrile Butadiene Styrene)
Panel200*600*75 mmBlack2.2ABS (Acrylonitrile Butadiene Styrene)
Panel180*600*75 mmBlack2.1ABS (Acrylonitrile Butadiene Styrene)
Panel300*300*75 mmBlack1.4ABS (Acrylonitrile Butadiene Styrene)
Panel300*250*75 mmBlack1.3ABS (Acrylonitrile Butadiene Styrene)
Panel300*200*75 mmBlack1.25ABS (Acrylonitrile Butadiene Styrene)
Panel300*150*75 mmBlack0.7ABS (Acrylonitrile Butadiene Styrene)
Panel250*250*75 mmBlack1.13ABS (Acrylonitrile Butadiene Styrene)
Panel250*200*75 mmBlack0.9ABS (Acrylonitrile Butadiene Styrene)
Panel200*200*75 mmBlack0.8ABS (Acrylonitrile Butadiene Styrene)
Panel200*150*75 mmBlack0.6ABS (Acrylonitrile Butadiene Styrene)
Outside Corner Panel250*600*75 mmBlack2.85ABS (Acrylonitrile Butadiene Styrene)
Internal Corner Panel250*100*600*75 mmBlack3.5ABS (Acrylonitrile Butadiene Styrene)
Top Angle Panel250*250*100*75 mmBlack1.5ABS (Acrylonitrile Butadiene Styrene)
Handle-White0.1PA (Polyamides)
Reusable Plastic Formwork Sheets High Strength Plastic Formwork Board For Civil Engineering Projects 0
Frequently Asked Questions
Are you a trading company or a manufacturer?
  • Firstly, we are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company.
  • Secondly, our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 20 years.
How can I get a quotation?
  • If you are a simple concrete pouring project, such as walls, swimming pools, main structures, and basements, and you have your own engineer, you can directly provide us with a bill of materials, and we will provide you with a quotation according to the bill of materials.
  • If you are a concrete pouring project for apartments, residences, villas, etc., and need to use plastic formwork products as a whole, our professional consultants will communicate with you in detail. After you provide us with the engineering architectural drawings and structural drawings, our engineers will develop an application plan for you and provide you with a quotation based on the specific plan.
How long does it usually take to complete the plan and quotation after we provide the engineering architectural drawings and structural drawings?
  • Generally, it takes about 5-8 days to complete the specific plan and detailed quotation.
Can you provide free samples?
  • Yes, we can provide samples. You will need to pay for the shipping cost.
How long is the estimated delivery time after the contract is signed?
  • According to the complexity of the project, it usually takes 30-60 days to complete the stocking. We will estimate a more accurate delivery time for you during the planning and quotation process.
Is the plastic template prone to deformation?
  • If the construction environment where the project is located belongs to long-term high temperature, the increase in temperature of the concrete pouring project may cause slight deformation of the formwork. It is recommended to use all aluminum alloy formwork or steel frame wood formwork system in high temperature areas.
What are the defects of the plastic template system?
  • The load force is too small to complete the construction of large-sized concrete structures; Poor high temperature resistance, slight deformation may occur when used in high-temperature areas.
What is the payment method you require?
  • Payment ≤ 1,000 USD: 100% in advance
  • Payment ≥ 10,000 USD: 30% T/T in advance, balance before shipment
  • Or L/C (Letter of Credit)
Reusable Plastic Formwork Sheets High Strength Plastic Formwork Board For Civil Engineering Projects 1
