Black / White Modular Plastic Formwork Interlocking Plastic Formwork For Concrete Slab

Black / White Modular Plastic Formwork Interlocking Plastic Formwork For Concrete Slab

Brand Name:	WKS
MOQ:	50 piece
Price:	US $55.00 - 70.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Modular Plastic Formwork

Weight:

Lightweight, Typically 2-5 Kg Per Panel

Product Life:

More Than 100 Times

Environmentalimpact:

Recyclable And Eco-friendly

Product Color:

Black / White

Thermalresistance:

Good Thermal Insulation Properties

Surfacefinish:

Smooth Surface For High-quality Concrete Finish

Size:

150*40*8cm

Loadcapacity:

Supports Typical Concrete Pouring Loads

Thickness:

Typically 3-5 Mm

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Black Modular Plastic Formwork

White Modular Plastic Formwork

Interlocking Plastic Formwork For Concrete Slab

Product Description

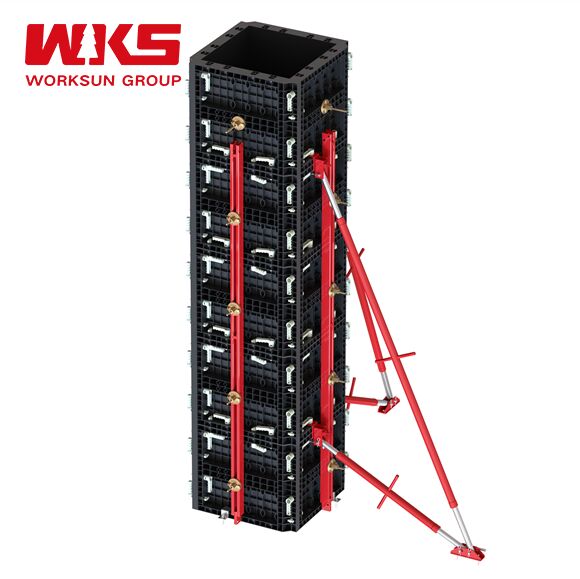

Interlocking ABS Plastic Formwork System Easy Assembly for Concrete Work

A premium construction formwork manufactured from high-grade ABS plastic, engineered for maximum durability and performance. It provides a superior, reusable alternative to traditional timber and steel forms, especially suitable for projects demanding high cycle counts and excellent surface finish.

Key Features & Functions

Outstanding Impact Strength: Superior toughness and crack resistance withstand heavy loads and harsh site handling, reducing breakage and waste.
Ultra-Smooth Finish: Produces a consistent, high-quality concrete surface that often eliminates the need for plastering or additional finishing.
Excellent Chemical & Weather Resistance: Highly resistant to moisture, UV rays, and common construction chemicals, ensuring long-term stability in varied climates.
Lightweight & Efficient: Easy to transport, install, and strip manually, significantly reducing labor time and costs compared to heavier materials.

Main Specifications

Material: Reinforced ABS (Acrylonitrile Butadiene Styrene)
Standard Size: 1220mm x 2440mm (4ft x 8ft) or customizable
Thickness: 12mm, 15mm, 18mm options
Reuse Cycles: 80+ times
Operating Temperature: -30°C to 80°C

Competitive Advantages

Optimal Lifecycle Cost: The highest reuse rate in its class delivers the lowest cost-per-pour over time, offering outstanding ROI.
All-Weather Reliability: Performs consistently in extreme hot or cold environments without warping or becoming brittle.
Eco-Friendly & Sustainable: 100% recyclable, reduces deforestation and construction waste, supporting green building certifications.

Technical Features

Item	Features
Materials	ABS (Acrylonitrile Butadiene Styrene)
Density	1.03g/cm³-1.28g/cm³
Weight	14kg/sqm
Max Size	1.2*0.6m
Max Casting Slab Thickness	300mm
Maximum Load Pressure	60KN/sqm for wall & 80KN/sqm for column
Operation Temp	-20℃ to +80℃
Surface Hardness	94

Detailed Specifications

Name	Size (LengthWidthHeight mm)	Color	Weight (KG)	Material
Panel	120060075 mm	Black	10.1	ABS (Acrylonitrile Butadiene Styrene)
	40060075 mm	Black	3.7	ABS (Acrylonitrile Butadiene Styrene)
	35060075 mm	Black	3.4	ABS (Acrylonitrile Butadiene Styrene)
	30060075 mm	Black	2.7	ABS (Acrylonitrile Butadiene Styrene)
	25060075 mm	Black	2.5	ABS (Acrylonitrile Butadiene Styrene)
	20060075 mm	Black	2.2	ABS (Acrylonitrile Butadiene Styrene)
	18060075 mm	Black	2.1	ABS (Acrylonitrile Butadiene Styrene)
	30030075 mm	Black	1.4	ABS (Acrylonitrile Butadiene Styrene)
	30025075 mm	Black	1.3	ABS (Acrylonitrile Butadiene Styrene)
	30020075 mm	Black	1.25	ABS (Acrylonitrile Butadiene Styrene)
	30015075 mm	Black	0.7	ABS (Acrylonitrile Butadiene Styrene)
	25025075 mm	Black	1.13	ABS (Acrylonitrile Butadiene Styrene)
	25020075 mm	Black	0.9	ABS (Acrylonitrile Butadiene Styrene)
	20020075 mm	Black	0.8	ABS (Acrylonitrile Butadiene Styrene)
	20015075 mm	Black	0.6	ABS (Acrylonitrile Butadiene Styrene)
Outside Corner Panel	25060075 mm	Black	2.85	ABS (Acrylonitrile Butadiene Styrene)
Internal Corner Panel	250100600*75 mm	Black	3.5	ABS (Acrylonitrile Butadiene Styrene)
Top Angle Panel	250250100*75 mm	Black	1.5	ABS (Acrylonitrile Butadiene Styrene)
Handle	-	White	0.1	PA (Polyamides)

Frequently Asked Questions

Are you a trading company or a manufacturer?

Firstly, we are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company. Secondly, our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 20 years.

How can I get a quotation?

If you are a simple concrete pouring project, such as walls, swimming pools, main structures, and basements, and you have your own engineer, you can directly provide us with a bill of materials, and we will provide you with a quotation according to the bill of materials. If you are a concrete pouring project for apartments, residences, villas, etc., and need to use plastic formwork products as a whole, our professional consultants will communicate with you in detail. After you provide us with the engineering architectural drawings and structural drawings, our engineers will develop an application plan for you and provide you with a quotation based on the specific plan.

How long does it usually take to complete the plan and quotation after we provide the engineering architectural drawings and structural drawings?

Generally, it takes about 5-8 days to complete the specific plan and detailed quotation.

Can you provide free samples?

Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time after the contract is signed?

According to the complexity of the project, it usually takes 30-60 days to complete the stocking. We will estimate a more accurate delivery time for you during the planning and quotation process.

Is the plastic template prone to deformation?

If the construction environment where the project is located belongs to long-term high temperature, the increase in temperature of the concrete pouring project may cause slight deformation of the formwork. It is recommended to use all aluminum alloy formwork or steel frame wood formwork system in high temperature areas.

What are the defects of the plastic template system?

The load force is too small to complete the construction of large-sized concrete structures; Poor high temperature resistance, slight deformation may occur when used in high-temperature areas.

What is the payment method you require?

Payment <= 1,000USD, 100% in advance. Payment >= 10,000USD, 30% T/T in advance, balance before shipment. Or L/C.
