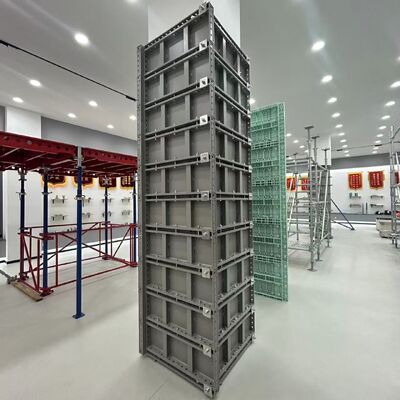

Heavy Duty Steel Frame Formwork System with High Load Resistance and Modular Interlocking for Smooth Surface Finish

Heavy Duty Steel Frame Formwork System with High Load Resistance and Modular Interlocking for Smooth Surface Finish

Brand Name:	WKS
MOQ:	50 piece
Price:	US $97.00 - 130.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Product Name:

Steel Formwork System

Density:

1.03g/cm³-1.28g/cm³

Modularity:

Interlocking System For Easy Assembly And Disassembly

Surfacefinish:

Smooth Surface For High-quality Concrete Finish

Applications:

Used In Construction For Walls, Columns, Beams, And Slabs

Final Product:

Wall

Panelsize:

Typically 600mm X 300mm Or Customizable

Product Life:

More Than 1500 Times

Compatibility:

Compatible With Steel Reinforcement Bars

Environmentalimpact:

Recyclable And Eco-friendly Material

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

High Load Resistance Steel Formwork System

Modular Interlocking Steel Frame Formwork

Smooth Surface Finish Concrete Formwork System

Product Description

Heavy Duty Steel Frame Formwork for High Load Concrete Pouring

This Heavy Duty Steel Frame Formwork System is engineered for demanding concrete forming applications where structural integrity and load resistance are critical. Combining rigid steel frames with durable plywood facing, this system delivers reliable performance for walls, columns, slabs, and other concrete structures in high-rise buildings, infrastructure projects, and industrial facilities.

The robust frame construction withstands high concrete pressures without deformation, ensuring precise dimensional accuracy and a smooth concrete finish. With a modular design that allows quick assembly and disassembly, this system reduces labor time and accelerates project schedules while maintaining consistent quality across multiple pour cycles.

Key Advantages

Superior Load Resistance - Rigid steel frames withstand high concrete pressures without flexing or deflection
Extended Frame Life - Steel construction delivers lasting durability; plywood facing replaceable when worn
Quick-Release Connections - Pin-and-wedge system enables fast assembly without specialized tools
Precision Engineered - Consistent panel dimensions ensure accurate concrete shapes and tight joints
Versatile Configuration - Suitable for straight walls, corners, columns, beams, and custom profiles
Corrosion Protected - Surface coating provides resistance against moisture and job site exposure

Customization Capabilities

We offer full customization to suit your project requirements:

Panel dimensions: Custom sizes and shapes available
Plywood facing: Various thicknesses and surface finishes
Frame coating: Painted, powder coated, or galvanized
Connection hardware: Pin-and-wedge or bolt options
Accessories: Corner profiles, tie rods, walers, supports, and filler panels
Special configurations: Designed for curved walls, tapered columns, or unique structural needs

Technical Specifications

Parameter	Specification
Frame Material	High-Strength Structural Steel
Panel Facing	Premium Plywood with Smooth Surface
Standard Sizes	Wide range available (custom on request)
Frame Construction	Welded steel with reinforced corners
Connection System	Pin & wedge or bolt type
Surface Finish	Corrosion-resistant coating
Panel Replacement	Removable plywood facing
Load Capacity	Engineered for high concrete pressures

System Components

Steel frame panels in various dimensions
Replaceable plywood facing panels
Inner and outer corner profiles
Connecting pins and wedges
Tie rods and tie holders
Adjustable props and shores
Filler strips and custom adapters

Typical Applications

High-rise building core walls and shear walls
Large concrete columns and structural piers
Heavy slab and beam formwork
Bridge piers and abutments
Retaining walls and foundation structures
Industrial facilities and power plants

Quality Assurance

Manufactured from certified high-grade steel
Precision welding for accurate panel alignment
Smooth plywood surface for quality concrete finish
Coating applied for corrosion resistance
Each panel inspected for flatness and dimensional accuracy

Lead Time & Minimum Order

Standard orders: 15-25 days
Custom projects: 25-40 days (depending on complexity)
Factory direct - competitive pricing
