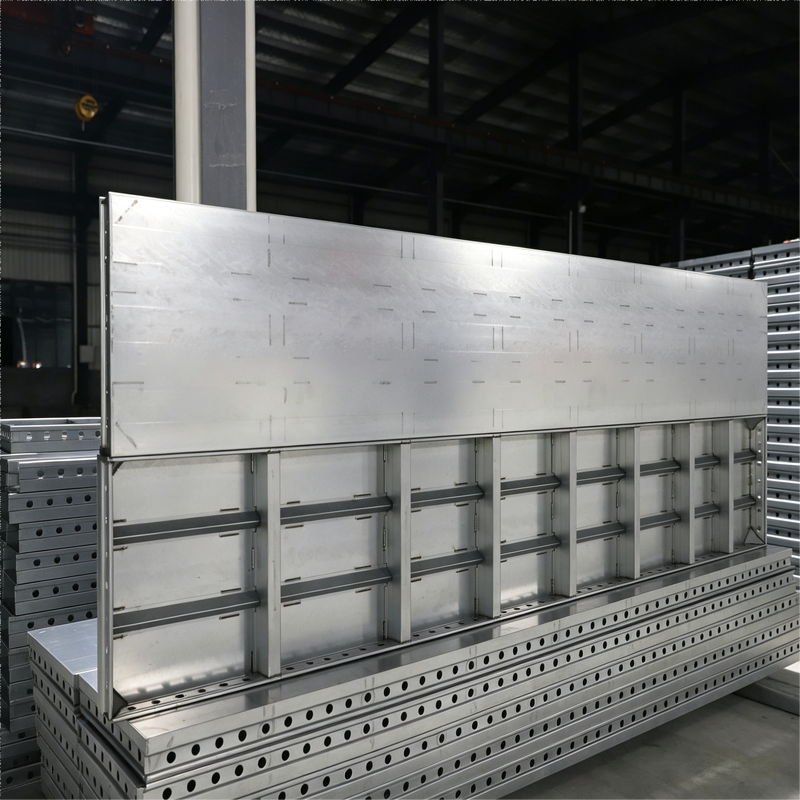

All Steel Panel Formwork System for Heavy Load Concrete Wall and Column

All Steel Panel Formwork System for Heavy Load Concrete Wall and Column

Brand Name:	WKS
MOQ:	50 piece
Price:	US $97.00 - 130.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Product Name:

Steel Formwork System

Density:

1.03g/cm³-1.28g/cm³

Modularity:

Interlocking System For Easy Assembly And Disassembly

Surfacefinish:

Smooth Surface For High-quality Concrete Finish

Applications:

Used In Construction For Walls, Columns, Beams, And Slabs

Final Product:

Wall

Panelsize:

Typically 600mm X 300mm Or Customizable

Product Life:

More Than 1500 Times

Compatibility:

Compatible With Steel Reinforcement Bars

Environmentalimpact:

Recyclable And Eco-friendly Material

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

All Steel Panel Formwork System

Heavy Load Concrete Wall Formwork

Steel Panel Column Formwork System

Product Description

All Steel Panel Formwork System for Heavy Load Concrete Wall and Column

Best Custom Steel Formwork System - Heavy-Duty, 500+ Reuses for Infrastructure Projects

Product Overview

The Steel Formwork System is a heavy-duty concrete forming solution manufactured from high-strength Q235/Q355 steel. Engineered for demanding construction and infrastructure projects, this system delivers exceptional load capacity, dimensional stability, and long service life - ideal for tunnels, bridges, high-rise core walls, and mass concrete pours.

Key Advantages

High Load Capacity (80-120 kN/m²) - Safely handles heavy concrete pours and vibration loads
500+ Reuse Cycles - Exceptional durability delivers lowest long-term cost per use
Zero Deflection - Rigid steel construction ensures precise concrete dimensions
Smooth Concrete Finish - Precisely ground panel surfaces produce plaster-free results
Weather Resistant - Suitable for all climate conditions, from extreme heat to freezing temperatures

Customization Capabilities

All products support project-based customization:

Panel sizes: 600×1200mm, 600×1500mm, 600×1800mm (custom available)
Panel thickness: 4mm, 5mm, 6mm
Steel grade: Q235B, Q355B, or as specified
Surface finish: Epoxy paint, hot-dip galvanized, powder coated
Custom radii for tunnel and curved structures
Non-standard corner and filler panels

Technical Specifications

Parameter	Specification
Material	Q235B / Q355B Steel
Panel Thickness	4mm, 5mm, 6mm
Frame Section	80×80mm / 100×100mm channel
Standard Sizes	600×1200mm, 600×1500mm, 600×1800mm
Weight	55-85 kg/m²
Load Capacity	80-120 kN/m²
Reuse Cycles	500-800 times
Surface Finish	Epoxy paint / Hot-dip galvanized

Applications

High-rise building core walls and shear walls, large concrete columns and piers, tunnel and underground structures, bridge abutments and retaining walls, mass concrete foundations.
