Best Custom Alu Skydeck Formwork Drophead Slab System

Best Custom Alu Skydeck Formwork Drophead Slab System

Brand Name:	WKS
MOQ:	50 piece
Price:	US $85.00 - 90.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Alu Skydeck Formwork System

Aluminum Frame Material:

6061-T6

Material:

Aluminum Alloy

Plywood Panel Thickness:

12mm/15mm/18mm

Aluminum Frame Height:

100mm/120mm

Weight:

24kg/sqm

Max Size Of Slab:

Plywood Panel Material 1800mm*2400mm

Plywood Panel Material:

Birch,poplar,eucalyptus,mixed Or Plastic Plywood

Coating Of Aluminum Frame:

Powder Coating

Feature:

Easily Assembled

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

custom alu skydeck formwork system

drophead slab formwork system

skydeck formwork drophead slab

Product Description

Best Custom Alu Skydeck Formwork Drophead Slab System

Product Overview

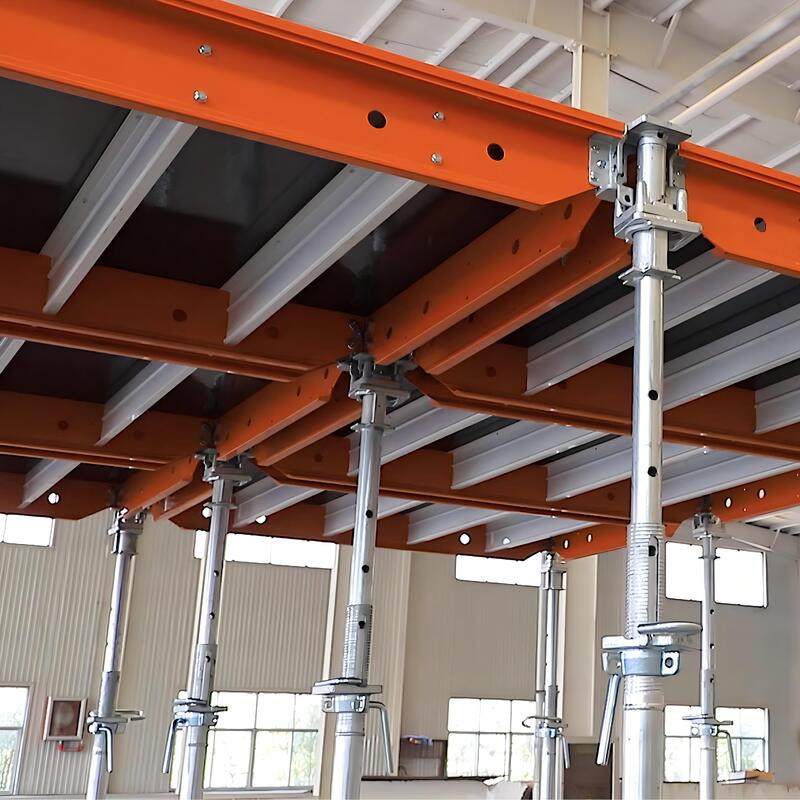

The Alu Skydeck Formwork System is a high-efficiency aluminum panel slab formwork solution widely used in residential and commercial real estate projects. With the drophead early striking mechanism, panels and beams can be removed just one day after concreting, while dropheads continue supporting the slab until it reaches full strength. This dramatically reduces on-site formwork inventory and accelerates floor cycle times.

Key Advantages

Ultra-Lightweight Components - Panel and main beam weigh only ~15.5 kg each; one-person handling, no crane required
Drophead Early Stripping - Formwork removed after 24 hours with a single hammer blow; lowered by 60mm
Low Prop Density - Only 0.29 props per m² of slab - more open workspace and easier material handling
Thick Slab Capability - Supports slabs up to 109 cm thick (150cm main beam + 75cm panel configuration)
Fast & Systematic Assembly - Simple sequence; unskilled workers can learn quickly

Customization Capabilities

All products support project-based customization:

Panel sizes: 150×75cm, 150×50cm, 150×37.5cm, 75×75cm, etc.
Main beam lengths: 375cm, 225cm, 150cm
Aluminum props: Various height ranges (800mm - 6250mm)
Surface finish: Powder coated (standard)

Technical Specifications

Parameter	Specification
System Type	Aluminum Panel Slab Formwork
Panel Sizes	150×75cm / 150×50cm / 150×37.5cm / 75×75cm / 75×50cm / 75×37.5cm
Main Beam Lengths	375cm / 225cm / 150cm
Component Weight	~15.5 kg (panels & main beams)
Area per Support	3.45 m²
Prop Density	0.29 props per m²
Slab Thickness	Up to 109 cm
Drophead Drop	60mm (one hammer blow)
Platform Load	150 kg/m²

Applications

High-rise residential floor slabs, commercial building concrete floors, parking garage slab construction, industrial facility flooring, any project requiring rapid floor cycle times.

Lead Time & MOQ

Standard orders: 15-25 days
Custom projects: 25-40 days (depending on drawings)
Factory direct - competitive pricing
