| Brand Name: | WKS |
| MOQ: | 50 piece |
| Price: | US $85.00 - 90.00/ Square Meter |
| Payment Terms: | T/T |
| Supply Ability: | 1000 piece in 10 days |

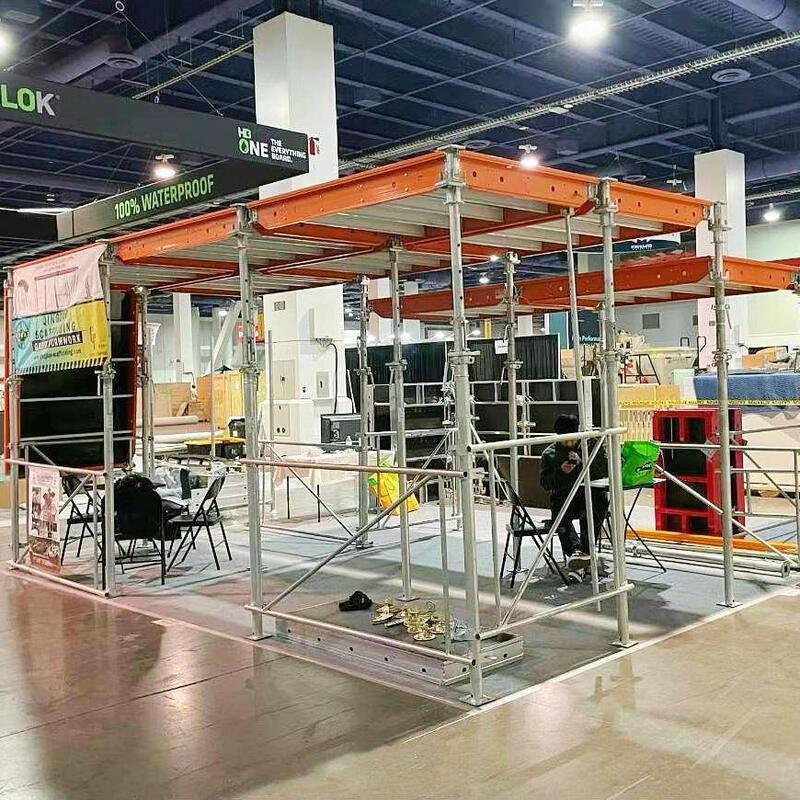

The Alu Skydeck Formwork System is a high-efficiency aluminum panel slab formwork solution widely used in residential and commercial real estate projects. With the drophead early striking mechanism, panels and beams can be removed just one day after concreting, while dropheads continue supporting the slab until it reaches full strength. This dramatically reduces on-site formwork inventory and accelerates floor cycle times.
All products support project-based customization:
| Parameter | Specification |
|---|---|
| System Type | Aluminum Panel Slab Formwork |
| Panel Sizes | 150×75cm / 150×50cm / 150×37.5cm / 75×75cm / 75×50cm / 75×37.5cm |
| Main Beam Lengths | 375cm / 225cm / 150cm |
| Component Weight | ~15.5 kg (panels & main beams) |
| Area per Support | 3.45 m² |
| Prop Density | 0.29 props per m² |
| Slab Thickness | Up to 109 cm |
| Drophead Drop | 60mm (one hammer blow) |
| Platform Load | 150 kg/m² |
High-rise residential floor slabs, commercial building concrete floors, parking garage slab construction, industrial facility flooring, any project requiring rapid floor cycle times.
