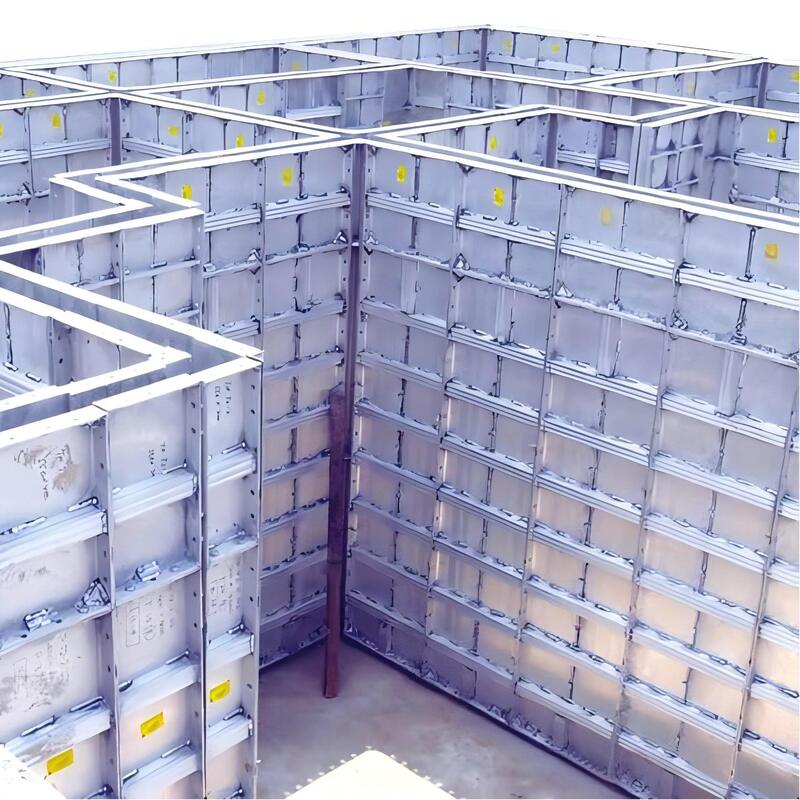

Robust Aluminium Formwork System Silver / Grey Formwork System For Construction

The Aluminum Formwork System is an engineered shuttering solution for high-rise residential and commercial buildings. It utilizes extruded 6061-T6 aluminum panels with a unified support system to enable monolithic pouring of walls, slabs, and beams, delivering a smooth concrete finish and rapid construction cycles.

• Fast Assembly & High Reusability: The pin-and-wedge connection system allows for quick installation by semi-skilled labor, achieving cycle times of 4-7 days per floor. With a lifespan of over 300 cycles, it significantly reduces the cost per use compared to timber formwork.
• Superior Concrete Finish: Precision-extruded components ensure tight joint tolerances, minimizing grout leakage and producing quality surfaces that often eliminate the need for plastering.
• Lightweight & Robust: Panels weigh only 22-25 kg/m² for easy manual handling, yet offer a design concrete pressure capacity of 30-60 kN/m².

• Material: Primary alloy 6061-T6 (Tensile Strength ≥265 MPa)
• Panel Dimensions: Standard widths 100-600 mm (modular), thickness 4 mm, frame height 65 mm
• Load Capacity: Designed for fresh concrete pressures up to 60 kN/m²
• Standards Compliance: Manufactured in accordance with T/CFSA 04-2016 and JGJ386-2016

Our system is engineered with a high percentage of universal components, maximizing cross-project reuse and minimizing custom part costs. It delivers up to 40% savings in on-site labor, accelerates project timelines, and provides a safer working environment, making it the optimal choice for contractors focused on efficiency and total cost of ownership.

• High-Rise Residential: Ideal for shear wall structures where repetitive floor plans allow for maximum cycle efficiency.
• Utility Tunnels: Used in underground infrastructure due to its water-resistance and dimensional stability under high lateral pressure.
• Affordable Housing Projects: Optimized for rapid 4-day or 5-day cycle construction schedules.
• Commercial Basements: Provides high-load support for heavy slab thicknesses and complex column geometries.

• Dimensional Consistency: CNC-machined panels ensure a flatness tolerance within ± 3mm, achieving a plaster-free concrete surface that meets high-end finishing standards.
• Structural Stability: The pin-and-wedge connection system maintains alignment under a concrete pouring pressure of 60KN/m², preventing joint leakage and honeycomb defects.
• Durability & Recycling: The 6061-T6 alloy provides high corrosion resistance in humid site conditions. With a scrap value of up to 30% of the original cost, it offers superior long-term ROI compared to sacrificial timber.
• Operational Efficiency: Weighing approximately 25kg/m², the panels are designed for manual assembly, reducing site labor requirements by 30% compared to conventional steel systems.

Firstly, we are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company. Secondly, our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 32 years.

Provide customers with professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.

Yes, we can provide samples. You will need to pay for the shipping cost.

Architectural and structural drawings of the project.

If you are a simple concrete pouring project, such as walls, swimming pools, main structures, and basements, and you have your own engineer, you can directly provide us with a bill of materials, and we will provide you with a quotation according to the bill of materials. If you are a concrete pouring project for apartments, residences, villas, etc., and need to use plastic formwork products as a whole, our professional consultants will communicate with you in detail. After you provide us with the engineering architectural drawings and structural drawings, our engineers will develop an application plan for you and provide you with a quotation based on the specific plan.

Generally, it takes about 5-8 days to complete the specific plan and detailed quotation.

According to the complexity of the project, it usually takes 30-60 days to complete the stocking. We will estimate a more accurate delivery time for you during the planning and quotation process.

T/T 30% deposit payment before manufacture, and 70% balanced payment against B/L Copy. Or L/C.
